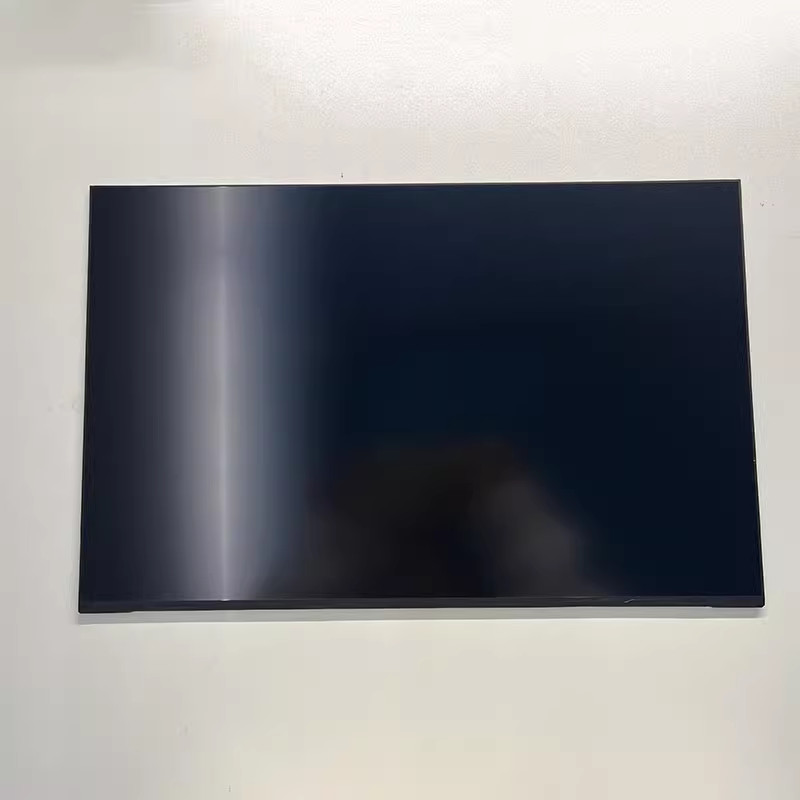

B160UAN01.L AUO 16.0" 1920(RGB)×1200, WUXGA 141PPI 89/89/89/89 (Max.)(CR≥10) INDUSTRIAL LCD DISPLAY

AUO B160UAN01.L Application Details

Basic Detail :	Manufacturer		Model Name	B160UAN01.L
	Panel Type	LTPS TFT-LCD , LCM	Another Name	-
	Panel Size	16.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	Vibration Level	1.5G (14.7 m/s²)

AUO B160UAN01.L Optical Details

Basic Information :	Luminance	-	Contrast Ratio	1200 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	89/89/89/89 (Max.)(CR≥10)	Operating Mode	AHVA, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.60 (Max.)(5/13 points)

AUO B160UAN01.L Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1200 [WUXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.05984×0.17952 mm	Pixel Pitch(W×H)	0.17952×0.17952 mm [141PPI]
Physical Size :	Active Viewing	344.68(W)×215.42(H) mm	Overall Dim.	350.38(W)×226.17(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	2.45/4.6 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:10	Shape Style	Slim (PCBA Bent, T≤3.0mm)
Fixation :	Without
Other Detail :	Mass	-	Surface	Hard coating (3H)

AUO B160UAN01.L Interface Details

Signal Electrical :	Input Current	150mA (Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	0.45W (Max.)	Signal Interface	eDP (2 Lanes)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	STM	MSAK24025P30M	1 pcs	0.5 mm	30 pins

AUO B160UAN01.L Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	15K(Min.) (Hours)
Interface Features :	Position	-	Physical Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current	-		Input Voltage	5.0/12.0/21.0V (Min./Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.68(W)×215.42(H) mm, outline size of 350.38(W)×226.17(H)×2.6(D) mm, with surface treament of Hard coating (3H), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B160UAN01.L can provides 1200:1 transimissive contrast ratio, 89/89/89/89 (Max.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B160UAN01.L utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
