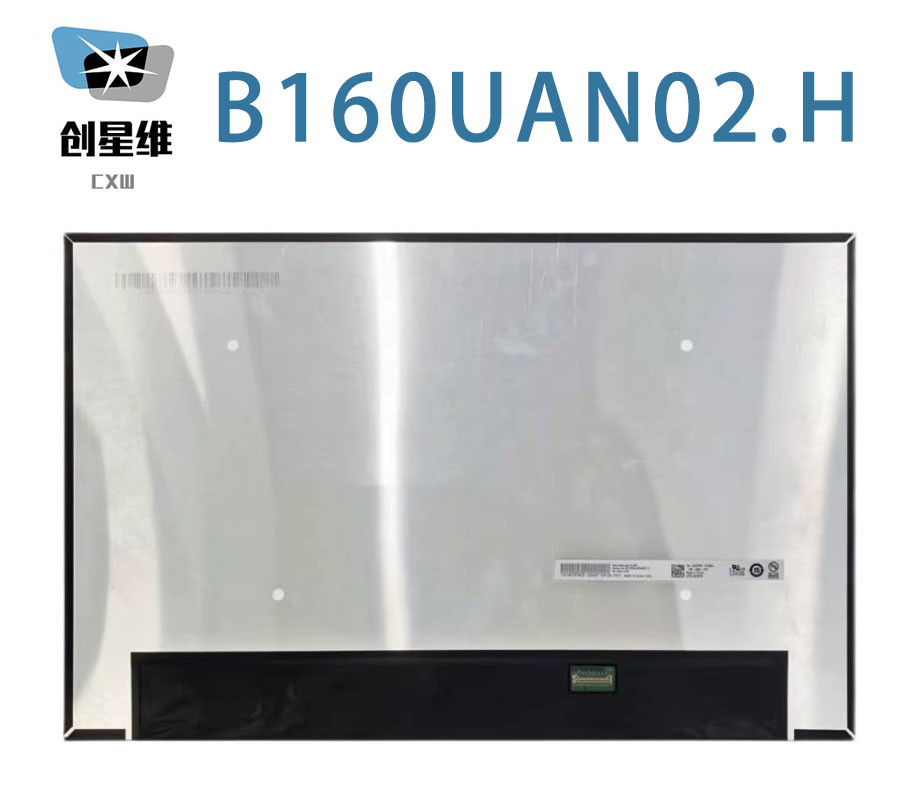

B160UAN02.H AUO 16.0" 1920(RGB)×1200, WUXGA 141PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

B160UAN02.H AUO 16.0" 1920(RGB)×1200, WUXGA 141PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	AUO
Model Number :	B160UAN02.H
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

B160UAN02.H AUO 16.0" 1920(RGB)×1200, WUXGA 141PPI 300 cd/m² INDUSTRIAL LCD DISPLAY

AUO B160UAN02.H Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		B160UAN02.H	a-Si TFT-LCD , LCM	AUOE69B
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

AUO B160UAN02.H Mechanical Features

Screen Size :	16.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×1200, WUXGA	RGB Vertical Stripe	0.05984×0.17952 mm	0.17952×0.17952 mm [141PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	344.68×215.42 mm	-	349.68×225.32 mm	3.0/5.0 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:10	Landscape type	Slim (PCBA Bent, T≤3.0mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	400g (Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Without

AUO B160UAN02.H Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	300 cd/m² (Typ.)	AHVA, Normally Black, Transmissive	1200:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	85/85/85/85 (Typ.)(CR≥10)	25 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	78%	100%	80%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	81%	58%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25/1.53 (Max.)(5/13 points)

AUO B160UAN02.H Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	-	-	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	5.0/12.0/21.0V (Min./Typ./Max.)		-			3.2W (Max.)

AUO B160UAN02.H Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		400mA (Max.)			1.2W (Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	eDP (2 Lanes), eDP1.4			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	I-PEX	20682-030E-02	1 pcs	30 pins	0.4 mm

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.68(W)×215.42(H) mm, outline size of 349.68(W)×225.32(H)×5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 400g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, B160UAN02.H can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B160UAN02.H utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
