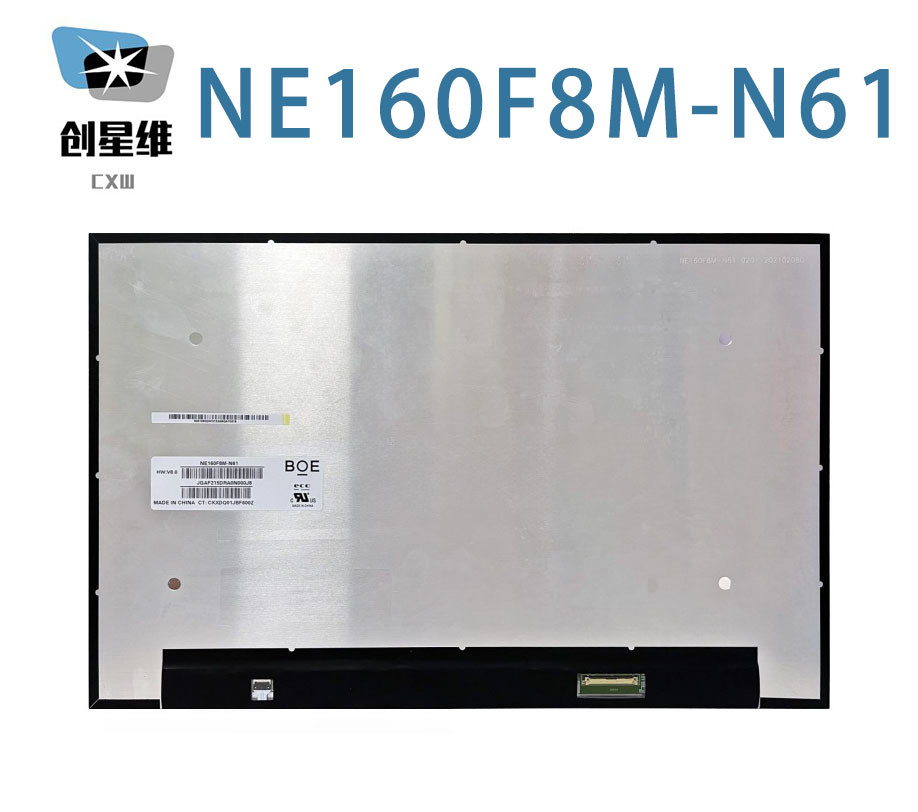

NE160F8M-N61 BOE 16.0" 3072(RGB)×1920 226PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

BOE NE160F8M-N61 Application Details

Basic Info :	Panel Brand		Panel Model	NE160F8M-N61
	Diagonal Size	16.0"	Application
	Panel Type	Oxide TFT-LCD , LCM	Model Alias	BOE09B5
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Reliability :	RoHS State		Vibration Rating	1.5G (14.7 m/s²)

BOE NE160F8M-N61 Mechanical Details

Pixel Features :	Pixel Format	3072(RGB)×1920	Dot Pitch	0.0374×0.1122 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1122×0.1122 mm (H×V) [226PPI]
Mechanical Size :	Display Area	344.678×215.424 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	349.68×224.52 mm (H×V)	Outline Depth	2.6/4.6 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style	Slim (PCBA Bent, T≤3.0mm)
Holes & Brackets :	Without
Other Features :	Weight	330g (Max.)	Surface	Antiglare, Hard coating (3H)

BOE NE160F8M-N61 Optical Details

Basic Information :	Brightness	400 cd/m² (Typ.)	Contrast Ratio	1500:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Optical Mode	AHVA, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.60 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	74%	sRGB	100% coverage
	Adobe RGB	78% coverage	DCI-P3	77% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE NE160F8M-N61 Backlight Details

Back-light Features:	Lamp Shape	6 strings	Lamp Type	WLED	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	11S6P	Position	Edge light type (Bottom side)
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	5.0/12.0/21.0V (Min./Typ./Max.)		Current Input	319mA (Max.)
Driver Electrical :	Consumption	3.83W (Max.)

BOE NE160F8M-N61 Interface Details

Signal Systerm :	eDP (4 Lanes), eDP1.4b, 3.24G/lane			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	318mA (Max.)
Signal Electrical :	Consumption	1.05W (Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	I-PEX	20455-040E-66	0.5 mm	40 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.52(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AHVA, Normally Black, Transmissive LCM product, NE160F8M-N61 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE160F8M-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
