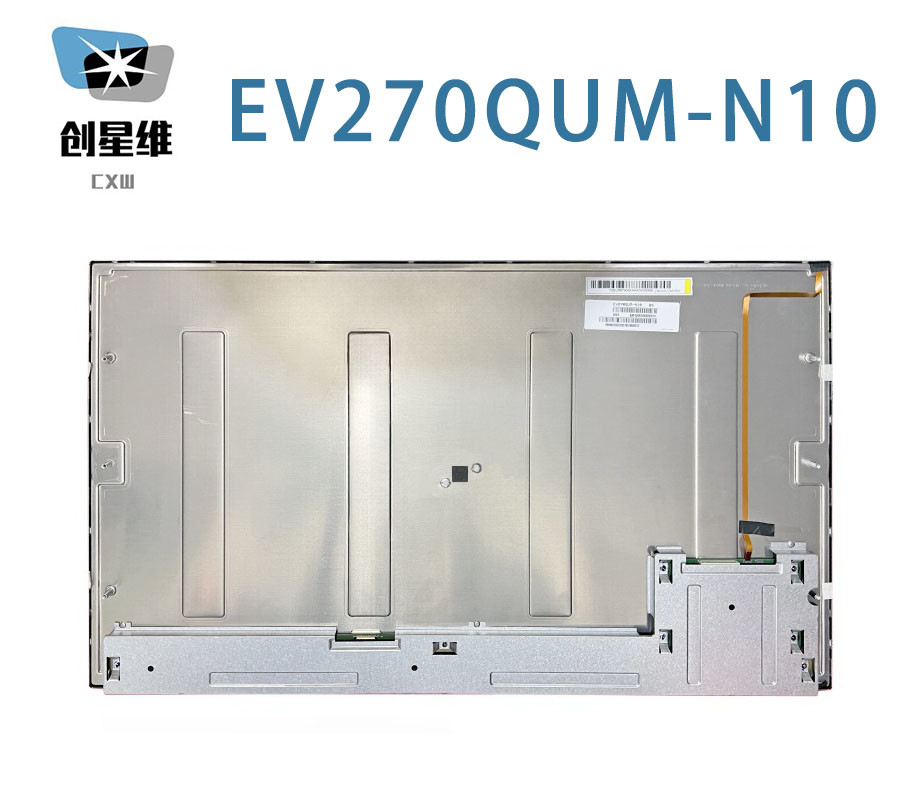

    EV270QUM-N10 BOE 27.0" 3840(RGB)×2160, UHD 163PPI 1000 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : BOE
    Model Number : EV270QUM-N10
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    EV270QUM-N10 BOE 27.0" 3840(RGB)×2160, UHD 163PPI 1000 cd/m² INDUSTRIAL LCD DISPLAY

    BOE EV270QUM-N10 Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    EV270QUM-N10a-Si TFT-LCD , LCM-
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    0 ~ 50 °C-20 ~ 60 °C

    BOE EV270QUM-N10 Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    1000 (Typ.)89/89/89/89 (Typ.)(CR≥10)14 (Typ.)(G to G)
    Best View onDisplay ModeContrast Ratio
    SymmetryADS, Normally Black, Transmissive1000 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    6485K1.07B (8-bit + Hi-FRC)X:0.313; Y:0.329
    1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
    97%100%93%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    91%72%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Variation :1.18/1.25 (Typ./Max.)(9 points)
    Performance :3D TechSunlight VisibilityReflectance
    -Sunlight Readable

    BOE EV270QUM-N10 Mechanical Features

    Panel Size :27.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    3840(RGB)×2160 [UHD]RGB Vertical Stripe0.1554×0.1554 [163PPI]0.0518×0.1554
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    596.736(H) × 335.664(V)-630(H) × 368.2(V)11.48/21.38 (Typ./Max.) mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type16:9 (H:V)
    Mounting :Side mounting holes (4-M3) on left, right bezel, Rear mounting holes (6-M3)
    Other Detail :WeightPanel CoverTreatment
    3.34Kgs (Typ.)-Antiglare (Haze 25%), Hard coating (3H)

    BOE EV270QUM-N10 Backlight Features

    Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
    WLEDEdge light type (Top and Bottom)12S6P×2CN6 strings × 2CN30K(Min.)-
    WLED Electrical :Voltage SupplyCurrent SupplyPower
    33.6/37.2/39.6V (Min./Typ./Max.)110mA (Typ.)55/58W (Typ./Max.)
    Interface Features :PositionBacklight DriverType
    -With LED DriverConnector
    Interface Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    CviLuxCI0114M1HR0-NH2.0 mm14 pins1 pcs
    Driver Electrical :Voltage SupplyCurrent SupplyPower Consumption
    24±2.4V2.2A (Typ.)

    BOE EV270QUM-N10 Interface Features

    Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
    10.0V (Typ.)460/900mA (Typ./Max.)4.6/9.0W (Typ./Max.)
    Interface Features :PositionSignalType
    eDP (4 Lanes), HBR2 (5.4G/lane)Connector
    Connector Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    STMMSAK24025P300.5 mm30 pins1 pcs

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 630(W)×368.2(H)×21.38(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.34Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, EV270QUM-N10 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (NTSC). This product adopted 12S6P×2CN WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 30K hours, With LED Driver. EV270QUM-N10 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.).
