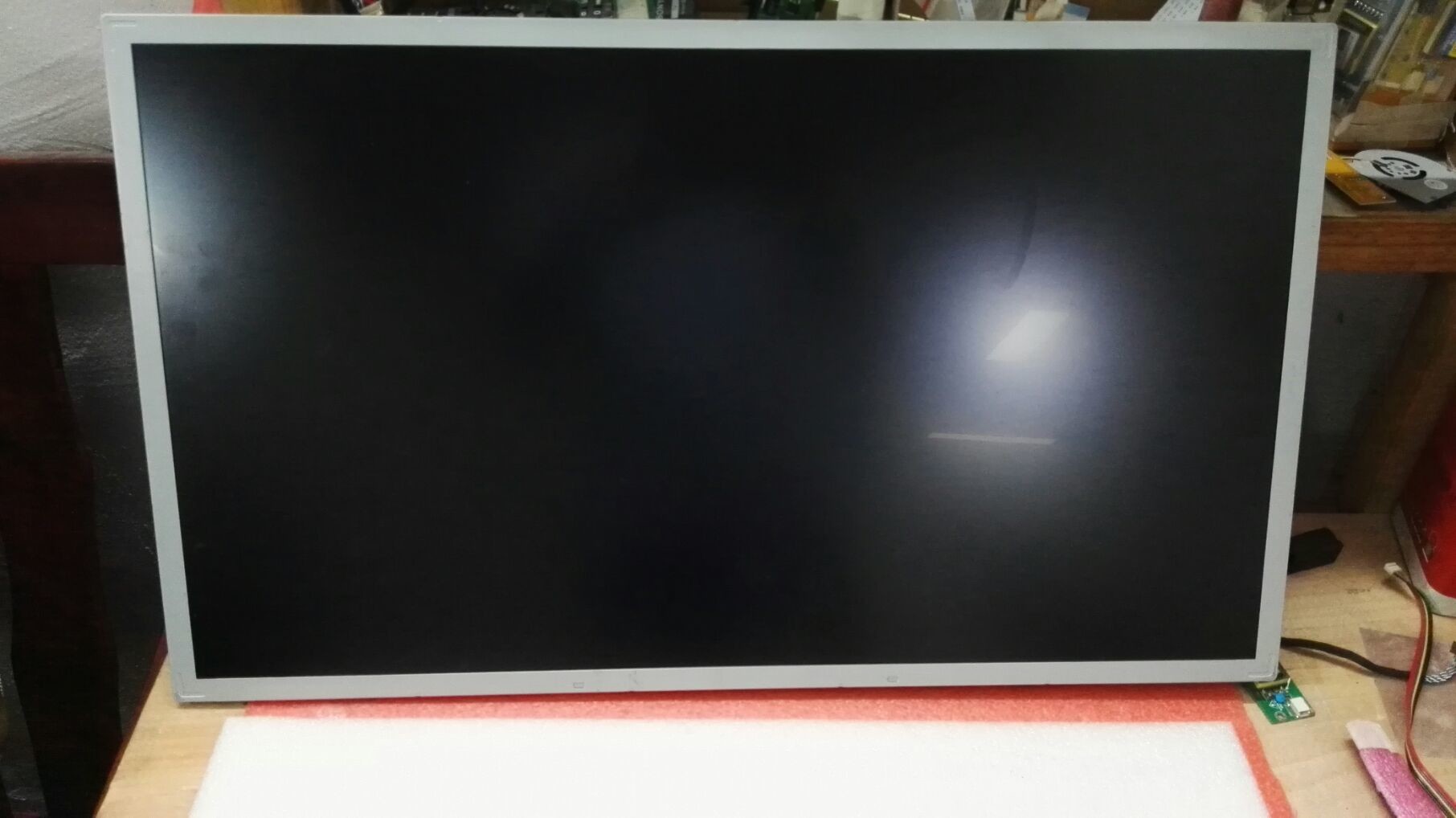

LM270WR9-SSZ1 LG Display 27.0" 3840(RGB)×2160, UHD 163PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM270WR9-SSZ1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LM270WR9-SSZ1 LG Display 27.0" 3840(RGB)×2160, UHD 163PPI 400 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM270WR9-SSZ1 Application Details

Basic Detail :	Manufacturer		Model Name	LM270WR9-SSZ1
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LM270WR9 (SS)(Z1)
	Panel Size	27.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LM270WR9-SSZ1 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	2000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.07B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	94%	sRGB	100% coverage
	Adobe RGB	88% coverage	DCI-P3	96% coverage
	Rec.2020	70% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM270WR9-SSZ1 Mechanical Details

Pixel Features :	Number of Pixel	3840(RGB)×2160 [UHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0518×0.1554 mm	Pixel Pitch(W×H)	0.1554×0.1554 mm [163PPI]
Physical Size :	Active Viewing	596.736(W)×335.664(H) mm	Overall Dim.	608.8(W)×355.3(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	9.7/15.3 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style	3-side borderless
Fixation :	Rear mounting holes
Other Detail :	Mass	2.28/2.40Kgs (Typ./Max.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM270WR9-SSZ1 Interface Details

Signal Electrical :	Input Current	410/513mA (Typ./Max.)		Input Voltage	10V (Typ.)
Signal Electrical :	Consumption	4.1/5.13W (Typ./Max.)	Signal Interface	eDP (4 Lanes), HBR2 (5.4G/lane)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	LS Mtron	GT05Q-30S-H10-MN	1 pcs	0.5 mm	30 pins	EDP-30P4L-031A

LG Display LM270WR9-SSZ1 Lightting Details

Lamp Features:	Lamp Shape	4 strings	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	19S4P	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	95/100mA (Typ./Max.)		Input Voltage	55.7±3.8V
Lamp Electrical :	Consumption	21.2/22.6W (Typ./Max.)
Interface Features :	Position		Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	JST	BM06B-SHJS-TB(HF)	1 pcs	1.0 mm	6 pins	BLE-6PINS-CCAACC
Backlight Driver :	No

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.3(H)×15.3(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.28/2.40Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WR9-SSZ1 can provides 400 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted 19S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WR9-SSZ1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10V (Typ.)
