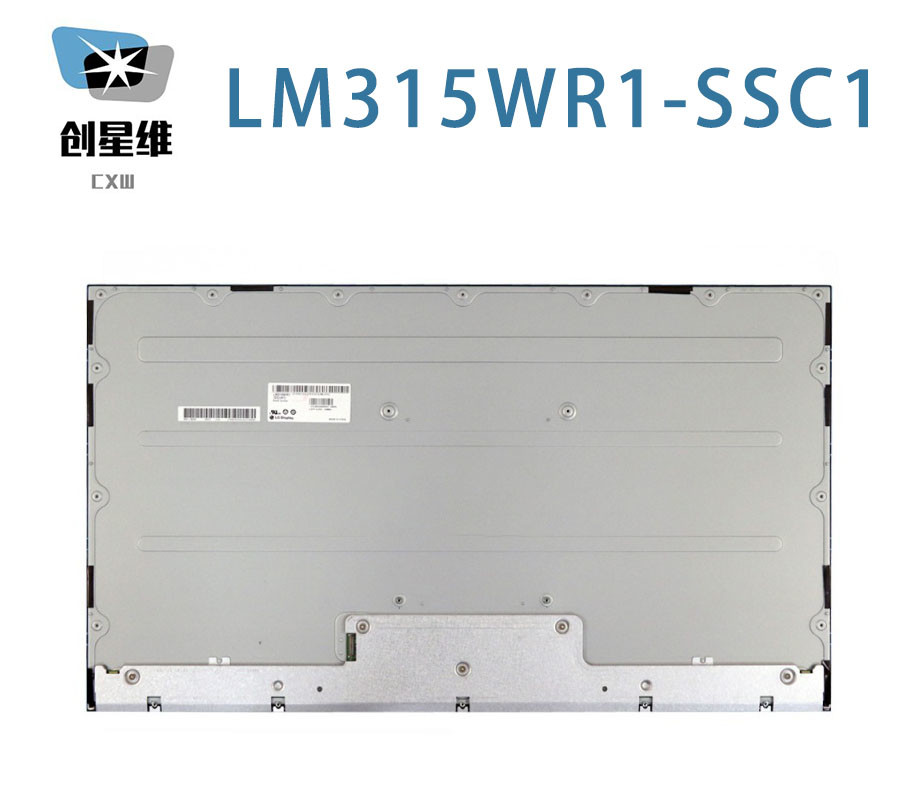

LM315WR1-SSC1 LG Display 32.0" 3840(RGB)×2160, 350 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM315WR1-SSC1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LM315WR1-SSC1 LG Display 32.0" 3840(RGB)×2160, 350 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM315WR1-SSC1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LM315WR1-SSC1	a-Si TFT-LCD , LCM	LM315WR1 (SS)(C1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM315WR1-SSC1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	350 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	1300 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	1.07B (8-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	77%	99%	77%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	80%	57%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

LG Display LM315WR1-SSC1 Mechanical Features

Panel Size :	32.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	3840(RGB)×2160 [UHD]	RGB Vertical Stripe	0.18159×0.18159 [139PPI]	0.06053×0.18159
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	697.306(H) × 392.234(V)	-	710.7(H) × 406.5(V)	10.0/14.7 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	4-side borderless
Mounting :	Rear mounting holes
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	4.55/4.78Kgs (Typ./Max.)	-	Antiglare, Hard coating (3H)

LG Display LM315WR1-SSC1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Bottom side)	19S4P	4 strings	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	55.5±3.8V		110/115mA (Typ./Max.)			24.4/26.1W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	YEONHO	10035WR-H06D	1.0 mm	6 pins	2 pcs	BLE-6PINS-CNAANC

LG Display LM315WR1-SSC1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	10.0V (Typ.)		0.85/1.06A (Typ./Max.)			8.5/10.6W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (4 Lanes), HBR2 (5.4G/lane)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	LS Mtron	GT05Q-30S-H10-MN	0.5 mm	30 pins	1 pcs	EDP-30P4L-050A

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 710.7(W)×406.5(H)×14.7(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 4.55/4.78Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM315WR1-SSC1 can provides 350 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (sRGB). This product adopted 19S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WR1-SSC1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.)
