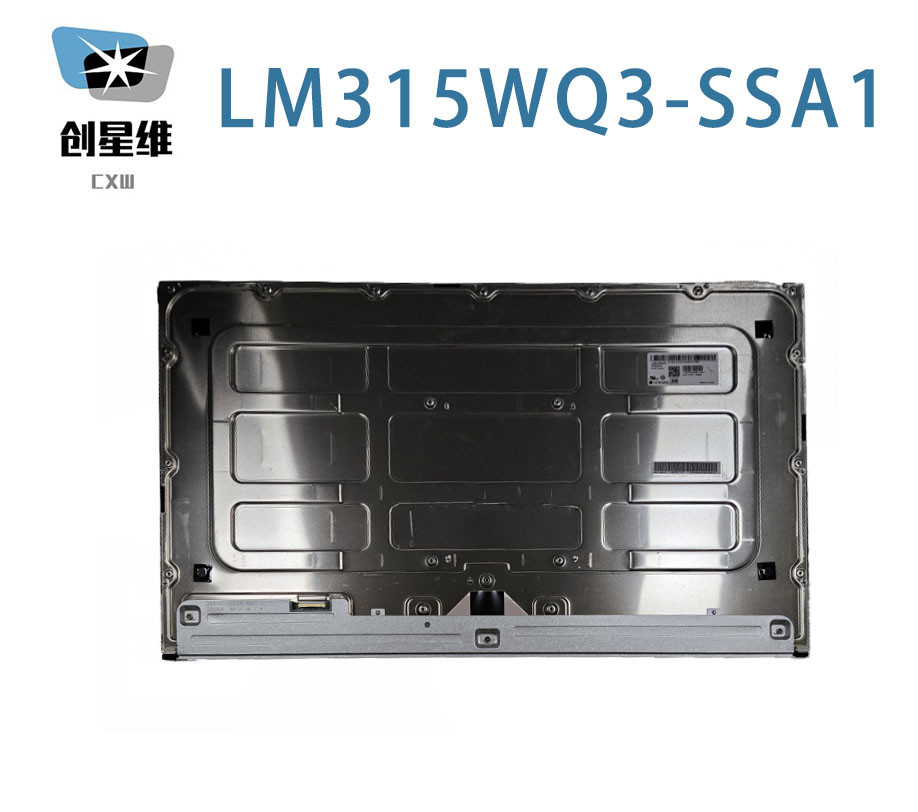

LM315WQ3-SSA1 LG Display 32.0" 2560(RGB)×1440, 450 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM315WQ3-SSA1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LM315WQ3-SSA1 LG Display 32.0" 2560(RGB)×1440, 450 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM315WQ3-SSA1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LM315WQ3-SSA1	a-Si TFT-LCD , LCM	LM315WQ3 (SS)(A1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM315WQ3-SSA1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	450 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	4 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	1.07B (8-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	97%	100%	89%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	96%	73%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

LG Display LM315WQ3-SSA1 Mechanical Features

Panel Size :	32.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	2560(RGB)×1440 [Quad-HD]	RGB Vertical Stripe	0.2724×0.2724 [93PPI]	0.0908×0.2724
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	697.344(H) × 392.256(V)	-	709.15(H) × 417.75(V)	10.9/18.25 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	3-side borderless
Mounting :	Rear mounting holes
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	3.15Kgs (Typ.)	-	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM315WQ3-SSA1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	6 strings × 2CN	6 strings × 2CN	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	17.7±1.2V		103/180mA (Typ./Max.)			27.3/29.2W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	YEONHO	10035WS-H10D	1.0 mm	10 pins	2 pcs	BLE-10PINS-CCCCAACCCC

LG Display LM315WQ3-SSA1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	10.0V (Typ.)		790/987mA (Typ./Max.)			7.9/9.9W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (8 Lanes), HBR2 (5.4G/lane)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	I-PEX	20525-060E-01	0.4 mm	60 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.344(W)×392.256(H) mm, outline size of 709.15(W)×417.75(H)×18.25(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.15Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM315WQ3-SSA1 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 4 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted 6 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM315WQ3-SSA1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.)
