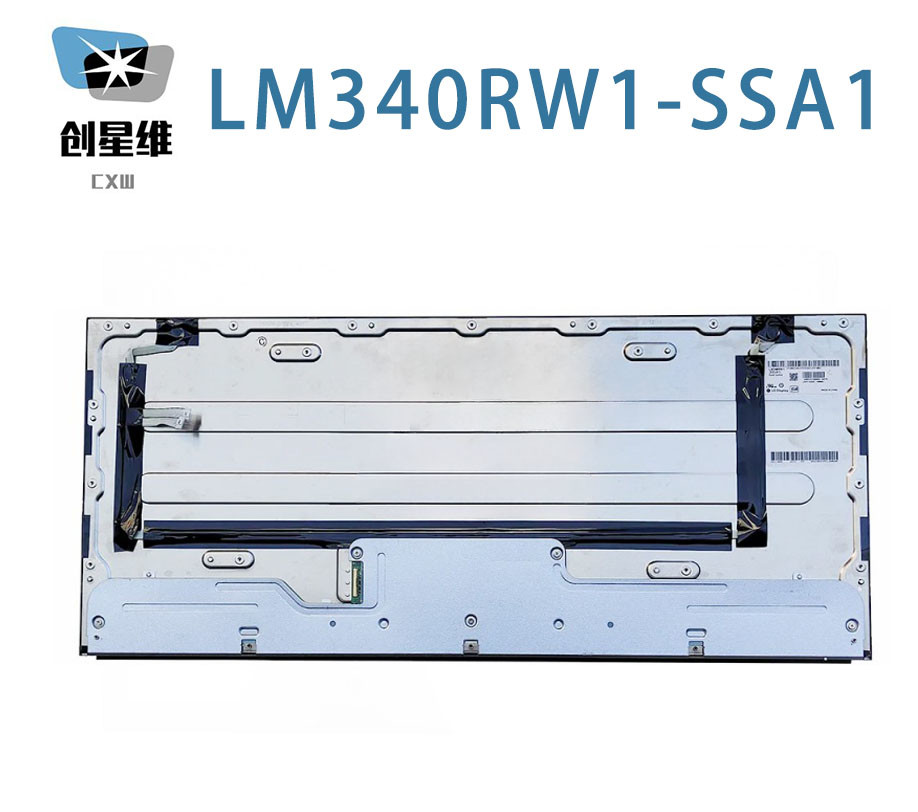

LM340RW1-SSA1 LG Display 5120(RGB)×2160, 450 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM340RW1-SSA1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LM340RW1-SSA1 LG Display 5120(RGB)×2160, 450 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM340RW1-SSA1 Application Details

Basic Detail :	Manufacturer		Model Name	LM340RW1-SSA1
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LM340RW1 (SS)(A1)
	Panel Size	34 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LM340RW1-SSA1 Optical Details

Basic Information :	Luminance	450 cd/m² (Typ.), HDR600	Contrast Ratio	1200 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.07B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	96%	sRGB	100% coverage
	Adobe RGB	87% coverage	DCI-P3	98% coverage
	Rec.2020	72% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM340RW1-SSA1 Mechanical Details

Pixel Features :	Number of Pixel	5120(RGB)×2160 [WUHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0518×0.1554 mm	Pixel Pitch(W×H)	0.1554×0.1554 mm [163PPI]
Physical Size :	Active Viewing	795.648(W)×335.664(H) mm	Overall Dim.	812(W)×355(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	15.7 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	21:9	Shape Style	4-side borderless
Fixation :	Rear mounting holes
Other Detail :	Mass	3.58Kgs (Typ.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM340RW1-SSA1 Interface Details

Signal Electrical :	Input Current	1.06/1.33A (Typ./Max.)		Input Voltage	10.0V (Typ.)
Signal Electrical :	Consumption	10.6/13.3W (Typ./Max.)	Signal Interface	eDP (8 Lanes), HBR2 (5.4G/lane)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	I-PEX	20525-060E-01	1 pcs	0.4 mm	60 pins

LG Display LM340RW1-SSA1 Lightting Details

Lamp Features:	Lamp Shape	6 strings × 2CN	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	7S6P×2CN	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	85/90mA (Typ./Max.)		Input Voltage	40.3±1.4V
Lamp Electrical :	Consumption	41.1/42.6W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	YEONHO	12507HS-H10G1	2 pcs	1.25 mm	10 pins	BLE-10PINS-CCCNAANCCC
Backlight Driver :	No

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 795.648(W)×335.664(H) mm, outline size of 812(W)×355(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.58Kgs (Typ.). As a IPS, Normally Black, Transmissive LCM product, LM340RW1-SSA1 can provides 450 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 98% (DCI-P3). This product adopted 7S6P×2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM340RW1-SSA1 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 10.0V (Typ.).
