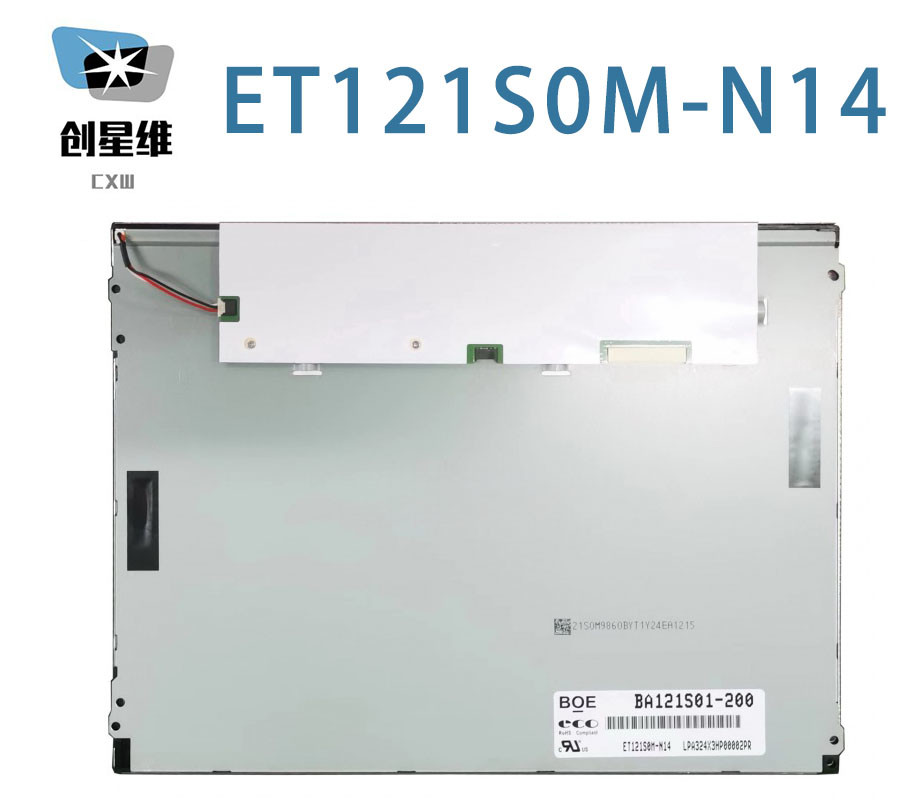

    ET121S0M-N14 BOE 12.1" 800(RGB)×600, 400 cd/m² 80/80/65/75 INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : BOE
    Model Number : ET121S0M-N14
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    ET121S0M-N14 BOE 12.1" 800(RGB)×600, 400 cd/m² 80/80/65/75 INDUSTRIAL LCD DISPLAY

    BOE ET121S0M-N14 Application Details

    Basic Information :BrandModelET121S0M-N14
    TypeLCM a-Si TFT-LCDUsed For


    Screen Size12.1"AliasBA121S01-200
    Environment :Storage Temp.-30 ~~ 80 °COperating Temp.-20 ~~ 70 °C
    RoHSVibration1.5G (14.7 m/s²)

    BOE ET121S0M-N14 Mechanical Details

    Pixel Features :Resolution800(RGB)×600, SVGADot Pitch(mm)0.1025×0.3075 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.3075×0.3075 (H×V) [82PPI]
    Mechanical Size :Active Area(mm)246(H) × 184.5(V)Bezel Area(mm)249.05(H) × 188.30(V)
    Outline Dim.(mm)279(H) × 209(V)Depth(mm)5.73/9.6 (Typ./Max.)
    Outline Features :Form StyleFlat RectangleOutline Shape
    Aspect Ratio4:3 (H:V)OrientationLandscape type
    Mounting :Face mounting holes (6-Φ3.4) on left, right bezel
    Other Spec :Weight630g (Max.)TreatmentAntiglare (Haze 25%)

      BOE ET121S0M-N14 Optical Details

      Basic Information :Luminance(cd/m²)400 (Typ.)Contrast Ratio800:1 (Typ.) (Transmissive)
      Viewing Angle80/80/65/75 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
      Best View on12 o'clockResponse(ms)30 (Typ.)(Tr+Td)
      Color Performance :White CoordinateX:0.313; Y:0.329Display Colors262K/16.7M (6-bit / 6-bit + Hi-FRC)
      Color Temperature6485KWhite Uniformity1.25/1.33 (Typ./Max.)(9 points)
      1931 Color Gamut :NTSC Ratio57%sRGB80% coverage
      Adobe RGB59% coverageDCI-P359% coverage
      Rec.202042% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

      BOE ET121S0M-N14 Interface Details

      Signal Electrical :Voltage Supply3.3V (Typ.)Current Supply90.6/122.4/153.4mA (Typ./Max.)
      Consumption0.299/0.403/0.506W (Min./Typ./Max.)
      Signal Type :LVDS (1 ch, 6/8-bit)Signal Voltage-
      Interface Features :PositionTypeConnector
      Interface Detail :BrandModelQuantityPinsPitchPin Configuration
      STMMSB24013P20HA1 pcs20 pins1.0 mm

        BOE ET121S0M-N14 Backlight Details

        Backlight Features:Shape-TypeWLEDPositionEdge light type
        Replacement-Quantity-Life Time30K(Min.) (Hours)
        Interface Features :Position-TypeConnector
        Interface Detail :BrandModelQuantityPinsPitchPin Configuration
        STMMSB24038P51 pcs5 pins1.25 mm
        Backlight Driver :With LED Driver
        Driver Electrical :Voltage Supply12.0±0.5VCurrent Supply352.4/367/383mA (Min./Typ./Max.)
        Consumption4.4/4.8W (Typ./Max.)

        whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 279(W)×209(H)×9.6(D) mm, viewing area size of 249.05(W)×188.30(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 630g (Max.). As a TN, Normally White, Transmissive LCM product, ET121S0M-N14 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. ET121S0M-N14 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
