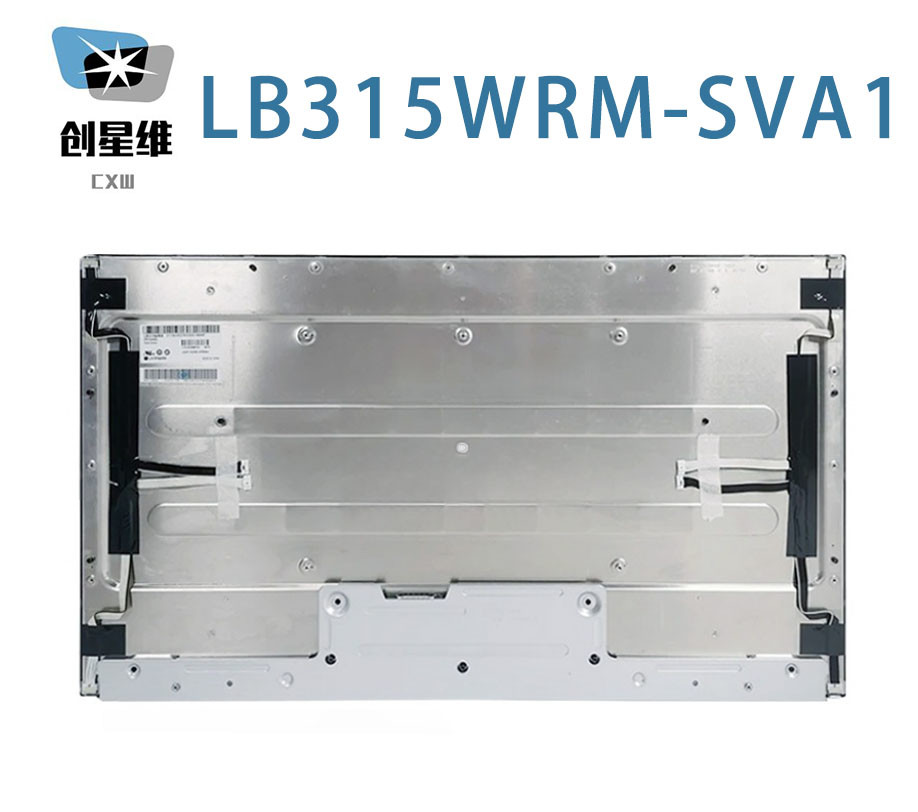

LB315WRM-SVA1 LG Display 32.0" 3840(RGB)×2160, UHD 139PPI 1000 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LB315WRM-SVA1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LB315WRM-SVA1 LG Display 32.0" 3840(RGB)×2160, UHD 139PPI 1000 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LB315WRM-SVA1 Application Details

Basic Detail :	Manufacturer		Model Name	LB315WRM-SVA1
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LB315WRM (SV)(A1)
	Panel Size	32.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LB315WRM-SVA1 Optical Details

Basic Information :	Luminance	1000 cd/m² (Typ.)	Contrast Ratio	1300 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.07B (10-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	82%	sRGB	100% coverage
	Adobe RGB	81% coverage	DCI-P3	85% coverage
	Rec.2020	61% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity

LG Display LB315WRM-SVA1 Mechanical Details

Pixel Features :	Number of Pixel	3840(RGB)×2160 [UHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.06053×0.18159 mm	Pixel Pitch(W×H)	0.18159×0.18159 mm [139PPI]
Physical Size :	Active Viewing	697.306(W)×392.234(H) mm	Overall Dim.	730.7(W)×425.2(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	23 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style
Fixation :	Rear mounting holes
Other Detail :	Mass	6.00/6.30Kgs (Typ./Max.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LB315WRM-SVA1 Interface Details

Signal Electrical :	Input Current	1.05/1.31A (Typ./Max.)		Input Voltage	10V (Typ.)
Signal Electrical :	Consumption	10.5/13.1W (Typ./Max.)	Signal Interface	V-by-One 8 lane
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	LS Mtron	GT05S-51S-H38	1 pcs	0.5 mm	51 pins

LG Display LB315WRM-SVA1 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Direct light type
Lamp Features:	Exchange	-	Amount	-	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	85/90mA (Typ./Max.)		Input Voltage	28.0±1.0V
Lamp Electrical :	Consumption	71.4/74W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	YEONHO	12507HS-H10G1	4 pcs	1.25 mm	10 pins
Backlight Driver :	No

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 730.7(W)×425.2(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 6.00/6.30Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LB315WRM-SVA1 can provides 1000 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 30K hours, external backlight driver is additionally needed. LB315WRM-SVA1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 10V (Typ.)
