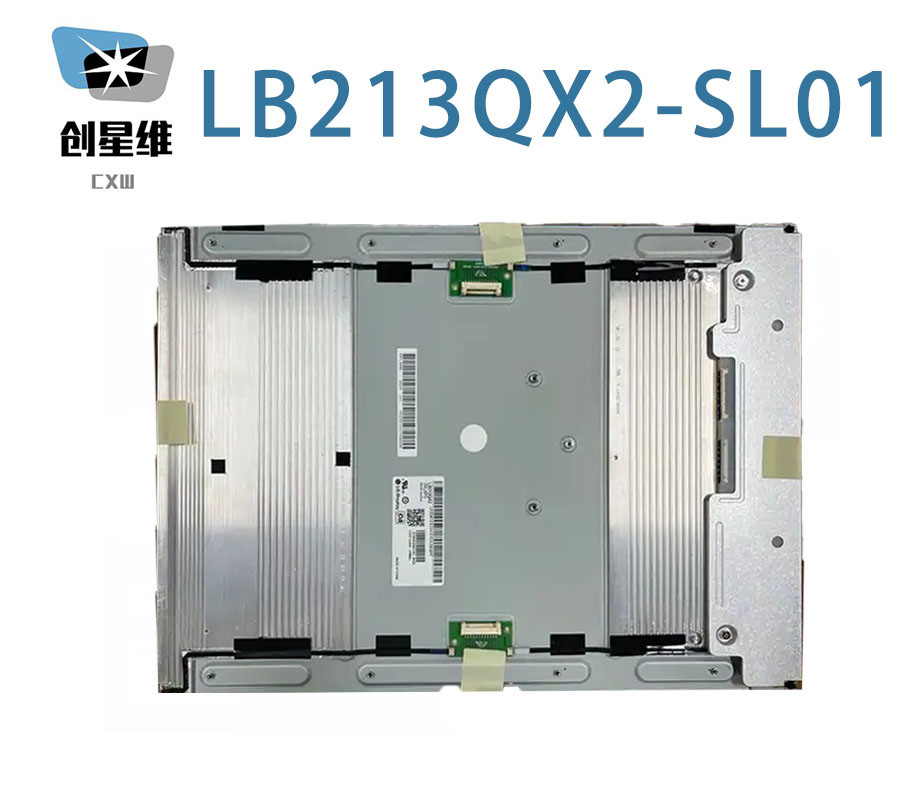

    LB213QX2-SL01 LG Display 21.3"1536(RGB)×2048, 1100 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LB213QX2-SL01
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    LB213QX2-SL01 LG Display 21.3"1536(RGB)×2048, 1100 cd/m² INDUSTRIAL LCD DISPLAY

    LG Display LB213QX2-SL01 Application Features

    Basic Information :BrandModelTypeModel Alias
    LB213QX2-SL01a-Si TFT-LCD , LCMLB213QX2 (SL)(01)
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    0 ~ 50 °C-20 ~ 60 °C

    LG Display LB213QX2-SL01 Mechanical Features

    Panel Size :21.3 inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    1536(RGB)×2048, QXGARGB Vertical Stripe0.0705×0.2115 mm0.2115×0.2115 mm [120PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    324.864×433.152 mm-336×453.1 mm18.5 (Max.) mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle3:4 (W : H)Portrait type
    Fixation :Rear mounting holes
    Other Features :Panel CoverWeightSurface
    -2.70/2.84Kgs (Typ./Max.)Antiglare, Hard coating (3H)

    LG Display LB213QX2-SL01 Optical Features

    Basic Information :BrightnessOperating ModeContrast Ratio
    1100 cd/m² (Typ.)IPS, Normally Black, Transmissive1800:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    89/89/89/89 (Typ.)(CR≥10)Symmetry25 (Typ.)(G to G) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    7336K1.07B (10-bit)X:0.299; Y:0.325
    1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
    76%98%76%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    79%57%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Luminance Variation :1.33 (Max.)(9 points)
    Performance :3D TypeOutdoor VisibilityReflectance
    -Sunlight Readable

    LG Display LB213QX2-SL01 Interface Features

    Signal Electrical :Current InputVoltage InputConsumption
    0.451/0.564A (Typ./Max.)12.0V (Typ.)5.42/6.77W (Typ./Max.)
    Interface Features :PositionTypeInterface
    -ConnectorLVDS (4 ch, 10-bit)
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    LS MtronGT05S-51S-H381 pcs0.5 mm51 pins
    JAEFI-RXE41S-HF1 pcs0.5 mm41 pins

    LG Display LB213QX2-SL01 Backlight Features

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    WLEDEdge light type--50K(Min.)-
    WLED Electrical :Current InputVoltage InputConsumption
    50mA (Typ.)62±2.2V37.2/38.5W (Typ./Max.)
    Interface Features :PositionTypeWLED Driver
    -ConnectorNo
    Interface DetailBrandModelAmountPin PitchPinsPin Assignment
    YEONHO20037WR-H122 pcs2.0 mm12 pins

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 324.864(W)×433.152(H) mm, outline size of 336(W)×453.1(H)×18.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.70/2.84Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LB213QX2-SL01 can provides 1100 cd/m² display brightness 1800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LB213QX2-SL01 utilizes LVDS (4 ch, 10-bit) as it's signal inputting systerm, which connected by 92 pins Connector with power supply voltage of 12.0V (Typ.).
