MV238FHM-N51 BOE 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	MV238FHM-N51
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

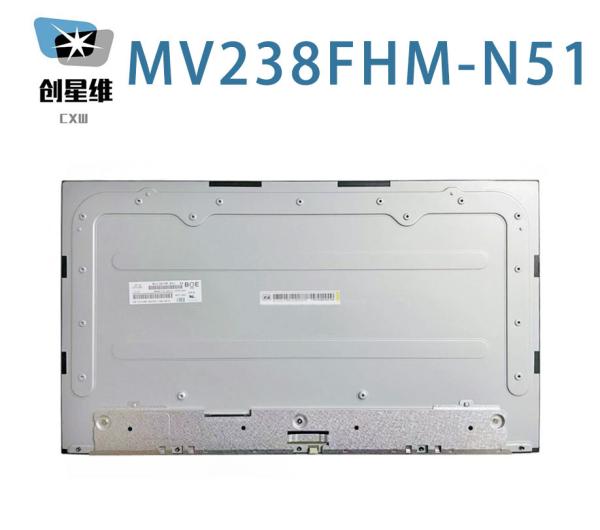

MV238FHM-N51 BOE 23.8" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

BOE MV238FHM-N51 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		MV238FHM-N51	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

BOE MV238FHM-N51 Mechanical Features

Screen Size :	23.8"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.0915×0.2745 mm	0.2745×0.2745 mm [92PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	527.04×296.46 mm	-	534.9×306.95 mm	7.4/14 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	4-side borderless
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	2.20Kgs (Typ.)	-	Antiglare (Haze 25%), Hard coating (3H)
Holes & Brackets :	Rear mounting holes (22-M3)

BOE MV238FHM-N51 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	250 cd/m² (Typ.)	ADS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	80%	100%	78%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	83%	60%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.33 (Max.)(9 points)

BOE MV238FHM-N51 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type (Bottom side)	30K(Min.)	4 strings	4 strings	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	36.4/37.7V (Typ./Max.)		56mA (Typ.)			8.15/8.44W (Typ./Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Connector
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	JST	BM06B-SHJS-TB(HF)	1 pcs	6 pins	1.0 mm	BLE-6PINS-CCAACN

BOE MV238FHM-N51 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	5.0V (Typ.)		550/610A (Typ./Max.)			2.75/3.05W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (2 ch, 8-bit)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	UJU	IS100-L30O-C23	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-160A

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 527.04(W)×296.46(H) mm, outline size of 534.9(W)×306.95(H)×14(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.20Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV238FHM-N51 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV238FHM-N51 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
