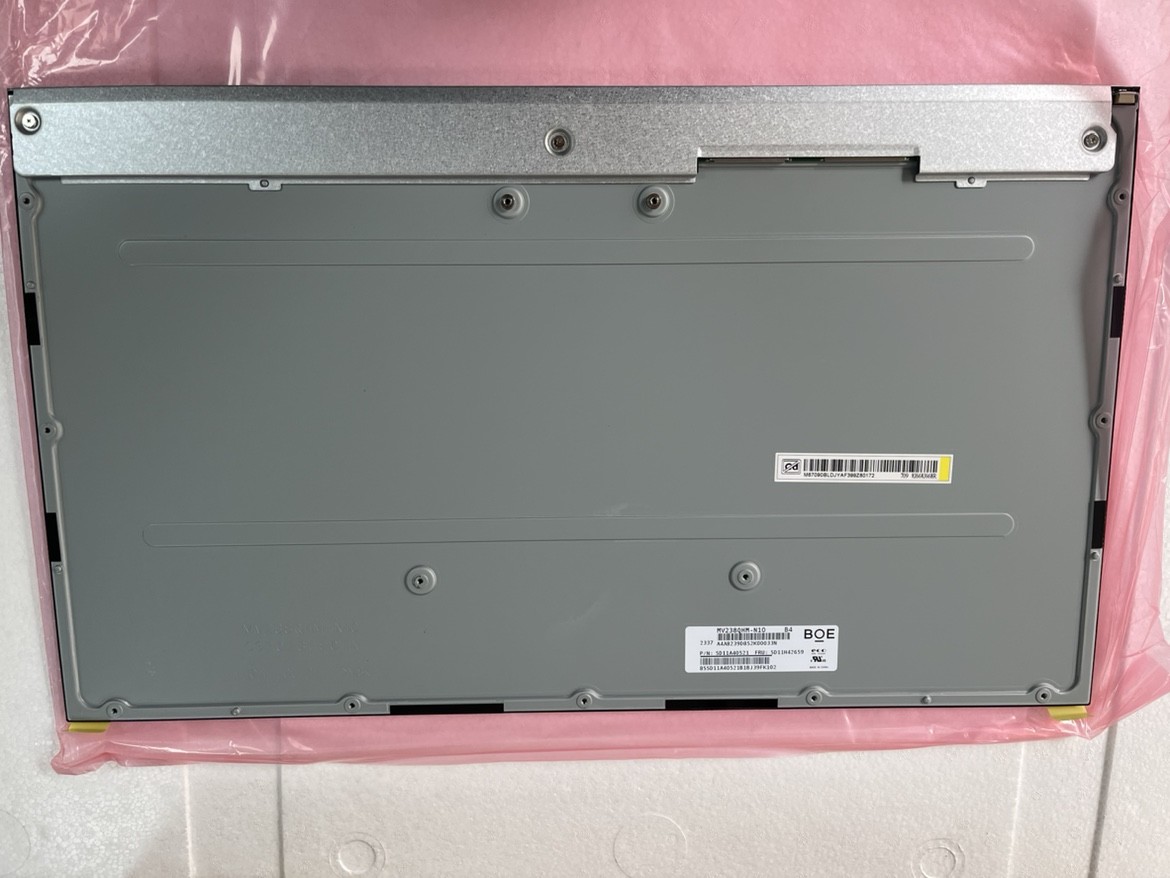

    MV238QHM-N10 BOE 23.8" 2560(RGB)×1440, 300 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : BOE
    Model Number : MV238QHM-N10
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    MV238QHM-N10 BOE 23.8" 2560(RGB)×1440, 300 cd/m² INDUSTRIAL LCD DISPLAY

    BOE MV238QHM-N10 Application Details

    Basic Detail :ManufacturerModel NameMV238QHM-N10
    Panel Typea-Si TFT-LCD , LCMAnother Name-
    Panel Size23.8 inchDesigned For



    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C
    Vibration Level1.5G (14.7 m/s²)

    BOE MV238QHM-N10 Optical Details

    Basic Information :Luminance300 cd/m² (Typ.)Contrast Ratio1000 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed14 (Typ.)(G to G) (ms)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Operating ModeADS, Normally Black, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.7M (6-bit + Hi-FRC)
    Color Temperature6485KWhite Uniformity1.33 (Max.)(9 points)
    1931 Color Gamut :NTSC Ratio73%sRGB100% coverage
    Adobe RGB76% coverageDCI-P376% coverage
    Rec.202055% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    BOE MV238QHM-N10 Mechanical Details

    Pixel Features :Number of Pixel2560(RGB)×1440 [Quad-HD]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.0686×0.2058 mmPixel Pitch(W×H)0.2058×0.2058 mm [123PPI]
    Physical Size :Active Viewing526.848(W)×296.352(H) mmOverall Dim.535(W)×313(H) mm
    Bezel Opening-Overall Depth8.7/13.2 (Typ./Max.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:9Shape Style3-side borderless
    Fixation :Rear mounting holes (13-M3)
    Other Detail :Mass2.22Kgs (Typ.)SurfaceAntiglare (Haze 25%), Hard coating (3H)

    BOE MV238QHM-N10 Interface Details

    Signal Electrical :Input Current900/1600mA (Typ./Max.)Input Voltage5.0V (Typ.)
    Consumption4.5/8.0W (Typ./Max.)Signal InterfaceLVDS (4 ch, 8-bit)
    Interface Features :PositionPhysical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    UJCPM.LVS.S0405051011 pcs0.5 mm51 pins
    UJUIS100-L30O-C231 pcs1.0 mm30 pins

    BOE MV238QHM-N10 Lightting Details

    Lamp Features:Lamp Shape-Lamp TypeWLEDPositionEdge light type
    Exchange-Amount-Life30K(Min.) (Hours)
    Lamp Electrical :Input Current85±3mAInput Voltage48.8/51.52V (Typ./Max.)
    Consumption16.6/17.5W (Typ./Max.)
    Interface Features :PositionPhysical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    JSTBM06B-SHJS-TB(HF)1 pcs1.0 mm6 pinsBLE-6PINS-CCAACC
    Backlight Driver :No

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 526.848(W)×296.352(H) mm, outline size of 535(W)×313(H)×13.2(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.22Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV238QHM-N10 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. MV238QHM-N10 utilizes LVDS (4 ch, 8-bit) as it's signal inputting systerm, which connected by 81 pins Connector with power supply voltage of 5.0V (Typ.)
