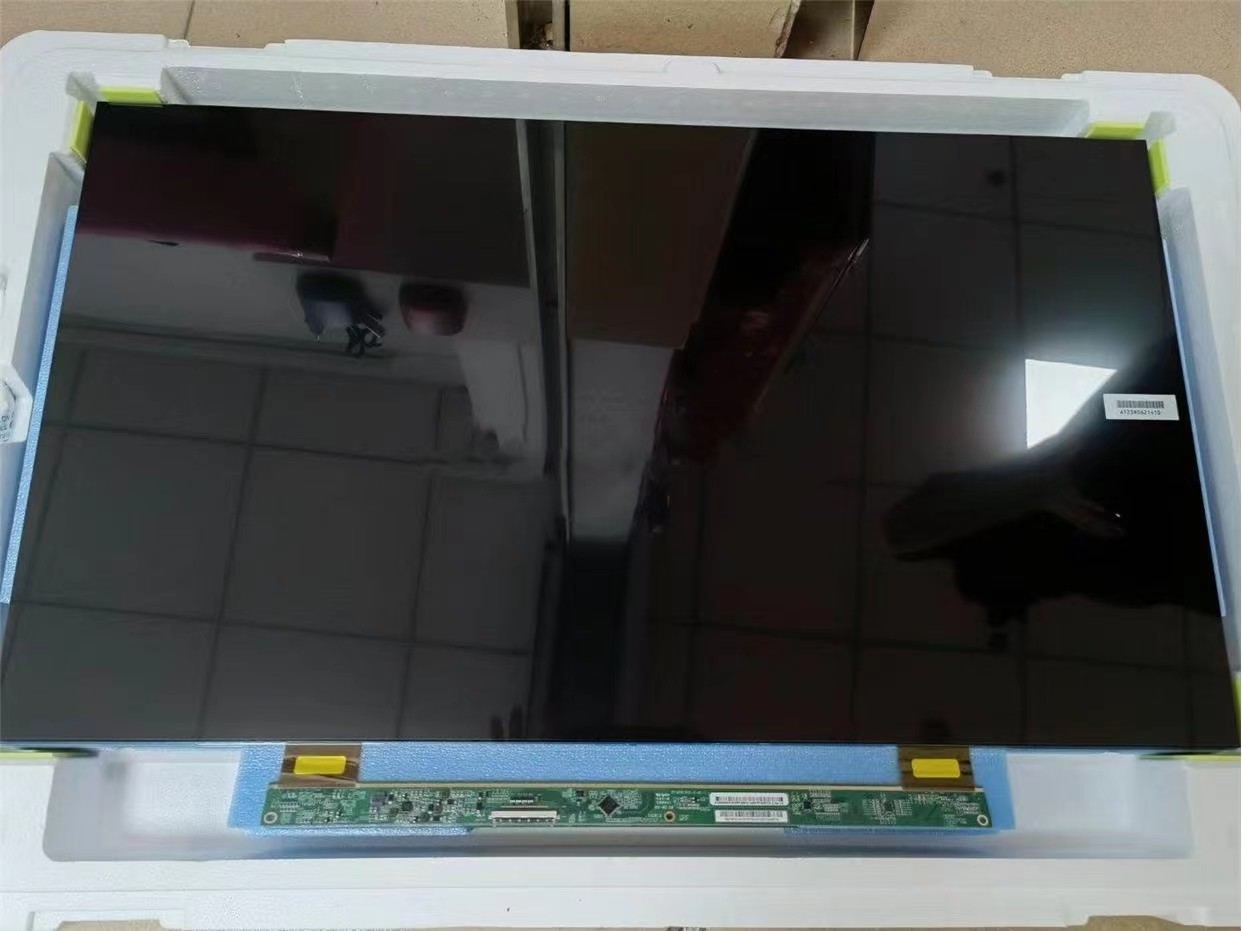

PN270CS02-1 HKC 27.0" 1920(RGB)×1080, 0 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	HKC
Model Number :	PN270CS02-1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

PN270CS02-1 HKC 27.0" 1920(RGB)×1080, 0 cd/m² INDUSTRIAL LCD DISPLAY

HKC PN270CS02-1 Application Details

Basic Detail :	Manufacturer		Model Name	PN270CS02-1
	Panel Type	a-Si TFT-LCD , CELL	Another Name	-
	Panel Size	27.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

HKC PN270CS02-1 Optical Details

Basic Information :	Luminance	0 cd/m²	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	14 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	HIS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.311; Wy:0.338	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	6517K	White Uniformity	-
1931 Color Gamut :	NTSC Ratio	73%	sRGB	96% coverage
	Adobe RGB	74% coverage	DCI-P3	76% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	No	Transmissivity	5.7% (Typ.)(with Polarizer)

HKC PN270CS02-1 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1080 [FHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.1038×0.3114 mm	Pixel Pitch(W×H)	0.3114×0.3114 mm [81PPI]
Physical Size :	Active Viewing	597.888(W)×336.312(H) mm	Overall Dim.	606.088(W)×348.812(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	1.08 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Plate Thickness	0.40+0.40 mm
Other Detail :	Mass	569g (Typ.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

HKC PN270CS02-1 Interface Details

Signal Electrical :	Input Current	0.55/0.7A (Typ./Max.)		Input Voltage	5.0V (Typ.)
Signal Electrical :	Consumption	3.5/5.5W (Typ./Max.)	Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	STM	MSBKT2407P30HL	1 pcs	1.0 mm	30 pins

HKC PN270CS02-1 Packing Details

Box Type	Pcs/Box	Box Qty	Package LWH (mm)	G.W (kgs)	Volume (m³)	Remarks
Box	20	1	720×515×120	12.50	0.0445
Pallet	320	16	1080×770×1033	213.86	0.8590

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 606.088(W)×348.812(H)×1.08(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 569g (Typ.), utilizing 0.40+0.40 mm mm plate. As a HIS, Normally Black, Transmissive CELL product, PN270CS02-1 can provides 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product have no backlight. PN270CS02-1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
