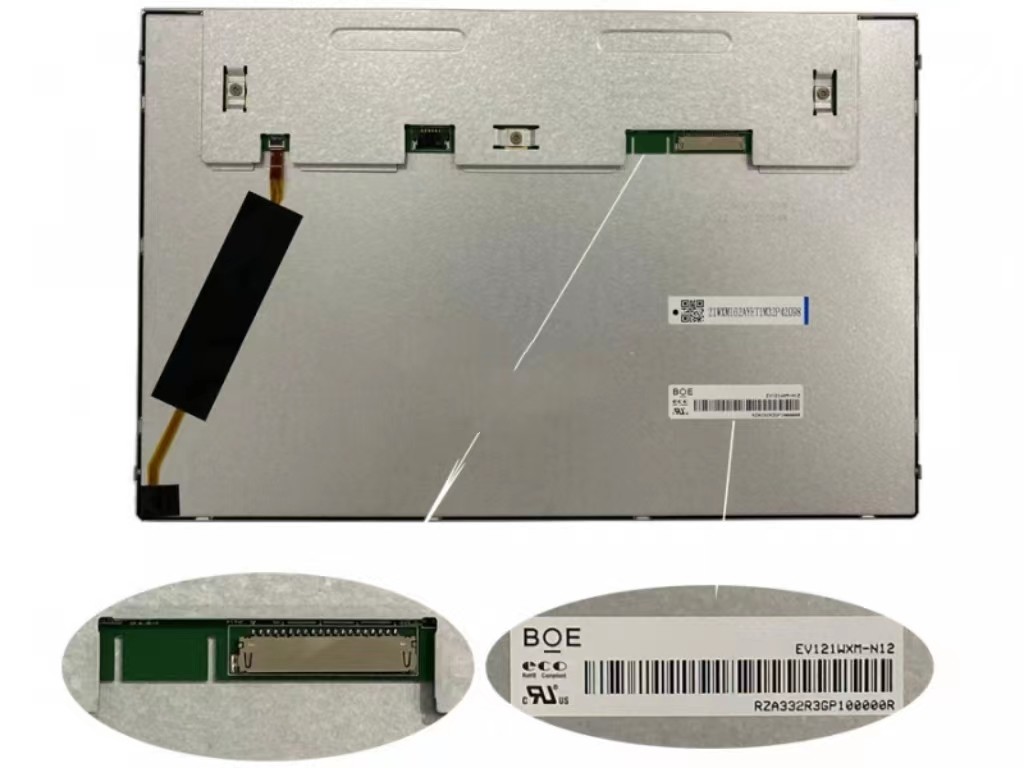

EV121WXM-N12 BOE 12.1" 1280(RGB)×800, 500 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	EV121WXM-N12
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

EV121WXM-N12 BOE 12.1" 1280(RGB)×800, 500 cd/m² INDUSTRIAL LCD DISPLAY

BOE EV121WXM-N12 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		EV121WXM-N12	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C

BOE EV121WXM-N12 Mechanical Features

Panel Size :	12.1 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1280(RGB)×800, WXGA	RGB Vertical Stripe	0.068×0.204 mm	0.204×0.204 mm [124PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	261.12×163.2 mm	264.12×166.2 mm	277.7×180.6 mm	8.7±0.5 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:10 (W : H)	Landscape type
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	TBD	Antiglare (Haze 25%)

BOE EV121WXM-N12 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	500 cd/m² (Typ.)	ADS, Normally Black, Transmissive	1200:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	85/85/85/85 (Typ.)(CR≥10)	Symmetry	30 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	262K/16.7M (6-bit / 6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	77%	100%	78%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	80%	57%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25/1.43 (Typ./Max.)(9 points)

BOE EV121WXM-N12 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	150/180/200mA (Min./Typ./Max.)		3.3V (Typ.)			0.5/0.59/0.66W (Min./Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	LVDS (1 ch, 6/8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	HRS	DF19G-20P-1H	1 pcs	1.0 mm	20 pins

BOE EV121WXM-N12 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Bottom side)	4 strings	12S4P	50K(Min.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	160mA (Typ.)		38.4/39.6V (Typ./Max.)			6.14/6.34W (Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	With LED Driver
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	STM	MSA24038P6	1 pcs	1.25 mm	6 pins
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	620mA (Max.)		12±1.2V			7.45W (Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 277.7(W)×180.6(H)×9.2(D) mm, viewing area size of 264.12(W)×166.2(H) mm, with surface treament of Antiglare (Haze 25%), net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, EV121WXM-N12 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, With LED Driver. EV121WXM-N12 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.
