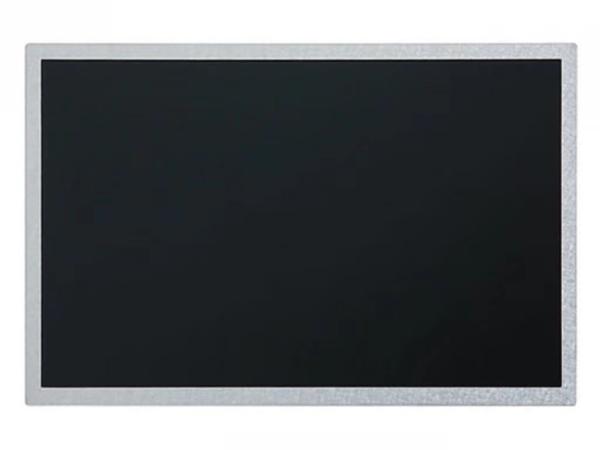

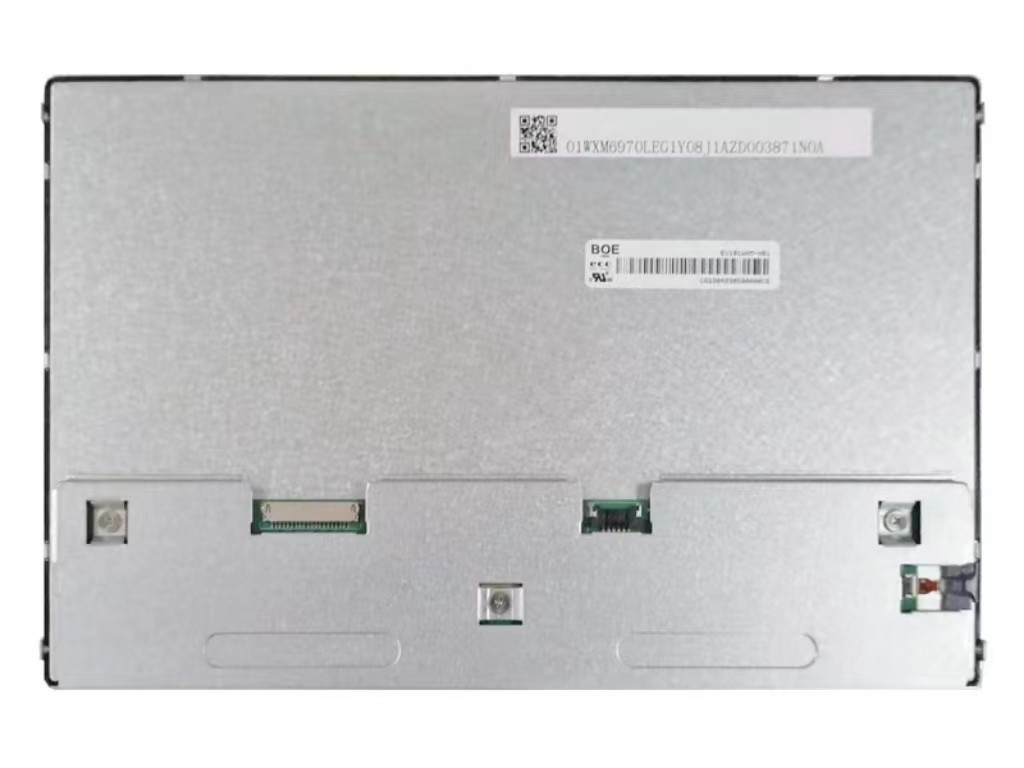

EV101WXM-N81 BOE 10.1" 1280(RGB)×800, 500 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	EV101WXM-N81
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

EV101WXM-N81 BOE 10.1" 1280(RGB)×800, 500 cd/m² INDUSTRIAL LCD DISPLAY

BOE EV101WXM-N81 Application Details

Basic Detail :	Manufacturer		Model Name	EV101WXM-N81
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	10.1 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C

BOE EV101WXM-N81 Optical Details

Basic Information :	Luminance	500 cd/m² (Typ.)	Contrast Ratio	900 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.2M (6-bit + FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33/1.54 (Typ./Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	52%	sRGB	73% coverage
	Adobe RGB	55% coverage	DCI-P3	54% coverage
	Rec.2020	39% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	No	Transmissivity	5.4% (Typ.)

BOE EV101WXM-N81 Mechanical Details

Pixel Features :	Number of Pixel	1280(RGB)×800 [WXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.0565×0.1695 mm	Pixel Pitch(W×H)	0.1695×0.1695 mm [149PPI]
Physical Size :	Active Viewing	216.96(W)×135.6(H) mm	Overall Dim.	233.2(W)×152.9(H) mm
Physical Size :	Bezel Opening	219.4(W)×138.0(H) mm	Overall Depth	6.7/10.4 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:10	Shape Style
Fixation :	Side mounting holes (4 pcs) on left, right bezel
Other Detail :	Mass	505g (Typ.)	Surface

BOE EV101WXM-N81 Interface Details

Signal Electrical :	Input Current	250/330mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	0.8/1.1W (Typ./Max.)	Signal Interface	LVDS (1 ch, 8-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	HRS	DF19G-20P-1H(56)	1 pcs	1.0 mm	20 pins

BOE EV101WXM-N81 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	50K(Min.) (Hours)
Lamp Electrical :	Input Current			Input Voltage	12±0.5V
Lamp Electrical :	Consumption	3.3W (Typ.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :			1 pcs		6 pins
Backlight Driver :	With LED Driver

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 233.2(W)×152.9(H)×10.4(D) mm, viewing area size of 219.4(W)×138.0(H) mm, net weight of 505g (Typ.). As a ADS, Normally Black, Transmissive LCM product, EV101WXM-N81 can provides 500 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 52% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. EV101WXM-N81 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
