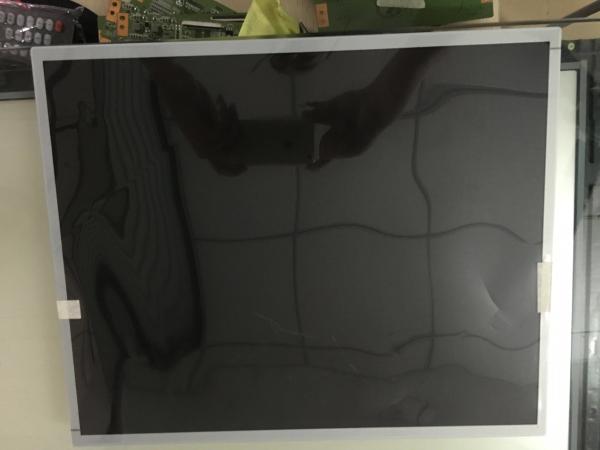

MV190E0M-N10 BOE 19.0" 1280(RGB)×1024, 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

MV190E0M-N10 BOE 19.0" 1280(RGB)×1024, 250 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	MV190E0M-N10
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

MV190E0M-N10 BOE 19.0" 1280(RGB)×1024, 250 cd/m² INDUSTRIAL LCD DISPLAY

BOE MV190E0M-N10 Application Features

Basic Information :	Manufacturer	Panel Model 1 Compatible	Panel Type	Alias
Basic Information :		MV190E0M-N10	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C	-
Used For :

BOE MV190E0M-N10 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	250 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	8/8 (Typ.)(Tr/Td), 14 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	ADS, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	73%	92%	71%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

BOE MV190E0M-N10 Mechanical Features

Panel Size :	19.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1280(RGB)×1024 [SXGA]	RGB Vertical Stripe	0.2928×0.2928 [86PPI]	0.0976×0.2928
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	374.784(H) × 299.827(V)	378.8(H) × 303.0(V)	396(H) × 324(V)	8.7/10.4 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	5:4 (H:V)	Normal bezel
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	1.69Kgs (Typ.)	-	Antiglare (Haze 25%), Hard coating (3H)

BOE MV190E0M-N10 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Right side)	15S2P	2 strings	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	45±3V		95mA (Typ.)			8.55/9.12W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	SM06B-SHJH(HF)	1.0 mm	6 pins	1 pcs	BLE-6PINS-CNAANC

BOE MV190E0M-N10 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	5.0V (Typ.)		0.6/1.1A (Typ./Max.)			3.0/5.5W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		LVDS (2 ch, 8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	UJU	IS100-L30R-C23	1.0 mm	30 pins	1 pcs	LVDS-30P2C8B-160A

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 374.784(W)×299.827(H) mm, outline size of 396(W)×324(H)×10.4(D) mm, viewing area size of 378.8(W)×303.0(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.69Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV190E0M-N10 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8/8 (Typ.)(Tr/Td), 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 15S2P WLED as it's backlight systerm which was placed as Edge light type (Right side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV190E0M-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
