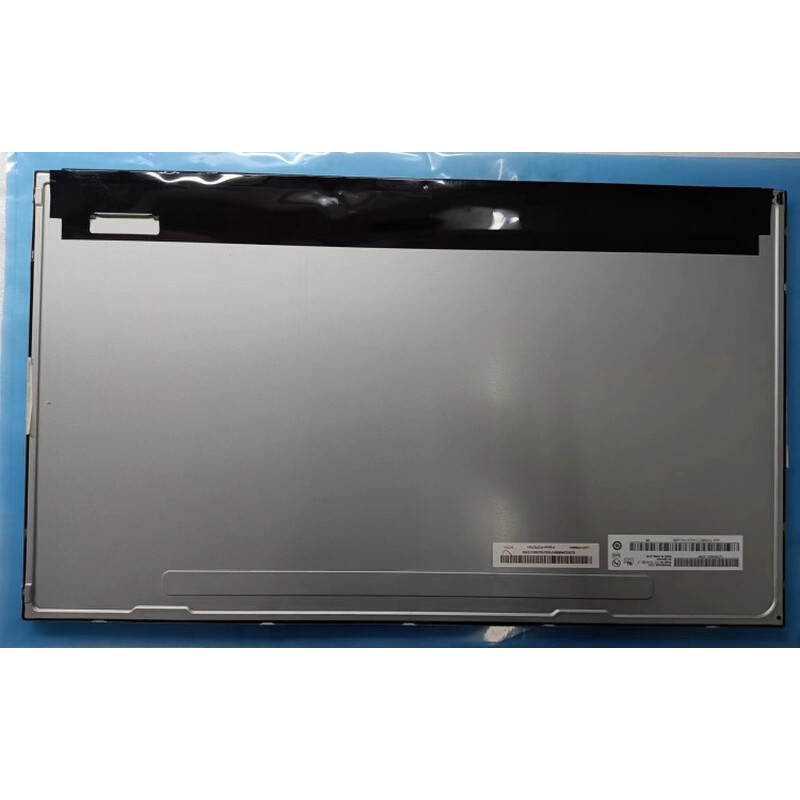

DV215FHM-R01 BOE 21.5" 1920(RGB)×1080, 500 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

DV215FHM-R01 BOE 21.5" 1920(RGB)×1080, 500 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	DV215FHM-R01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

DV215FHM-R01 BOE 21.5" 1920(RGB)×1080, 500 cd/m² INDUSTRIAL LCD DISPLAY

BOE DV215FHM-R01 Application Details

Basic Detail :	Manufacturer		Model Name	DV215FHM-R01
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	21.5 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 85 °C	ST Temperature	-20 ~ 85 °C

BOE DV215FHM-R01 Optical Details

Basic Information :	Luminance	500 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	17 (Typ.)(G to G) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.285; Wy:0.293	Support Color	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	9289K	White Uniformity	1.33 (Typ.)(9 points)
1931 Color Gamut :	NTSC Ratio	72%	sRGB	97% coverage
	Adobe RGB	74% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE DV215FHM-R01 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1080 [FHD]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.08275×0.24825 mm	Pixel Pitch(W×H)	0.24825×0.24825 mm [102PPI]
Physical Size :	Active Viewing	476.64(W)×268.11(H) mm	Overall Dim.	495.6(W)×292.2(H) mm
Physical Size :	Bezel Opening	479.8(W)×271.3(H) mm	Overall Depth	8.2/11.2 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:9	Shape Style
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Mass	1.93Kgs	Surface	Antiglare (Haze 25%), Hard coating (3H)

BOE DV215FHM-R01 Interface Details

Signal Electrical :	Input Current	0.75/1.5A (Typ./Max.)		Input Voltage	5.5V (Typ.)
Signal Electrical :	Consumption	3.5/6.75W (Typ./Max.)	Signal Interface	LVDS (2 ch, 8-bit)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	UJU	IS100-L30O-C23	1 pcs	1.0 mm	30 pins	LVDS-30P2C8B-160A

BOE DV215FHM-R01 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	30K(Min.) (Hours)
Lamp Electrical :	Input Current	102mA (Typ.)		Input Voltage	51/65.1V (Typ./Max.)
Lamp Electrical :	Consumption	20.81/22.89W (Typ./Max.)
Interface Features :	Position		Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	E&T	3707K-Q06N-08X	1 pcs	1.0 mm	6 pins	BLE-6PINS-CCAACC
Backlight Driver :	No

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×11.2(D) mm, viewing area size of 479.8(W)×271.3(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.93Kgs. As a ADS, Normally Black, Transmissive LCM product, DV215FHM-R01 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 17 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. DV215FHM-R01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.5V (Typ.).
