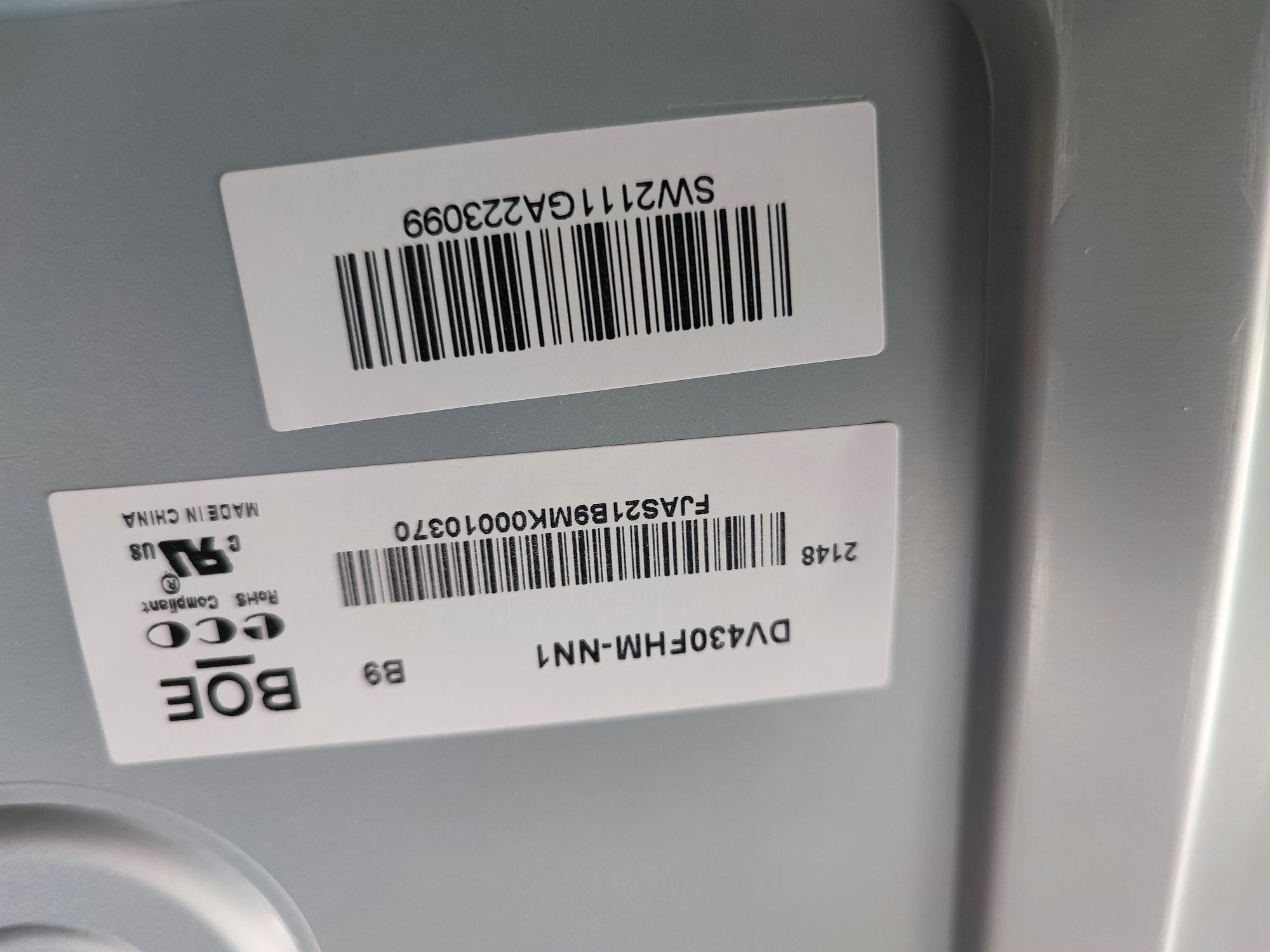

DV430FHM-NN1 BOE 43" 1920(RGB)×1080, 400 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	DV430FHM-NN1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

DV430FHM-NN1 BOE 43" 1920(RGB)×1080, 400 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY

BOE DV430FHM-NN1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		DV430FHM-NN1	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

BOE DV430FHM-NN1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	400 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	8 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	ADS, Normally Black, Transmissive	1200 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	9969K	16.7M (8-bit)	X:0.280; Y:0.290
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	71%	97%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	74%	53%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33/1.43 (Typ./Max.)(9 points)

BOE DV430FHM-NN1 Mechanical Features

Panel Size :	43"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×1080 [FHD]	RGB Vertical Stripe	0.49005×0.49005 [51PPI]	0.16335×0.49005
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	940.896(H) × 529.254(V)	-	961.7(H) × 550.1(V)	11.7/27.7 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	8.36Kgs (Typ.)	-	Antiglare (Haze 1%), Hard coating (3H)

BOE DV430FHM-NN1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	-	-	30K(Min.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :			3.0 mm	14 pins	1 pcs
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	22/26V (Min./Max.)		3.5A (Max.)			64.0W (Max.)

BOE DV430FHM-NN1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	12.0V (Typ.)		0.5/0.95A (Typ./Max.)			6/11.4W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		LVDS (2 ch, 8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	UJC	PM.LVS.S040505101	0.5 mm	51 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 940.896(W)×529.254(H) mm, outline size of 961.7(W)×550.1(H)×27.7(D) mm, with surface treament of Antiglare (Haze 1%), Hard coating (3H), net weight of 8.36Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, DV430FHM-NN1 can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. DV430FHM-NN1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.)
