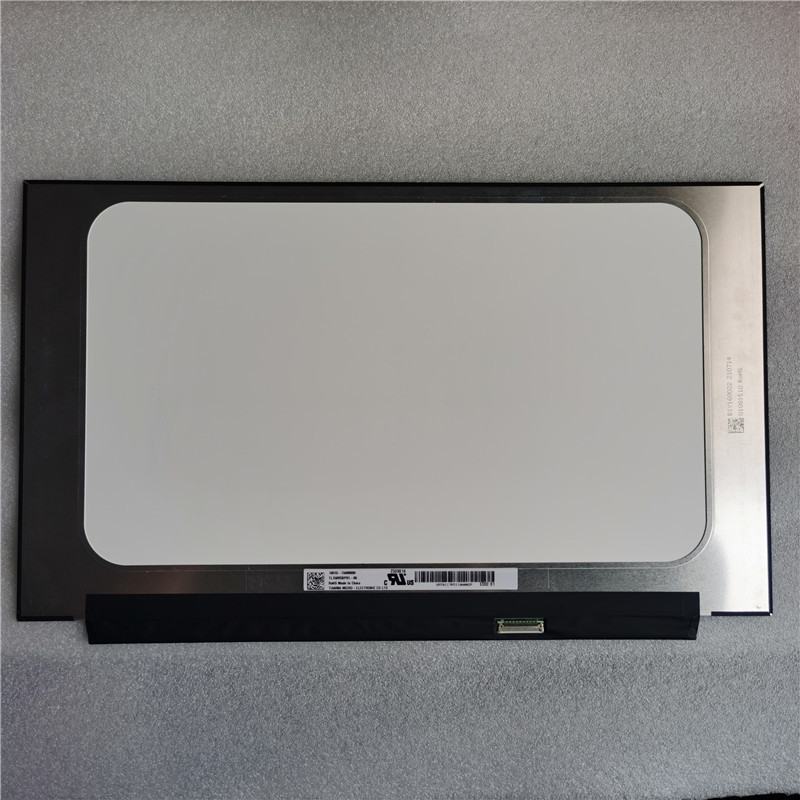

NE156QHM-NY3 BOE 15.6" 2560(RGB)×1440, 300 cd/m² INDUSTRIAL LCD DISPLAY

BOE NE156QHM-NY3 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		NE156QHM-NY3	Oxide TFT-LCD , LCM	BOE09B8
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

BOE NE156QHM-NY3 Mechanical Features

Panel Size :	15.6 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	2560(RGB)×1440, Quad-HD	RGB Vertical Stripe	0.04482×0.13446 mm	0.13446×0.13446 mm [188PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	344.22×193.62 mm	-	350.66×216.14 mm	2.4/2.6 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	Slim (PCBA Flat, T≤3.2mm)
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	300g (Max.)	Antiglare, Hard coating (3H)

BOE NE156QHM-NY3 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	300 cd/m² (Typ.)	ADS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	85/85/85/85 (Typ.)(CR≥10)	Symmetry	9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD), 6 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	77%	100%	78%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	80%	57%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25/1.67 (Max.)(5/13 points)

BOE NE156QHM-NY3 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	636.4mA (Max.)		3.3V (Typ.)			1.95/2.1W (Max.)(OD OFF/OD)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	eDP (4 Lanes), HBR2 (5.4G/lane)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	STM	MSAK24025P40	1 pcs	0.5 mm	40 pins

BOE NE156QHM-NY3 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Bottom side)	5 strings	10S5P	15K(Min.)	-
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in signal interface	With LED Driver
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	-		5.0/12.0/21.0V (Min./Typ./Max.)			3.8W (Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.22(W)×193.62(H) mm, outline size of 350.66(W)×216.14(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE156QHM-NY3 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD), 6 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE156QHM-NY3 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
