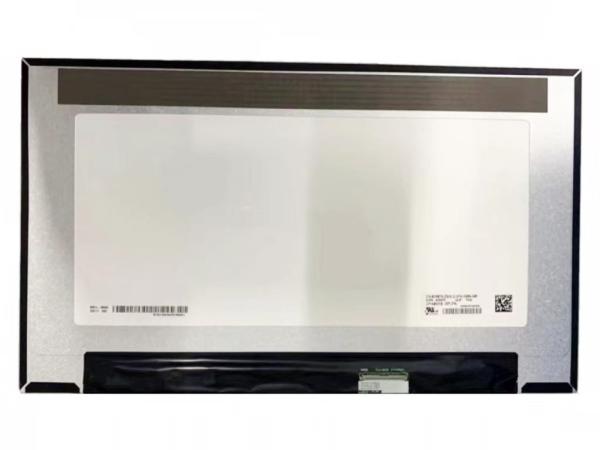

LP140WFB-SPF4 LG Display 14.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LP140WFB-SPF4
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LP140WFB-SPF4 LG Display 14.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LP140WFB-SPF4 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		LP140WFB-SPF4	a-Si TFT-LCD , LCM	LP140WFB (SP)(F4), LGD06C3
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP140WFB-SPF4 Mechanical Features

Panel Size :	14.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.0537×0.1611 mm	0.1611×0.1611 mm [157PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	309.31×173.99 mm	-	315.81×186.07 mm	2.95/5.25 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	Slim (PCBA Bent, T≤3.0mm)
Touchscreen :	Touch Points	TP Controller & Signal	OS System	Touch Tech
Touchscreen :	10 points	With controller, I²C	-	In-Cell Touch
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	310g (Typ.)	Antiglare, Hard coating (3H)

LG Display LP140WFB-SPF4 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	300 cd/m² (Typ.)	IPS, Normally Black, Transmissive	700:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	85/85/85/85 (Typ.)(CR≥10)	Symmetry	25 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	72%	99%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	75%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.40/1.60 (Max.)(5/13 points)

LG Display LP140WFB-SPF4 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	270/297mA (Typ./Max.)		3.3V (Typ.)			0.89/0.98W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	LS Mtron	GT05Q-40S-H10	1 pcs	0.5 mm	40 pins

LG Display LP140WFB-SPF4 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	-	-	15K(Min.)	-
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in signal interface	With LED Driver
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	250/255mA (Typ./Max.)		5.0/12.0/21.0V (Min./Typ./Max.)			3.0/3.05W (Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.81(W)×186.07(H)×5.25(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 310g (Typ.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WFB-SPF4 can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WFB-SPF4 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
