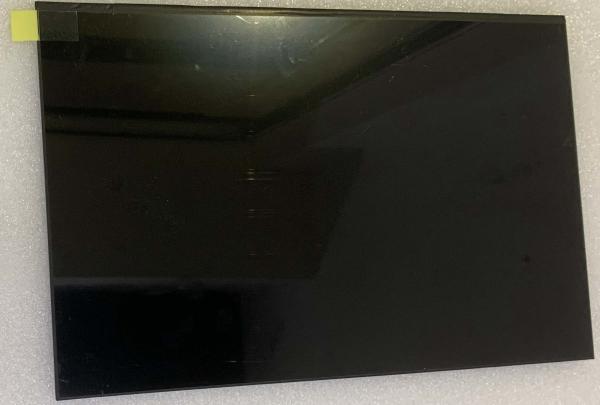

LP140WU1-SPB2 LG Display 14.0" 1920(RGB)×1200, 85/85/85/85 INDUSTRIAL LCD DISPLAY

LG Display LP140WU1-SPB2 Application Details

Basic Detail :	Manufacturer		Model Name	LP140WU1-SPB2
	Panel Type	a-Si TFT-LCD , LCM	Another Name	LP140WU1 (SP)(B2)
	Panel Size	14.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C

LG Display LP140WU1-SPB2 Optical Details

Basic Information :	Luminance	-	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	30 (Typ.)(Tr+Td) (ms)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	IPS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Max.)(5/13 points)

LG Display LP140WU1-SPB2 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1200 [WUXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.05236×0.15708 mm	Pixel Pitch(W×H)	0.15708×0.15708 mm [161PPI]
Physical Size :	Active Viewing	301.594(W)×188.496(H) mm	Overall Dim.	306.59(W)×198.4(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	2.4/4.5 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:10	Shape Style	Slim (PCBA Bent, T≤3.0mm)
Fixation :	Without
Other Detail :	Mass	225g (Max.)	Surface	Antiglare, Hard coating (3H)

LG Display LP140WU1-SPB2 Interface Details

Signal Electrical :	Input Current	97/107mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	0.32/0.35W (Typ./Max.)	Signal Interface	eDP (2 Lanes), eDP1.4, HBR1 (2.7G/lane)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	LS Mtron	GT05Q-30S-H10-MN	1 pcs	0.5 mm	30 pins

LG Display LP140WU1-SPB2 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	15K(Min.) (Hours)
Interface Features :	Position	-	Physical Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current	-		Input Voltage	5.0/12.0/20.0V (Min./Typ./Max.)

LG Display LP140WU1-SPB2 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	No

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.59(W)×198.4(H)×4.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 225g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WU1-SPB2 can provides 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WU1-SPB2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
