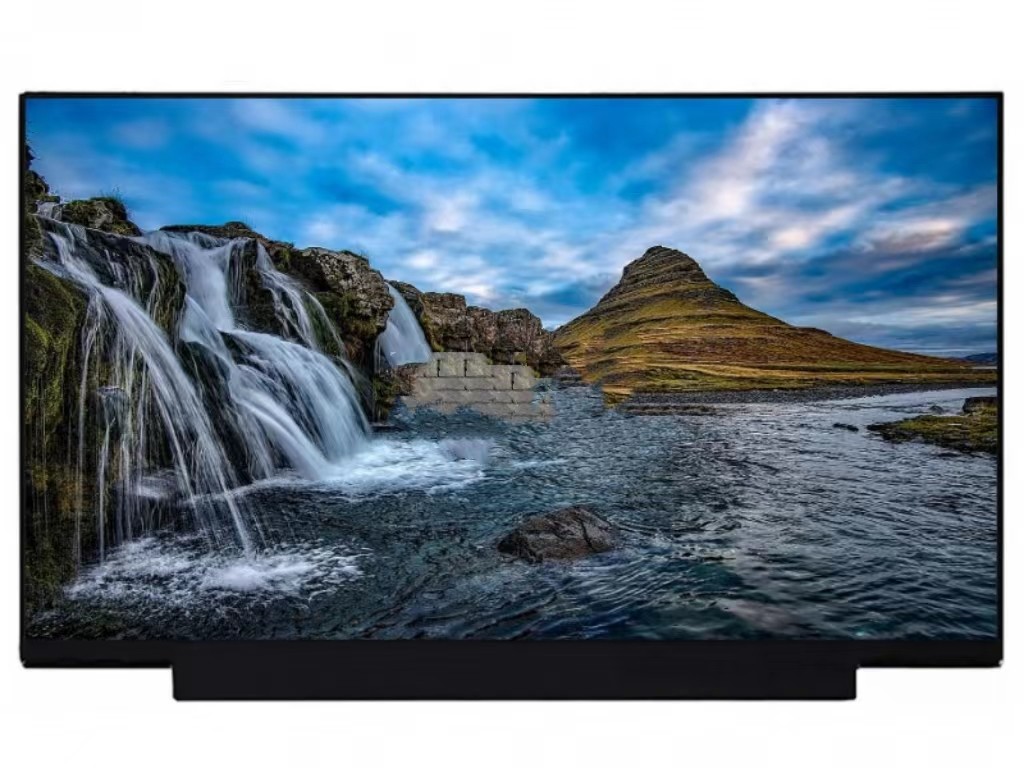

NT173WDM-N25 BOE 17.3" 1600(RGB)×900, HD+ 250 (cd/m²) INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

NT173WDM-N25 BOE 17.3" 1600(RGB)×900, HD+ 250 (cd/m²) INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	NT173WDM-N25
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

NT173WDM-N25 BOE 17.3" 1600(RGB)×900, HD+ 250 (cd/m²) INDUSTRIAL LCD DISPLAY

BOE NT173WDM-N25 Application Details

Basic Information :	Brand		Model	NT173WDM-N25
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	17.3"	Alias	BOE0954
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C
Environment :	RoHS		Vibration	1.5G (14.7 m/s²)

BOE NT173WDM-N25 Mechanical Details

Pixel Features :	Resolution	1600(RGB)×900, HD+	Dot Pitch(mm)	0.0796×0.2388 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.2388×0.2388 (H×V) [106PPI]
Mechanical Size :	Active Area(mm)	382.08(H) × 214.92(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	389.88(H) × 236.52(V)	Depth(mm)	3.3/3.5 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Flat (PCBA Flat, T3.4~4.0mm)
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Without
Other Spec :	Weight	480g (Max.)	Treatment	Antiglare, Hard coating (3H)

BOE NT173WDM-N25 Optical Details

Basic Information :	Luminance(cd/m²)	250 (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	45/45/20/40 (Min.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	12 (Typ.)(Tr+Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.40/1.60 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	61%	sRGB	81% coverage
	Adobe RGB	63% coverage	DCI-P3	63% coverage
	Rec.2020	45% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE NT173WDM-N25 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	213mA (Max.)
Signal Electrical :	Consumption	0.7W (Max.)
Signal Type :	eDP (1 Lane), eDP1.2, HBR1 (2.7G/lane)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	STM	MSAK24025P30	1 pcs	30 pins	0.5 mm	EDP-30P1L-030A

BOE NT173WDM-N25 Backlight Details

Backlight Features:	Shape	5 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	10S5P	Life Time	15K(Min.) (Hours)
Interface Features :	Position	-		Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	5.0/12.0/21.0V (Min./Typ./Max.)		Current Supply	-
Driver Electrical :	Consumption	3.4W (Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 382.08(W)×214.92(H) mm, outline size of 389.88(W)×236.52(H)×3.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 480g (Max.), shape stype of Flat (PCBA Flat, T3.4~4.0mm). As a TN, Normally White, Transmissive LCM product, NT173WDM-N25 can provides 250 cd/m² display brightness 500:1 transimissive contrast ratio, 45/45/20/40 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 12 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 60% (NTSC). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NT173WDM-N25 utilizes eDP (1 Lane) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
