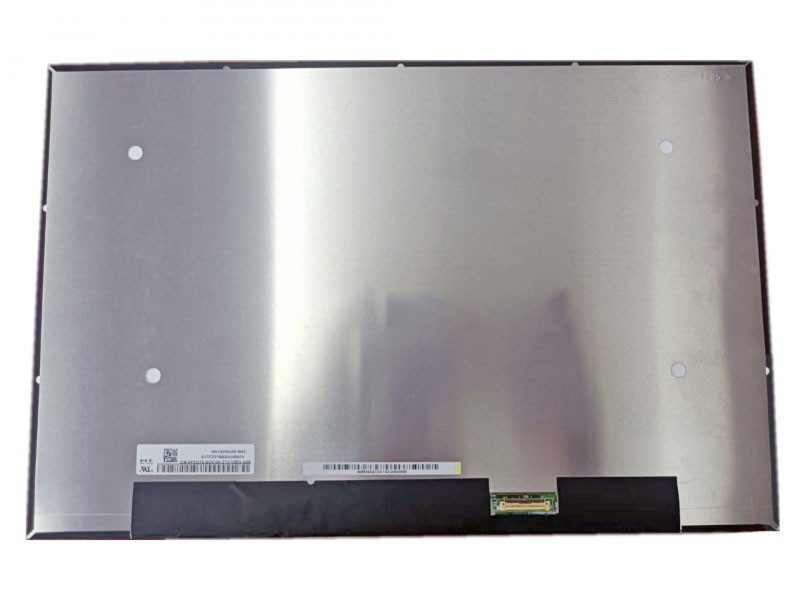

NV140WUM-N43 BOE 14.0" 1920(RGB)×1200, 300 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	NV140WUM-N43
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

NV140WUM-N43 BOE 14.0" 1920(RGB)×1200, 300 cd/m² INDUSTRIAL LCD DISPLAY

BOE NV140WUM-N43 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		NV140WUM-N43	a-Si TFT-LCD , LCM	BOE0A35
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

BOE NV140WUM-N43 Mechanical Features

Screen Size :	14.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1920(RGB)×1200, WUXGA	RGB Vertical Stripe	0.05236×0.15708 mm	0.15708×0.15708 mm [161PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	301.594×188.496 mm	-	306.59×198.9 mm	3.0/5.1 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:10	Landscape type	Slim (PCBA Bent, T≤3.0mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	300g (Max.)	-	Antiglare, Hard coating (3H)
Holes & Brackets :	Without

BOE NV140WUM-N43 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	300 cd/m² (Typ.)	HADS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	89/89/89/89 (Typ.)(CR≥10)	20 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	48%	65%	50%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	49%	36%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25/1.67 (Max.)(5/13 points)

BOE NV140WUM-N43 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	10S5P	5 strings	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	5.0/12.0/21.0V (Min./Typ./Max.)		-			2.6W (Max>)

BOE NV140WUM-N43 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		200mA (Max.)			0.6W (Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	STM	MSAK24025P30	1 pcs	30 pins	0.5 mm	EDP-30P2L-020I

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.59(W)×198.9(H)×5.1(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 300g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a HADS, Normally Black, Transmissive LCM product, NV140WUM-N43 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 10S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140WUM-N43 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
