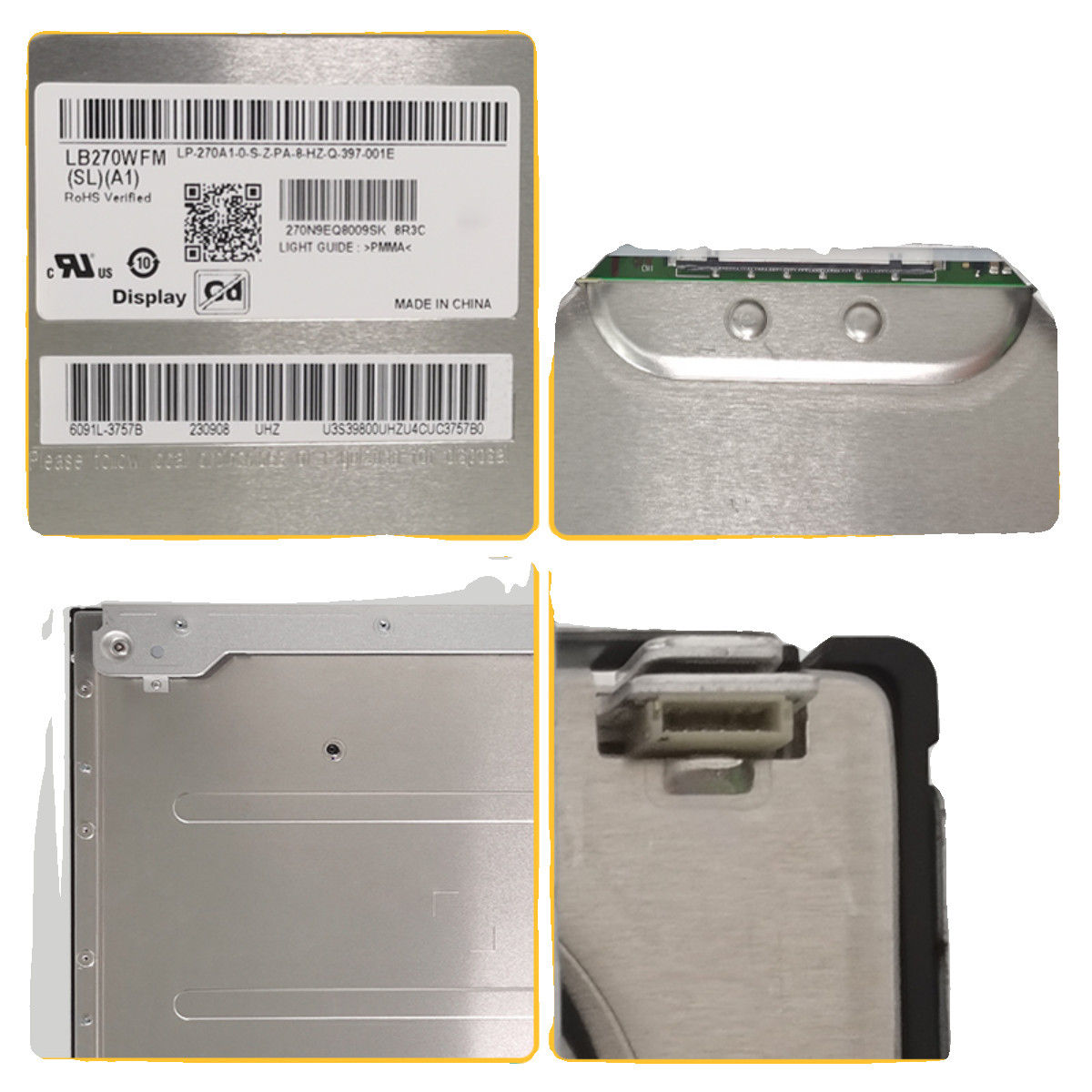

    LB270WFM-SLA1 LG Display 27.0" 1920(RGB)×1080, 1000 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LB270WFM-SLA1
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    LB270WFM-SLA1 LG Display 27.0" 1920(RGB)×1080, 1000 cd/m² INDUSTRIAL LCD DISPLAY

    LG Display LB270WFM-SLA1 Application Features

    Basic Information :ManufacturerPanel ModelPanel TypeAlias
    LB270WFM-SLA1a-Si TFT-LCD , LCMLB270WFM (SL)(A1)
    Environment :RoHS StateOperating Temp.Storage Temp.Vibration Level
    0 ~ 50 °C-20 ~ 60 °C

    LG Display LB270WFM-SLA1 Optical Features

    Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
    1000 (Typ.)89/89/89/89 (Typ.)(CR≥10)14 (Typ.)(G to G)
    Best View onDisplay ModeContrast Ratio
    SymmetryIPS, Normally Black, Transmissive1000 : 1 (Typ.) (Transmissive)
    Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
    6485K1.07B (10-bit)X:0.313; Y:0.329
    1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
    81%100%80%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    85%61%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Variation :1.33 (Max.)(9 points)
    Performance :3D TechSunlight VisibilityReflectance
    -Sunlight Readable

    LG Display LB270WFM-SLA1 Mechanical Features

    Panel Size :27.0"
    Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
    1920(RGB)×1080 [FHD]RGB Vertical Stripe0.3114×0.3114 [81PPI]0.1038×0.3114
    Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
    597.888(H) × 336.312(V)601.3(H) × 339.7(V)622.4(H) × 364.2(V)11.45/17.85 (Typ./Max.) mm
    Outline Features :Form FactorOrientationAspect RatioShape Style
    Flat RectangleLandscape type16:9 (H:V)
    Mounting :Side mounting holes (4-M3) on left, right bezel
    Other Detail :WeightPanel CoverTreatment
    2.84/2.98Kgs (Typ./Max.)-Antiglare (Haze 25%), Hard coating (3H)

    LG Display LB270WFM-SLA1 Backlight Features

    Lamp Features:TypePositionQuantityShapeLife(Hours)Lamp Exchange
    WLEDEdge light type (Top and Bottom)18S4P×2CN4 strings × 2CN30K(Min.)-
    WLED Electrical :Voltage SupplyCurrent SupplyPower
    47.7±3.2V130/135mA (Typ./Max.)49.6/52.9W (Typ./Max.)
    Interface Features :PositionBacklight DriverType
    NoConnector
    Interface Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    JSTSM06B-SHJH(HF)1.0 mm6 pins2 pcsBLE-6PINS-AACCAA

    LG Display LB270WFM-SLA1 Interface Features

    Panel Driving Electrical :Voltage SupplyCurrent SupplyPower
    5.0V (Typ.)0.74/0.92A (Typ./Max.)3.7/4.6W (Typ./Max.)
    Interface Features :PositionSignalType
    LVDS (2 ch, 10-bit)Connector
    Connector Detail :BrandModelPin PitchPin AmountQuantityConfiguration
    UJUIS050-C51B-C39-A0.5 mm51 pins1 pcs

      whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 622.4(W)×364.2(H)×17.85(D) mm, viewing area size of 601.3(W)×339.7(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 2.84/2.98Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LB270WFM-SLA1 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 18S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 30K hours, external backlight driver is additionally needed. LB270WFM-SLA1 utilizes LVDS (2 ch, 10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 5.0V (Typ.).
