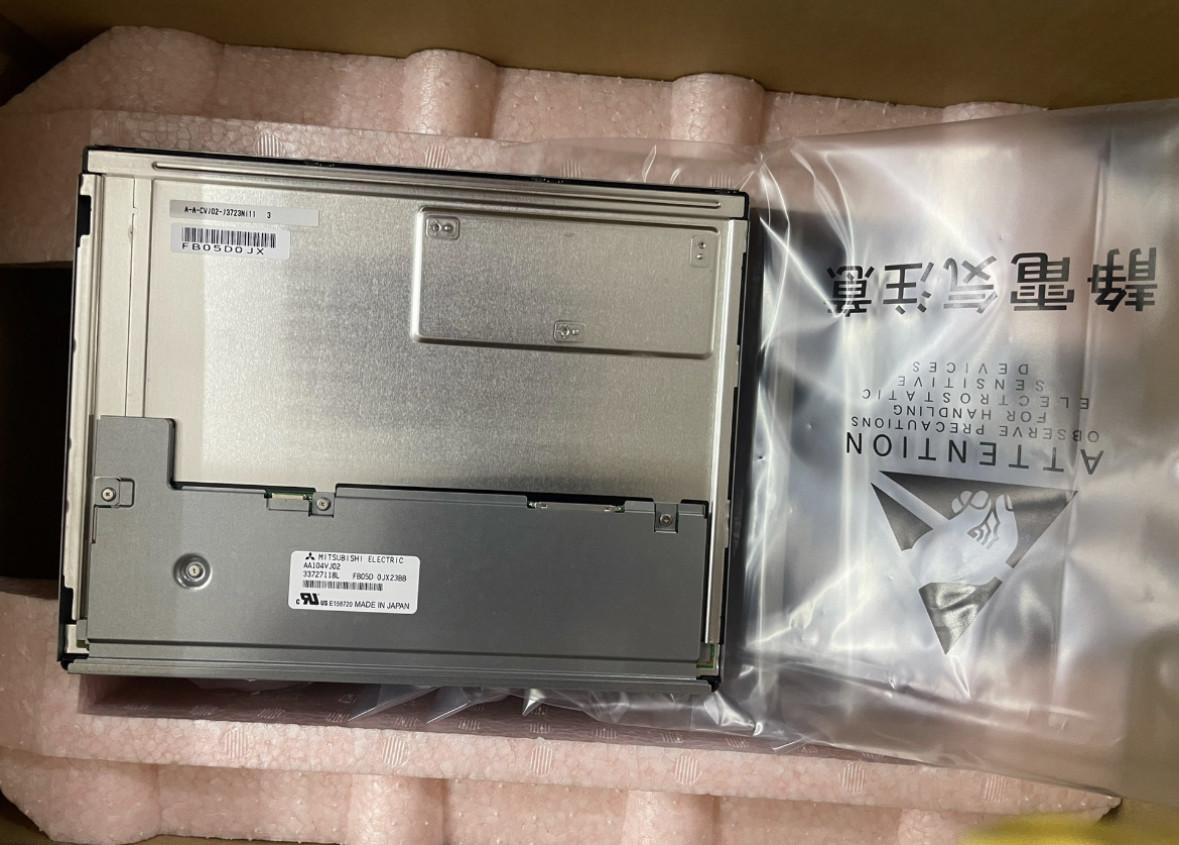

AA104SJ02 Mitsubishi 10.4" 800(RGB)×600, 600 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	Mitsubishi
Model Number :	AA104SJ02
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

AA104SJ02 Mitsubishi 10.4" 800(RGB)×600, 600 cd/m² INDUSTRIAL LCD DISPLAY

Mitsubishi AA104SJ02 Application Details

Basic Info :	Panel Brand		Panel Model	AA104SJ02 1 Compatible
	Diagonal Size	10.4"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	T-51513D104J-LW-A-ANN
Reliability :	Operating Temp.	-30 ~ 80 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	1.0G (9.8 m/s²)

Mitsubishi AA104SJ02 Mechanical Details

Pixel Features :	Pixel Format	800(RGB)×600 [SVGA]	Dot Pitch	0.088×0.264 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.264×0.264 mm (H×V) [96PPI]
Mechanical Size :	Display Area	211.2×158.4 mm (H×V)	Bezel Area	215.4×161.8 mm (H×V)
Mechanical Size :	Outline Dim.	230×180.2 mm (H×V)	Outline Depth	9.5±0.5 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Weight	450g (Typ.)	Surface	Antiglare, Hard coating (3H)

Mitsubishi AA104SJ02 Optical Details

Basic Information :	Brightness	600 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Optical Mode	SWV, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	12/12 (Typ.)(Tr/Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.30 (Max.)(5 points)
1931 Color Gamut :	NTSC Ratio	73%	sRGB	97% coverage
	Adobe RGB	75% coverage	DCI-P3	76% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA104SJ02 Backlight Details

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	100K(Typ.) (Hours)
Back-light Features:	Replacement	No	Amount	-	Position	Edge light type
Interface Features :	Type	Connector	Position	-	Lamp Driver	With LED Driver
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JAE	FI-S6P-HFE	1.25 mm	6 pins	1 pcs
Driver Electrical :	Voltage Input	12.0±1.2V		Current Input	0.54A (Typ.)

Mitsubishi AA104SJ02 Interface Details

Signal Systerm :	LVDS (1 ch, 6/8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	420mA (Typ.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	JAE	FI-SEB20P-HFE	1.25 mm	20 pins	1 pcs	LVDS-20P1C8B-010H

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×10(D) mm, viewing area size of 215.4(W)×161.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 450g (Typ.). As a SWV, Normally Black, Transmissive LCM product, AA104SJ02 can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. AA104SJ02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)
