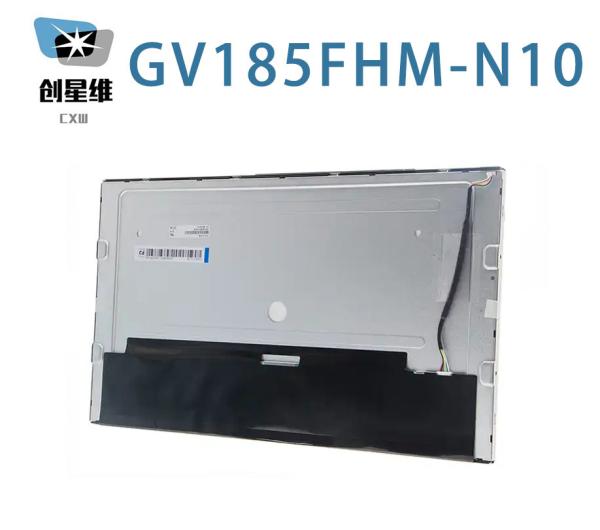

GV185FHM-N10-DM30 BOE 18.5" 1920(RGB)×1080, 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories

Sapientia Display Co.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

GV185FHM-N10-DM30 BOE 18.5" 1920(RGB)×1080, 350 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	GV185FHM-N10
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

GV185FHM-N10-DM30 BOE 18.5" 1920(RGB)×1080, 350 cd/m² INDUSTRIAL LCD DISPLAY

BOE GV185FHM-N10 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		GV185FHM-N10	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C

BOE GV185FHM-N10 Mechanical Features

Panel Size :	18.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.071×0.213 mm	0.213×0.213 mm [119PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	408.96×230.04 mm	410.96×232.04 mm	430.4×254.6 mm	12.5 (Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	1.80Kgs (Typ.)	Antiglare (Haze 25%), Hard coating (3H)

BOE GV185FHM-N10 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	350 cd/m² (Typ.)	ADS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	85/85/85/85 (Typ.)(CR≥10)	Symmetry	30 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6976K	16.7M (8-bit)	X:0.306; Y:0.320
Luminance Variation :	1.18/1.25 (Typ./Max.)(9 points)

BOE GV185FHM-N10 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	500mA (Typ.)		5.0V (Typ.)			-
Interface Features :	Position	Type	Interface
Interface Features :		Connector	LVDS (2 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	UJU	IS100-L30O-C23	1 pcs	1.0 mm	30 pins

BOE GV185FHM-N10 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Bottom side)	4 strings	11S4P	-	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	360mA (Typ.)		33V (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	With LED Driver
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail		CI4216S	1 pcs		5 pins
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	TBD		10.8/12.0/12.6V (Min./Typ./Max.)			TBD

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408.96(W)×230.04(H) mm, outline size of 430.4(W)×254.6(H)×12.5(D) mm, viewing area size of 410.96(W)×232.04(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.80Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, GV185FHM-N10-DM30 can provides 350 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 11S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side), With LED Driver. GV185FHM-N10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
