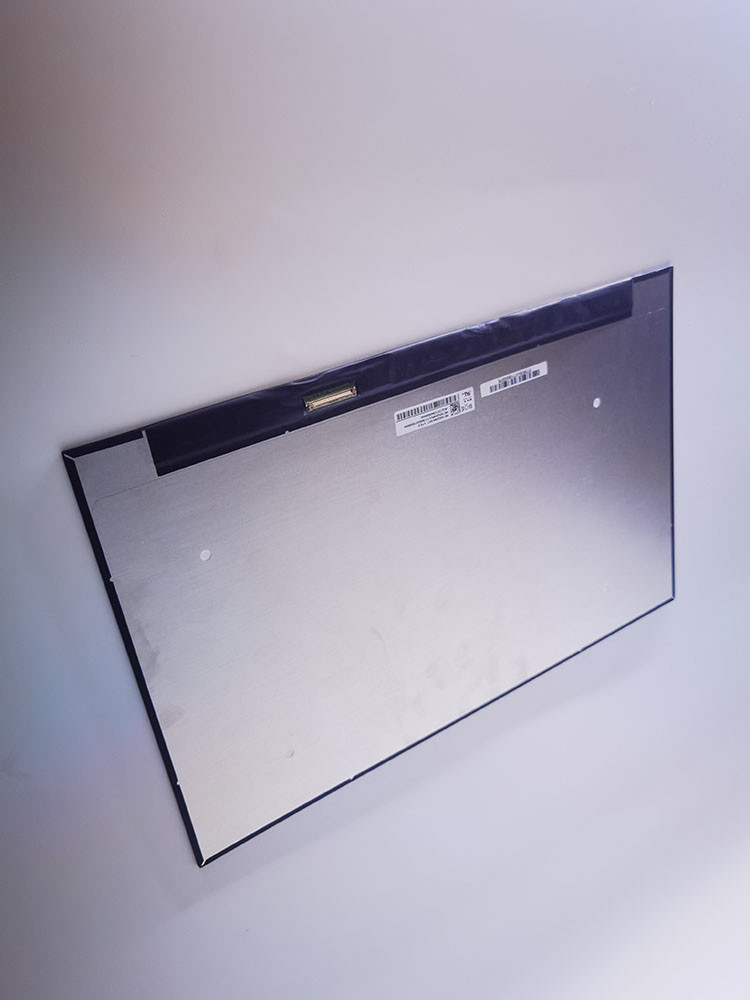

NE160QAM-NX1 BOE 16.0" 3840(RGB)×2400 500 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	NE160QAM-NX1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

NE160QAM-NX1 BOE 16.0" 3840(RGB)×2400 500 cd/m² INDUSTRIAL LCD DISPLAY

BOE NE160QAM-NX1 Application Details

Basic Info :	Panel Brand		Panel Model	NE160QAM-NX1
	Diagonal Size	16.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	BOE0A19
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Reliability :	RoHS State		Vibration Rating	1.5G (14.7 m/s²)

BOE NE160QAM-NX1 Mechanical Details

Pixel Features :	Pixel Format	3840(RGB)×2400	Dot Pitch	0.02992×0.08976 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.08976×0.08976 mm (H×V) [282PPI]
Mechanical Size :	Display Area	344.678×215.424 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	349.68×224.42 mm (H×V)	Outline Depth	2.45/4.6 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style	Slim (PCBA Bent, T≤3.0mm)
Holes & Brackets :	Without
Other Features :	Weight	330g (Max.)	Surface	Antiglare, Hard coating (3H)

BOE NE160QAM-NX1 Optical Details

Basic Information :	Brightness	500 cd/m² (Typ.), HDR400	Contrast Ratio	1200:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Min.)(CR≥10)	Optical Mode	ADS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	9 (Typ.)(Tr+Td), 3 (Typ.)(G to G) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	1.07B (8-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.52 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	96%	sRGB	100% coverage
	Adobe RGB	88% coverage	DCI-P3	100% coverage
	Rec.2020	72% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE NE160QAM-NX1 Backlight Details

Back-light Features:	Lamp Shape	8 strings	Lamp Type	WLED	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	11S8P	Position	Edge light type
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	5.0/12.0/21.0V (Min./Typ./Max.)		Current Input	596mA (Max.)
Driver Electrical :	Consumption	7.15W (Max.)

BOE NE160QAM-NX1 Interface Details

Signal Systerm :	eDP (4 Lanes), eDP1.4b, HBR3 (8.1G/lane)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	630/727mA (Typ./Max.)
Signal Electrical :	Consumption	2.08/2.40W (Typ./Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	I-PEX	20455-040E-02	0.5 mm	40 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 282 PPI. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×224.42(H)×4.6(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 330g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE160QAM-NX1 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product adopted 11S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE160QAM-NX1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
