LM270WR3-SSE1 LG Display 27.0" 3840(RGB)×2160, 350 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LM270WR3-SSE1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LM270WR3-SSE1 LG Display 27.0" 3840(RGB)×2160, 350 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LM270WR3-SSE1 Packing Details

Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)	Remarks
Carton	10	1	710×365×448	N/A	0.1161
Pallet	60	6	1140×740×1085	N/A	0.9153

LG Display LM270WR3-SSE1 Lightting Details

Lamp Features :

Lamp Type

WLED

Amount

4 strings

Position

Edge light type (Bottom side)

Exchange

Lamp Shape

4 strings

Lamp Life

30K(Min.) (Hours)

Lamp Electrical :

Input Voltage

52.1±3.6V

Input Current

85/90mA (Typ./Max.)

Consumption

17.7/18.9W (Typ./Max.)

Interface Features :

Position

Physical Type

Connector

Interface Detail :

Brand

Model

Pin Pitch

Pins

Amount

Pin Assignment

YEONHO

10035WS-H06D

1.0 mm

6 pins

1 pcs

BLE-6PINS-CCAACC

Backlight Driver :

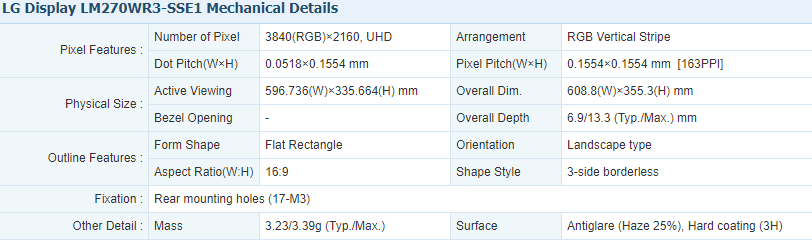

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 596.736(W)×335.664(H) mm, outline size of 608.8(W)×355.3(H)×13.3(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.23/3.39g (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WR3-SSE1 can provides 350 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WR3-SSE1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 10.0V (Typ.

)
