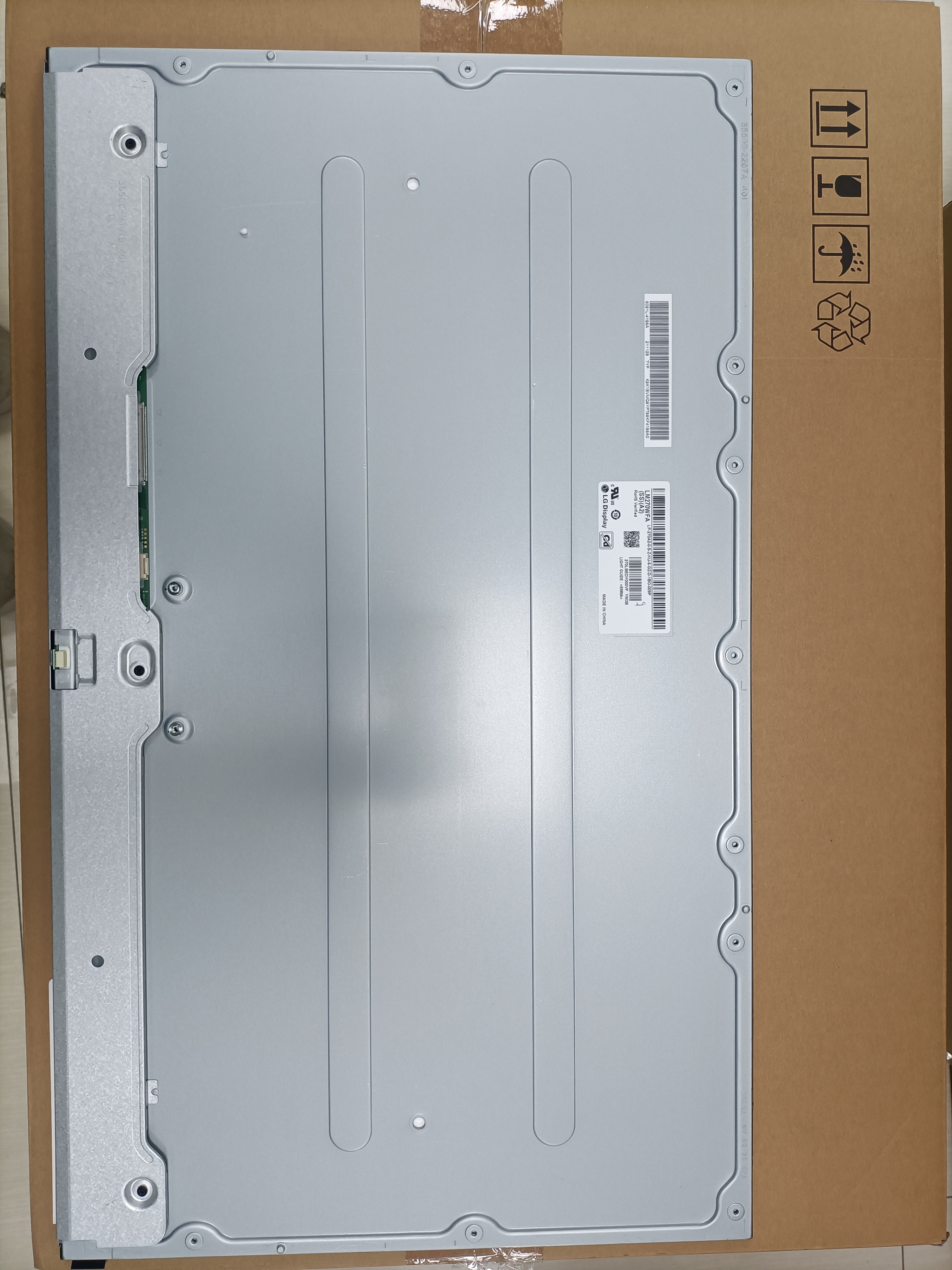

    LM270WFA-SSA1 LG Display 27.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LM270WFA-SSA1
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    LM270WFA-SSA1 LG Display 27.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

    LG Display LM270WFA-SSA1 Application Details

    Basic Information :BrandModelLM270WFA-SSA1
    TypeLCM a-Si TFT-LCDUsed For


    Screen Size27.0"AliasLM270WFA (SS)(A1)
    Environment :Storage Temp.-20 ~~ 60 °COperating Temp.0 ~~ 50 °C

    LG Display LM270WFA-SSA1 Mechanical Details

    Pixel Features :Resolution1920(RGB)×1080, FHDDot Pitch(mm)0.1038×0.3114 (H×V)
    Pixel FormatRGB Vertical StripePixel Pitch(mm)0.3114×0.3114 (H×V) [81PPI]
    Mechanical Size :Active Area(mm)597.888(H) × 336.312(V)Bezel Area(mm)-
    Outline Dim.(mm)607.1(H) × 354.1(V)Depth(mm)7.0 (Typ.)
    Outline Features :Form StyleFlat RectangleOutline Shape3-side borderless
    Aspect Ratio16:9 (H:V)OrientationLandscape type
    Touch Panel :Touch Points10 pointsTouch PanelIn-Cell Touch
    TP ControllerWith controllerTouch SignalUSB
    Mounting :Rear mounting holes (13-M3)
    Other Spec :Weight3.14/3.30Kgs (Typ./Max.)TreatmentGlare (Haze 0%), Hard coating (3H)

    LG Display LM270WFA-SSA1 Optical Details

    Basic Information :Luminance(cd/m²)300 (Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Display ModeIPS, Normally Black, Transmissive
    Best View onSymmetryResponse(ms)14 (Typ.)(G to G)
    Color Performance :White CoordinateX:0.313; Y:0.329Display Colors16.7M (6-bit + Hi-FRC)
    Color Temperature6485KWhite Uniformity1.33 (Max.)(9 points)
    1931 Color Gamut :NTSC Ratio79%sRGB100% coverage
    Adobe RGB78% coverageDCI-P382% coverage
    Rec.202059% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    LG Display LM270WFA-SSA1 Interface Details

    Signal Electrical :Voltage Supply5.0V (Typ.)Current Supply531/807mA (Typ./Max.)
    Consumption2.66/4.03W (Typ./Max.)
    Signal Type :LVDS (2 ch, 8-bit)Signal Voltage-
    Interface Features :PositionTypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    UJUIS100-L30O-C231 pcs30 pins1.0 mmLVDS-30P2C8B-160B

    LG Display LM270WFA-SSA1 Backlight Details

    Backlight Features:Shape4 stringsTypeWLEDPositionEdge light type
    Replacement-Quantity16S4PLife Time30K(Min.) (Hours)
    Lamp Electrical :Voltage Supply45.28±3.2VCurrent Supply85/90mA (Typ./Max.)
    Consumption15.4/16.48W (Typ./Max.)
    Interface Features :PositionTypeConnector
    Interface Detail :BrandModelQuantityPinsPitchPin Configuration
    JSTBM06B-SHJS-TB(HF)1 pcs6 pins1.0 mmBLE-6PINS-CCAACC
    Backlight Driver :No

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.1(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 3.14/3.30Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WFA-SSA1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 16S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WFA-SSA1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.)
