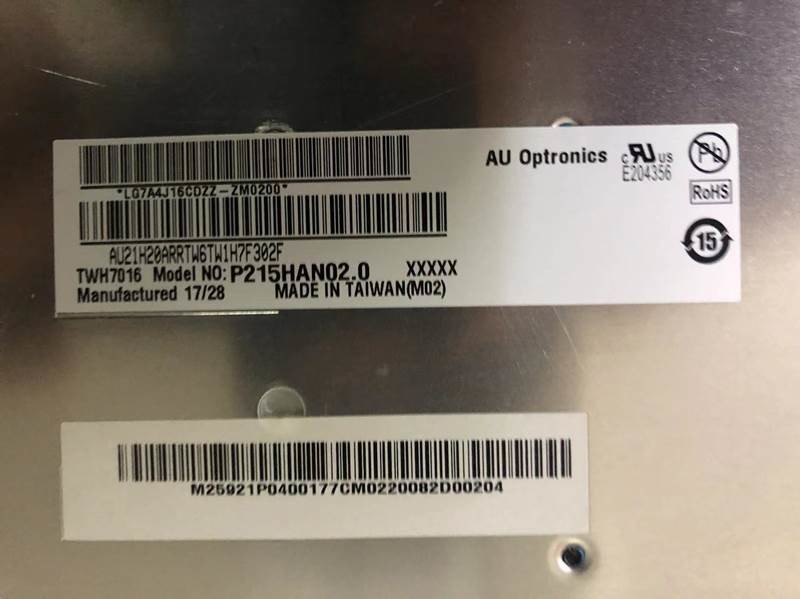

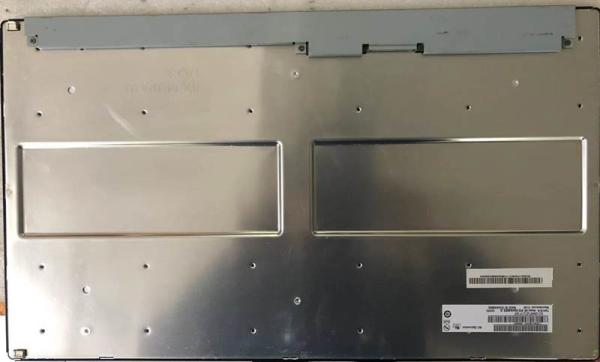

P215HAN02.0 AUO 21.5" 1920(RGB)×1080, 1500 (Typ.)(cd/m²) INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	AUO
Model Number :	P215HAN02.0
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

P215HAN02.0 AUO 21.5" 1920(RGB)×1080, 1500 (Typ.)(cd/m²) INDUSTRIAL LCD DISPLAY

AUO P215HAN02.0 Application Details

Basic Info :	Panel Brand		Panel Model	P215HAN02.0
	Diagonal Size	21.5"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Reliability :	RoHS State		Vibration Rating	1.0G (9.8 m/s²)

AUO P215HAN02.0 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1080 [FHD]	Dot Pitch	0.08265×0.24795 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.24795×0.24795 mm (H×V) [102PPI]
Mechanical Size :	Display Area	476.064×267.786 mm (H×V)	Bezel Area	480.7×271.8 mm (H×V)
Mechanical Size :	Outline Dim.	501.1×292.2 mm (H×V)	Outline Depth	11.2/16.12 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape / Portrait
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (4-M2.5) on left, right bezel
Other Features :	Weight	2.10Kgs (Typ.)	Surface	Antiglare, Hard coating (3H)

AUO P215HAN02.0 Optical Details

Basic Information :	Brightness	1500 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	AHVA, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	73%	sRGB	95% coverage
	Adobe RGB	73% coverage	DCI-P3	76% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-

AUO P215HAN02.0 Backlight Details

Back-light Features:	Lamp Shape	4 strings × 2CN	Lamp Type	WLED	Life Time	50K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	4 strings × 2CN	Position	Edge light type (Top and Bottom)
Lamp Electrical :	Voltage Input	91.8/95.2/109.3V (Min./Typ./Max.)		Current Input	47/51mA (Typ./Max.)
Lamp Electrical :	Consumption	35.8W (Typ.)
Interface Features :	Type	Connector	Position		Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	CviLux	CI1606M1VRA-NH	1.0 mm	6 pins	2 pcs	BLE-6PINS-CCCCNA

AUO P215HAN02.0 Interface Details

Signal Systerm :	LVDS (2 ch, 8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	5.0V (Typ.)		Current Input	0.46/0.55A (Typ./Max.)
Signal Electrical :	Consumption	2.30/2.75W (Typ./Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	P-TWO	187034-30091	1.0 mm	30 pins	1 pcs	LVDS-30P2C8B-160A

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 501.1(W)×292.2(H)×16.12(D) mm, viewing area size of 480.7(W)×271.8(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 2.10Kgs (Typ.). As a AHVA, Normally Black, Transmissive LCM product, P215HAN02.0 can provides 1500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 4 strings × 2CN WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. P215HAN02.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
