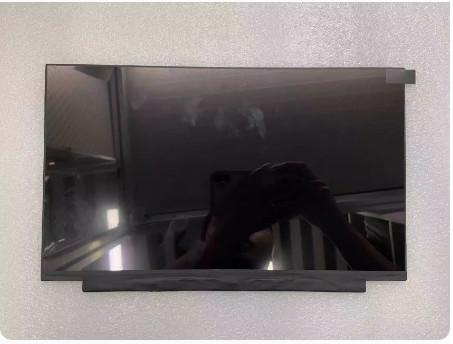

    NV133FHM-N33 BOE 13.3" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : BOE
    Model Number : NV133FHM-N33
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    NV133FHM-N33 BOE 13.3" 1920(RGB)×1080, 250 cd/m² INDUSTRIAL LCD DISPLAY

    BOE NV133FHM-N33 Application Details

    Basic Detail :
    Manufacturer
    Model Name
    NV133FHM-N33
    Panel Type
    a-Si TFT-LCD , LCM
    Another Name
    BOE0849
    Panel Size
    Designed For
    Maximum Ratings :
    OP Temperature
    0 ~ 50 °C
    ST Temperature
    -20 ~ 60 °C
    RoHS
    Vibration Level
    1.5G (14.7 m/s²)

    BOE NV133FHM-N33 Mechanical Details

    Pixel Features :
    Number of Pixel
    1920(RGB)×1080, FHD
    Arrangement
    RGB Vertical Stripe
    Dot Pitch(W×H)
    0.051×0.153 mm
    Pixel Pitch(W×H)
    0.153×0.153 mm [166PPI]
    Physical Size :
    Active Viewing
    293.76(W)×165.24(H) mm
    Overall Dim.
    300.26(W)×187.27(H) mm
    Bezel Opening
    -
    Overall Depth
    3.0 (Max.) mm
    Outline Features :
    Form Shape
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio(W:H)
    16:9
    Shape Style
    Slim (PCBA Flat, T≤3.2mm)
    Fixation :
    Without
    Other Detail :
    Mass
    260g (Typ.)
    Surface
    Glare (Haze 0%), Hard coating (3H)

    BOE NV133FHM-N33 Optical Details

    Basic Detail :
    Luminance
    250 cd/m² (Typ.)
    Contrast Ratio
    800:1 (Typ.) (Transmissive)
    Good View at
    Symmetry
    Response Speed
    30 (Typ.)(Tr+Td) ms
    Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
    Operating Mode
    ADS, Normally Black, Transmissive
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Support Color
    262K (6-bit)
    Color Temperature
    6485K
    White Variation
    1.25/1.67 (Typ.)(5/13 points)
    1931 Color Gamut :
    NTSC Ratio
    47%
    sRGB
    66% coverage
    Adobe RGB
    50% coverage
    DCI-P3
    49% coverage
    Rec.2020
    35% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    BOE NV133FHM-N33 Interface Detail

    Signal Electrical :
    Input Current
    273/454mA (Typ./Max.)
    Input Voltage
    3.3V (Typ.)
    Consumption
    0.9/1.5W (Typ./Max.)
    Signal Interface
    eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
    Interface Features :
    Position
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Amount
    Pin Assignment
    UJU
    0.5 mm
    30 pins
    1 pcs
    EDP-30P2L-020A

    BOE NV133FHM-N33 Lightting Details

    Lamp Features :
    Lamp Type
    WLED
    Amount
    8S4P
    Position
    Edge light type
    Exchange
    -
    Lamp Shape
    4 strings
    Lamp Life
    15K(Min.) (Hours)
    Interface Features :
    Position
    -
    Type
    Included in signal interface
    Backlight Driver :
    With LED Driver
    Driver Electrical :
    Input Voltage
    5.0/12.0/21.0V (Min./Typ./Max.)
    Input Current
    -
    Consumption
    2.5W (Typ.)

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 300.26(W)×187.27(H)×3(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 260g (Typ.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV133FHM-N33 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV133FHM-N33 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
