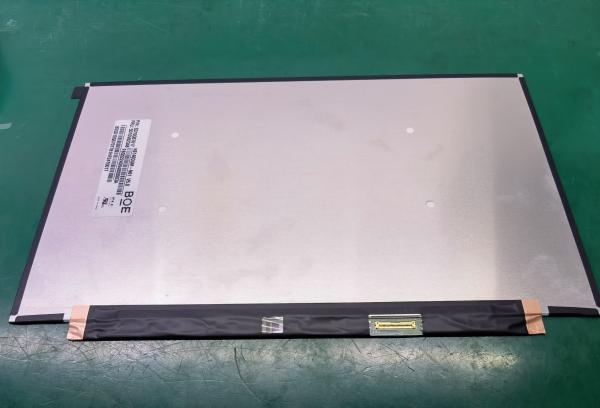

    NV140QUM-N53 BOE 14.0" 3840(RGB)×2160, 500 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : BOE
    Model Number : NV140QUM-N53
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    NV140QUM-N53 BOE 14.0" 3840(RGB)×2160, 500 cd/m² INDUSTRIAL LCD DISPLAY

    BOE NV140QUM-N53 Application Details

    Basic Info :Panel BrandPanel ModelNV140QUM-N53
    Diagonal Size14.0"Application
    Panel Typea-Si TFT-LCD , LCMModel AliasBOE07C8
    Reliability :Operating Temp.0 ~ 50 °CStorage Temp.-20 ~ 70 °C
    RoHS StateVibration Rating-

    BOE NV140QUM-N53 Mechanical Details

    Pixel Features :Pixel Format3840(RGB)×2160 [UHD]Dot Pitch0.02685×0.08055 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.08055×0.08055 mm (H×V) [315PPI]
    Mechanical Size :Display Area309.31×173.99 mm (H×V)Bezel Area-
    Outline Dim.315.01×196.14 mm (H×V)Outline Depth2.2/2.4 (Typ./Max.) mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:9 (H:V)Shape StyleSlim (PCBA Flat, T≤3.2mm)
    Holes & Brackets :Without
    Other Features :Weight215g (Max.)SurfaceHard coating (3H)

    BOE NV140QUM-N53 Optical Details

    Basic Information :Brightness500 cd/m² (Typ.), HDR400Contrast Ratio1400:1 (Typ.) (Transmissive)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Optical ModeADS, Normally Black, Transmissive
    Viewing DirectionSymmetryResponse Time25 (Typ.)(Tr+Td) (ms)
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers16.7M (8-bit)
    Color Temperature6485KWhite Uniformity1.25/1.67 (Max.)(5/13 points)
    1931 Color Gamut :NTSC Ratio88%sRGB100% coverage
    Adobe RGB87% coverageDCI-P391% coverage
    Rec.202066% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    BOE NV140QUM-N53 Backlight Details

    Back-light Features:Lamp Shape8 stringsLamp TypeWLEDLife Time15K(Min.) (Hours)
    Replacement-Amount10S8PPositionEdge light type
    Interface Features :TypeIncluded in signal interfacePosition-Lamp DriverWith LED Driver
    Driver Electrical :Voltage Input5.0/12.0/24.0V (Min./Typ./Max.)Current Input-
    Consumption5.7W (Max.)

    BOE NV140QUM-N53 Interface Details

    Signal Systerm :eDP (4 Lanes), eDP1.3, HBR2 (5.4G/lane)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input424.2/466.7mA (Typ./Max.)
    Consumption1.7W (Max.)
    Interface Features :TypeConnectorPosition
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    STMMSAK24025P400.5 mm40 pins1 pcs

    whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 315 PPI. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.01(W)×196.14(H)×2.4(D) mm, with surface treament of Hard coating (3H), net weight of 215g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140QUM-N53 can provides 500 cd/m² display brightness 1400:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (DCI-P3). This product adopted 10S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140QUM-N53 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
