NE135GXM-N61 BOE 13.5" 2256(RGB)×1504 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	BOE
Model Number :	NE135GXM-N61
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

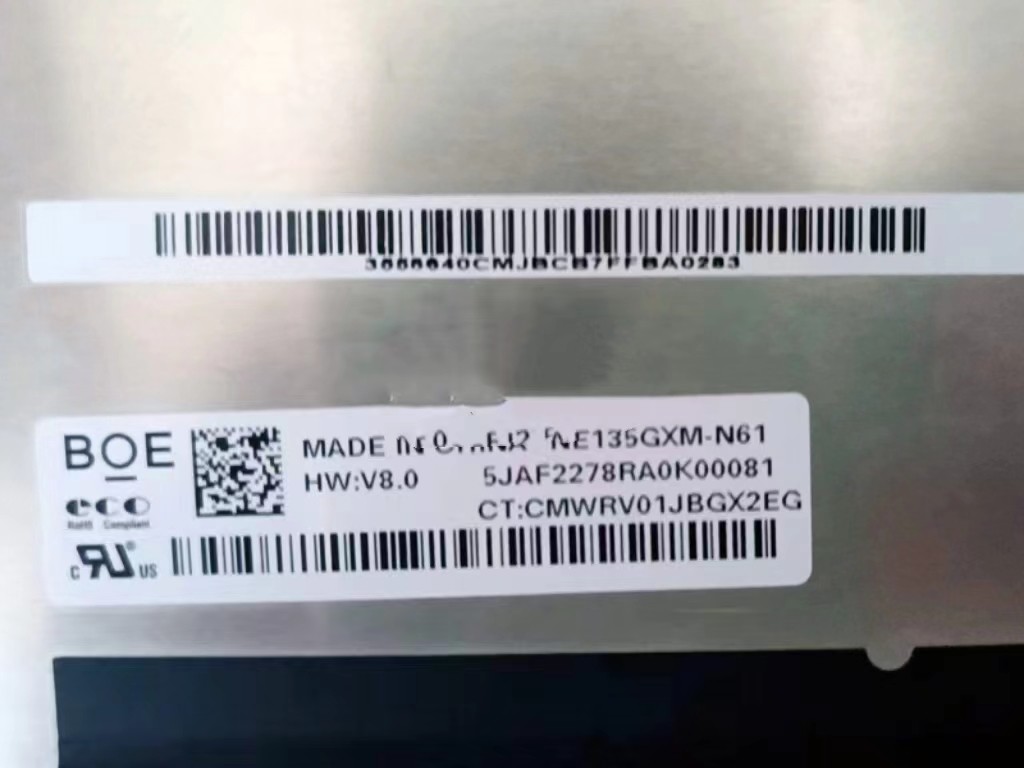

NE135GXM-N61 BOE 13.5" 2256(RGB)×1504 400 cd/m² INDUSTRIAL LCD DISPLAY

BOE NE135GXM-N61 Application Details

Basic Info :	Panel Brand		Panel Model	NE135GXM-N61
	Diagonal Size	13.5"	Application
	Panel Type	Oxide TFT-LCD , LCM	Model Alias	BOE0A76
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Reliability :	RoHS State		Vibration Rating	1.5G (14.7 m/s²)

BOE NE135GXM-N61 Mechanical Details

Pixel Features :	Pixel Format	2256(RGB)×1504	Dot Pitch	0.0421×0.1263 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.1263×0.1263 mm (H×V) [201PPI]
Mechanical Size :	Display Area	284.933×189.955 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	289.93×200.91 mm (H×V)	Outline Depth	2.0/3.8 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	15:10 (H:V)	Shape Style	Slim (PCBA Bent, T≤3.0mm)
Holes & Brackets :	Without
Other Features :	Weight	200g (Max.)	Surface	Antiglare, Hard coating (3H)

BOE NE135GXM-N61 Optical Details

Basic Information :	Brightness	400 cd/m² (Typ.)	Contrast Ratio	1500:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Optical Mode	ADS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	30 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.60 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	71%	sRGB	100% coverage
	Adobe RGB	74% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE NE135GXM-N61 Backlight Details

Back-light Features:	Lamp Shape	6 strings	Lamp Type	WLED	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	9S6P	Position	Edge light type (Bottom side)
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	5.0/12.0/21.0V (Min./Typ./Max.)		Current Input	-
Driver Electrical :	Consumption	2.8W (Max.)

BOE NE135GXM-N61 Interface Details

Signal Systerm :	eDP (4 Lanes), eDP1.4b, HBR1 (2.7G/lane)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.0V (Typ.)		Current Input	181.8mA (Max.)
Signal Electrical :	Consumption	0.6W (Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	STM	MSAK24025P40G	0.5 mm	40 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 284.933(W)×189.955(H) mm, outline size of 289.93(W)×200.91(H)×3.8(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE135GXM-N61 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NE135GXM-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.0V (Typ.).
