P1160FHF1MA00 TIANMA 11.6" 1920(RGB)×1080, 1600 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap P1160FHF1MA00 TIANMA 11.6" 1920(RGB)×1080, 1600 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers

    Buy cheap P1160FHF1MA00 TIANMA 11.6" 1920(RGB)×1080, 1600 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap P1160FHF1MA00 TIANMA 11.6" 1920(RGB)×1080, 1600 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers
    • Buy cheap P1160FHF1MA00 TIANMA 11.6" 1920(RGB)×1080, 1600 cd/m² INDUSTRIAL LCD DISPLAY from wholesalers

    P1160FHF1MA00 TIANMA 11.6" 1920(RGB)×1080, 1600 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : P1160FHF1MA00
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    P1160FHF1MA00 TIANMA 11.6" 1920(RGB)×1080, 1600 cd/m² INDUSTRIAL LCD DISPLAY



    TIANMA P1160FHF1MA00 Carton Details

    Package TypePcs/PackageBox/PackagePackage LWH (mm)G.W (kgs)Volume (m³)Remarks
    Carton141530×430×2749.930.0624
    Pallet28020N/AN/AN/A

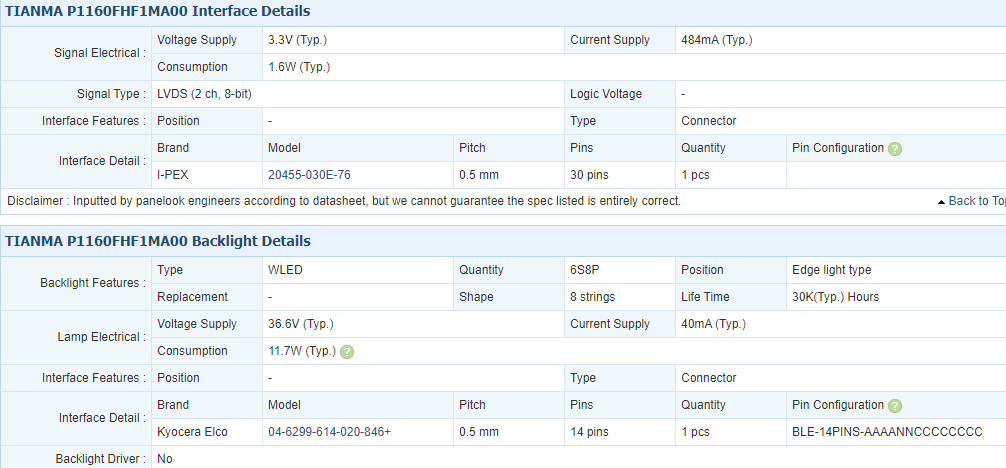

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.32(W)×144.18(H) mm, outline size of 273.5(W)×166.5(H)×11.5(D) mm, with surface treament of Hard coating, net weight of 530g. As a SFT, Normally Black, Transmissive LCM product, P1160FHF1MA00 can provides 1600 cd/m² display brightness 900:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. P1160FHF1MA00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
