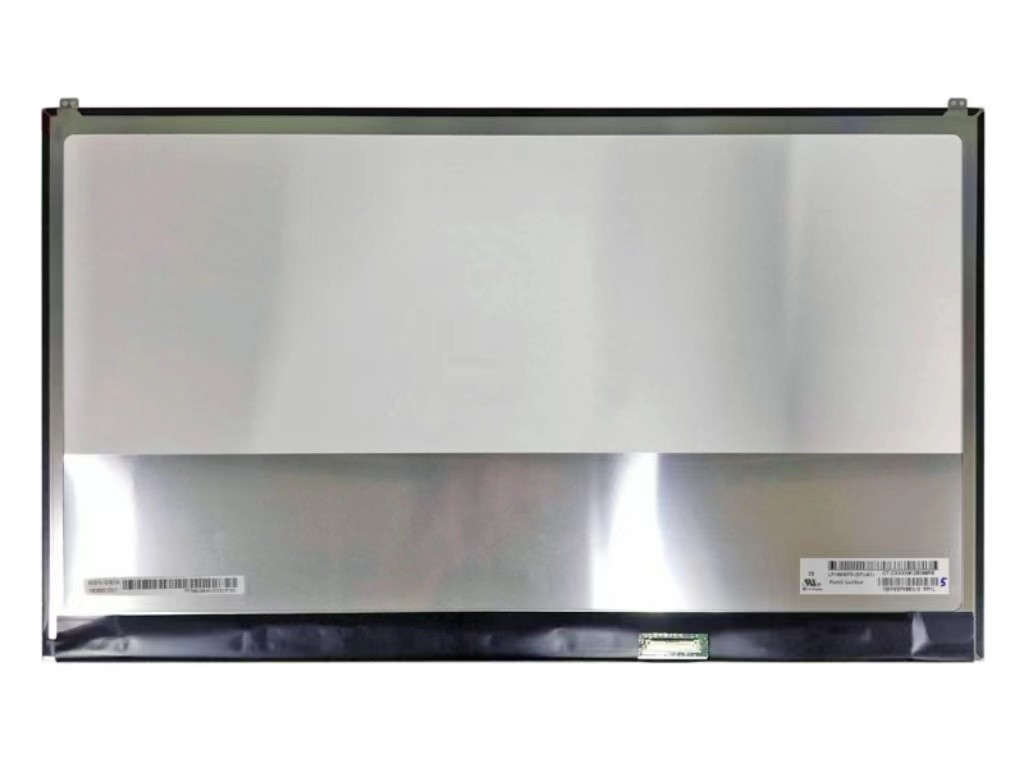

    LP156WF8-SPA1 LG Display 15.6" 1920(RGB)×1080, 300 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LP156WF8-SPA1
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROWS
    Delivery Time : 1-2DAYS
    • Product Details
    • Company Profile

    LP156WF8-SPA1 LG Display 15.6" 1920(RGB)×1080, 300 cd/m² (Typ.) INDUSTRIAL LCD DISPLAY

    LG Display LP156WF8-SPA1 Application Details

    Basic Info :
    Panel Brand
    Panel Model
    LP156WF8-SPA1
    Diagonal Size
    Application
    Panel Type
    a-Si TFT-LCD , LCM
    Model Alias
    LP156WF8 (SP)(A1), LGD04EB
    Reliability :
    Operating Temp.
    0 ~ 50 °C
    Storage Temp.
    -20 ~ 60 °C

    LG Display LP156WF8-SPA1 Mechanical Details

    Pixel Features :
    Pixel Format
    1920(RGB)×1080, FHD
    Dot Pitch
    0.05975×0.17925 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.17925×0.17925 mm (H×V) [141PPI]
    Mechanical Size :
    Display Area
    344.16×193.59 mm (H×V)
    Bezel Area
    347.26×196.68 mm (H×V)
    Outline Dim.
    349.96×210.3 mm (H×V)
    Outline Depth
    2.3/4.6 (Typ./Max.) mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    16:9 (H:V)
    Shape Style
    Slim (PCBA Bent, T≤3.0mm)
    Holes & Brackets :
    Face mounting holes (4 pcs) on up slugs
    Other Features :
    Weight
    225g (Max.)
    Surface
    Glare (Haze 0%), Hard coating (3H)

    LG Display LP156WF8-SPA1 Optical Details

    Basic Information :
    Brightness
    300 cd/m² (Typ.)
    Contrast Ratio
    800:1 (Typ.) (Transmissive)
    Viewing Angle
    80/80/80/80 (Min.)(CR≥10)
    Optical Mode
    IPS, Normally Black, Transmissive
    Viewing Direction
    Symmetry
    Response Time
    25 (Typ.)(Tr+Td) ms
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Color Numbers
    262K (6-bit)
    Color Temperature
    6485K
    Uniformity
    1.40/1.60 (Max.)(5/13 points)
    1931 Color Gamut :
    NTSC Ratio
    61%
    sRGB
    81% coverage
    Adobe RGB
    63% coverage
    DCI-P3
    64% coverage
    Rec.2020
    46% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    LG Display LP156WF8-SPA1 Interface Detail

    Signal Systerm :
    eDP (2 Lanes), HBR1 (2.7G/lane)
    Logic Voltage
    -
    Signal Electrical :
    Voltage Input
    3.3V (Typ.)
    Current Input
    257/296mA (Typ./Max.)
    Consumption
    0.85/0.98W (Typ./Max.)
    Interface Features :
    Type
    Connector
    Position
    Connector Detail :
    Brand
    Model
    Pin Pitch
    Pins
    Amount
    Configuration
    HRS
    0.5 mm
    30 pins
    1 pcs

    whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 349.96(W)×210.3(H)×4.6(D) mm, viewing area size of 347.26(W)×196.68(H) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 225g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP156WF8-SPA1 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 61% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 12K hours, With LED Driver. LP156WF8-SPA1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
