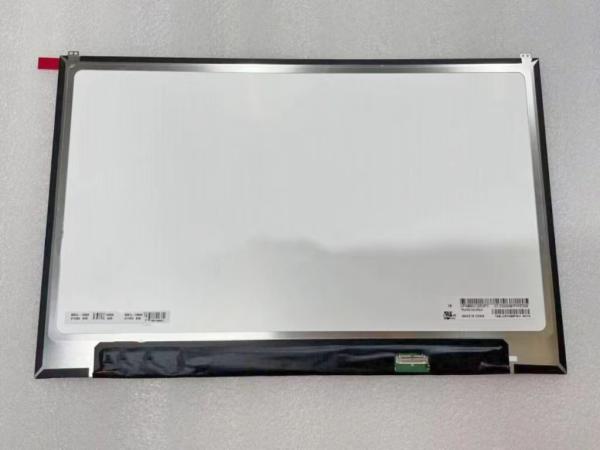

LP140WU1-SPF1 14.0" 1920(RGB)×1200, 300 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG Display
Model Number :	LP140WU1-SPF1
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

LP140WU1-SPF1 14.0" 1920(RGB)×1200, 300 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LP140WU1-SPF1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LP140WU1-SPF1	a-Si TFT-LCD , LCM	LP140WU1 (SP)(F1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP140WU1-SPF1 Mechanical Features

Panel Size :	14.0"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×1200 [WUXGA]	RGB Vertical Stripe	0.15708×0.15708 [161PPI]	0.05236×0.15708
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	301.594(H) × 188.496(V)	-	306.59(H) × 198.4(V)	2.4/4.5 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:10 (H:V)	Slim (PCBA Bent, T≤3.0mm)
Mounting :	Without
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	225g (Max.)	-	Antiglare, Hard coating (3H)

LG Display LP140WU1-SPF1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	300 (Typ.)	85/85/85/85 (Typ.)(CR≥10)	30 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	IPS, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
White Variation :	1.40/1.60 (Max.)(5/13 points)

LG Display LP140WU1-SPF1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	-	-	15K(Min.)	-
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	With LED Driver				Included in signal interface
Driver Electrical :	Voltage Supply		Current Supply			Power Consumption
Driver Electrical :	5.0/12.0/20.0V (Min./Typ./Max.)

LG Display LP140WU1-SPF1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	3.3V (Typ.)		97/107mA (Typ./Max.)			0.32/0.35W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		eDP (2 Lanes), eDP1.4, HBR1 (2.7G/lane)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	LS Mtron	GT05Q-30S-H10-MN	0.5 mm	30 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.59(W)×198.4(H)×4.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 225g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LP140WU1-SPF1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LP140WU1-SPF1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
