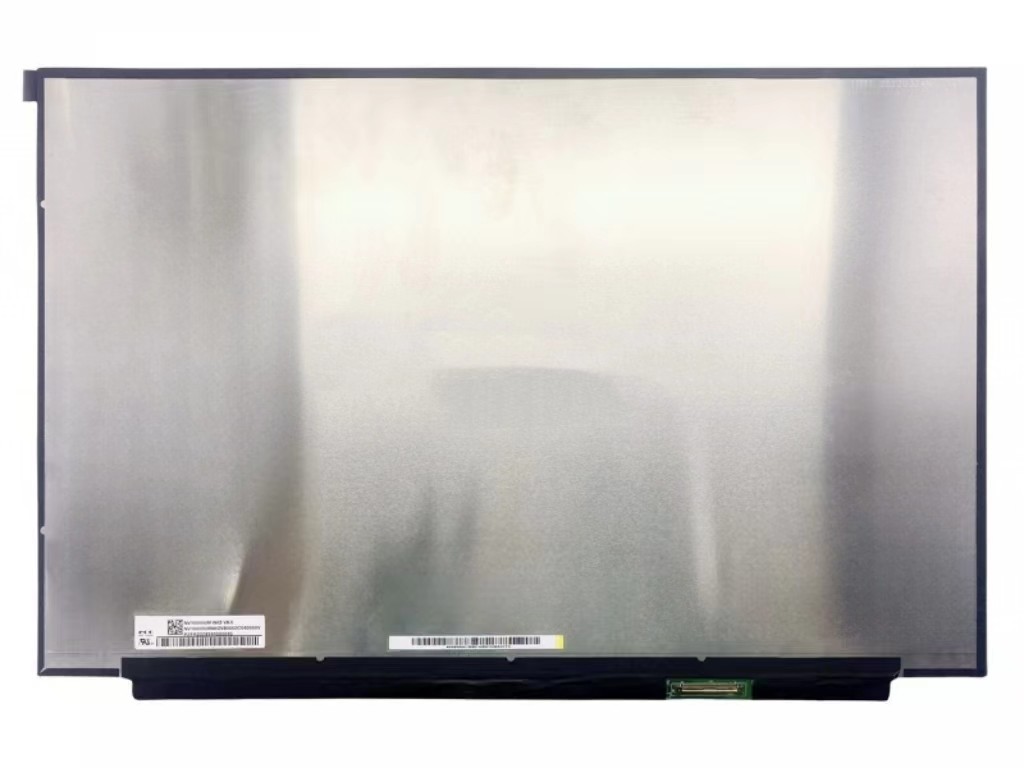

NV160WUM-NX2 BOE 16.0" 1920(RGB)×1200, 500 cd/m² INDUSTRIAL LCD DISPLAY

BOE NV160WUM-NX2 Application Details

Basic Info :	Panel Brand		Panel Model	NV160WUM-NX2
	Diagonal Size	16.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	BOE0A6E
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Reliability :	RoHS State		Vibration Rating	1.5G (14.7 m/s²)

BOE NV160WUM-NX2 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1200 [WUXGA]	Dot Pitch	0.05984×0.17952 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.17952×0.17952 mm (H×V) [141PPI]
Mechanical Size :	Display Area	344.68×215.42 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	350.44×234 mm (H×V)	Outline Depth	3.0 (Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:10 (H:V)	Shape Style	Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :	Without
Other Features :	Weight	380g (Max.)	Surface	Antiglare, Hard coating (3H)

BOE NV160WUM-NX2 Optical Details

Basic Information :	Brightness	500 cd/m² (Typ.)	Contrast Ratio	1200:1 (Typ.) (Transmissive)
	Viewing Angle	80/80/80/80 (Min.)(CR≥10)	Optical Mode	ADS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	10 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.52 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	75%	sRGB	100% coverage
	Adobe RGB	77% coverage	DCI-P3	78% coverage
	Rec.2020	56% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE NV160WUM-NX2 Backlight Details

Back-light Features:	Lamp Shape	4 strings × 2CN	Lamp Type	WLED	Life Time	15K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	11S4P×2CN	Position	Edge light type (Bottom side)
Interface Features :	Type	Included in signal interface	Position	-	Lamp Driver	With LED Driver
Driver Electrical :	Voltage Input	5.0/12.0/21.0V (Min./Typ./Max.)		Current Input	550mA (Max.)
Driver Electrical :	Consumption	6.6W (Max.)

BOE NV160WUM-NX2 Interface Details

Signal Systerm :	eDP (4 Lanes), eDP1.4b, HBR2 (5.4G/lane)			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	733.3mA (Max.)
Signal Electrical :	Consumption	2.2W (Max.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	STM	MSAK24025P40G	0.5 mm	40 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.68(W)×215.42(H) mm, outline size of 350.44(W)×234(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 380g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV160WUM-NX2 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 11S4P×2CN WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV160WUM-NX2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
