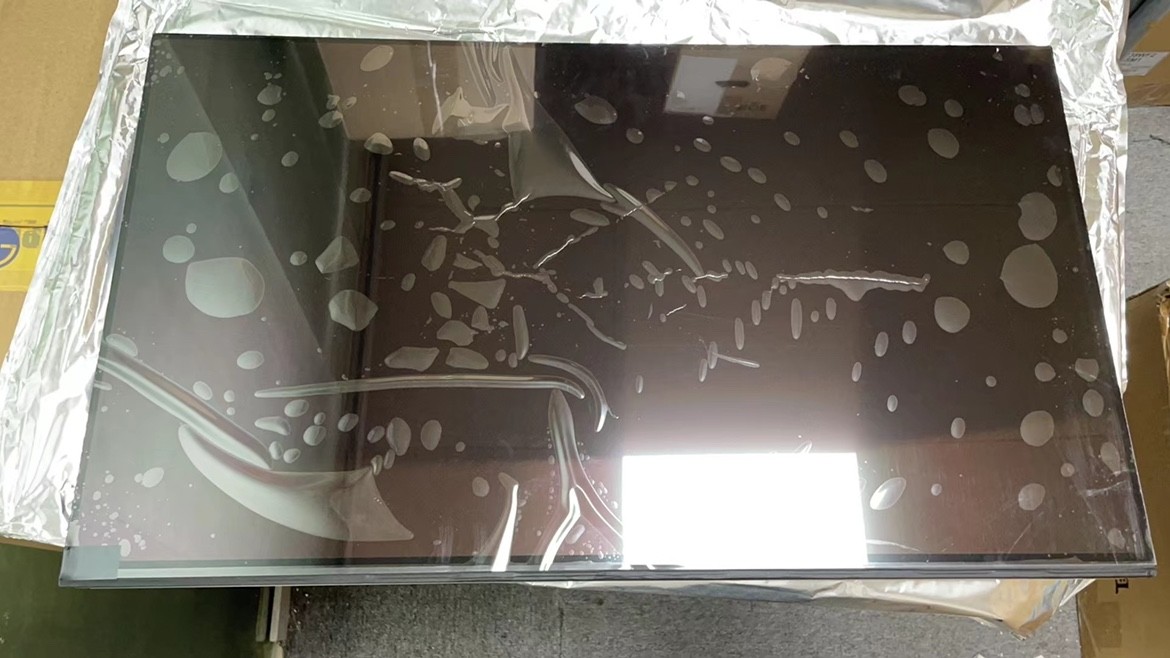

MV270FHM-N40 BOE 27.0" 1920(RGB)×1080, 300 cd/m² INDUSTRIAL LCD DISPLAY

BOE MV270FHM-N40 Application Details

Basic Information :	Brand		Model	MV270FHM-N40
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	27.0"	Alias	-
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C
Environment :	RoHS		Vibration	1.5G (14.7 m/s²)

BOE MV270FHM-N40 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.1038×0.3114 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.3114×0.3114 (H×V) [81PPI]
Mechanical Size :	Active Area(mm)	597.888(H) × 336.312(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	607.1(H) × 354.1(V)	Depth(mm)	6.9/13.1 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	3-side borderless
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Rear mounting holes (17-M3)
Other Spec :	Weight	3.22Kgs (Typ.)	Treatment	Antiglare, Hard coating (3H)

BOE MV270FHM-N40 Optical Details

Basic Information :	Luminance(cd/m²)	300 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	ADS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	14 (Typ.)(G to G)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	78%	sRGB	98% coverage
	Adobe RGB	76% coverage	DCI-P3	80% coverage
	Rec.2020	58% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE MV270FHM-N40 Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	0.7/1.3A (Typ./Max.)
Signal Electrical :	Consumption	3.5/6.5W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	UJU	IS100-L30R-C23	1 pcs	30 pins	1.0 mm

BOE MV270FHM-N40 Backlight Details

Backlight Features:	Shape	4 strings	Type	WLED	Position	Edge light type (Bottom side)
Backlight Features:	Replacement	-	Quantity	23S4P	Life Time	30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	69±4.6V		Current Supply	45mA (Typ.)
Lamp Electrical :	Consumption	12.42/13.25W (Typ./Max.)
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	YEONHO	10035WS-H06D	1 pcs	6 pins	1.0 mm	BLE-6PINS-CCAACC
Backlight Driver :	No

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.1(H)×13.1(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.22Kgs (Typ.). As a ADS, Normally Black, Transmissive LCM product, MV270FHM-N40 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 23S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. MV270FHM-N40 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.).
