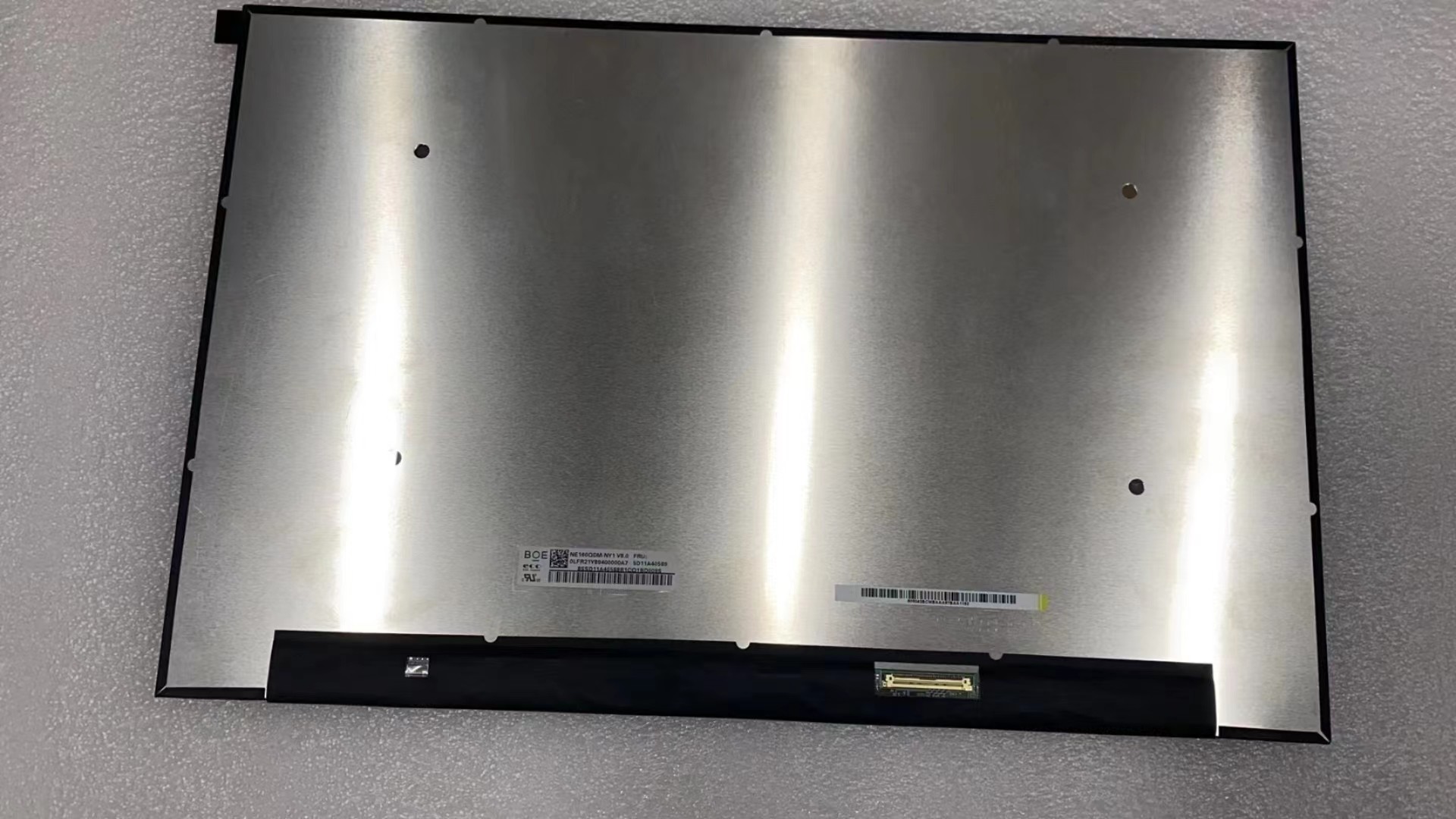

NE160QDM-NY2 BOE 16.0" 2560(RGB)×1600, 350 cd/m² INDUSTRIAL LCD DISPLAY

BOE NE160QDM-NY2 Application Details

Basic Detail :	Manufacturer		Model Name	NE160QDM-NY2
	Panel Type	Oxide TFT-LCD , LCM	Another Name	BOE0A20
	Panel Size	16.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	Vibration Level	1.5G (14.7 m/s²)

BOE NE160QDM-NY2 Mechanical Details

Pixel Features :	Number of Pixel	2560(RGB)×1600 [WQXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.04488×0.13464 mm	Pixel Pitch(W×H)	0.13464×0.13464 mm [188PPI]
Physical Size :	Active Viewing	344.678(W)×215.424(H) mm	Overall Dim.	349.68(W)×231.42(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	2.45/3.0 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:10	Shape Style	Slim (PCBA Flat, T≤3.2mm)
Fixation :	Without
Other Detail :	Mass	312g (Max.)	Surface	Antiglare, Hard coating (3H)

BOE NE160QDM-NY2 Optical Details

Basic Information :	Luminance	350 cd/m² (Typ.)	Contrast Ratio	1200 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	9 (Typ.)(Tr+Td) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	ADS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	1.06B (8-bit + FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.67 (Typ./Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	76%	sRGB	100% coverage
	Adobe RGB	78% coverage	DCI-P3	79% coverage
	Rec.2020	57% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

BOE NE160QDM-NY2 Interface Details

Signal Electrical :	Input Current	378.8mA (Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	1.25W (Max.)	Signal Interface	eDP (4 Lanes), eDP1.4, HBR3 (8.1G/lane)
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	STM	MSAK24025P40	1 pcs	0.5 mm	40 pins

BOE NE160QDM-NY2 Lightting Details

Lamp Features:	Lamp Shape	6 strings	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	10S6P	Life	15K(Min.) (Hours)
Interface Features :	Position	-	Physical Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current	398.3mA (Max.)		Input Voltage	5/12/21V (Typ./Max.)
Driver Electrical :	Consumption	4.78W (Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.678(W)×215.424(H) mm, outline size of 349.68(W)×231.42(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 312g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE160QDM-NY2 can provides 350 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + FRC gray scale signal for each dot, thus presenting a palette of 1.06B colors, also with performance of color gamut 100% (sRGB). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE160QDM-NY2 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
