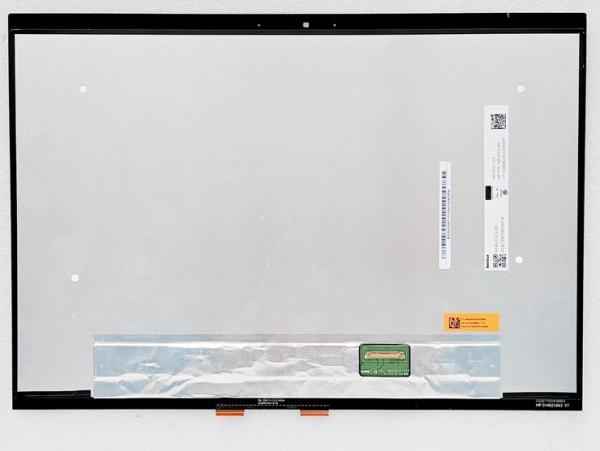

N140JCG-GS9 Innolux 14.0" 1920(RGB)×1200, 400 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	Innolux
Model Number :	N140JCG-GS9
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

N140JCG-GS9 Innolux 14.0" 1920(RGB)×1200, 400 cd/m² INDUSTRIAL LCD DISPLAY

Innolux N140JCG-GS9 Application Details

Basic Detail :	Manufacturer		Model Name	N140JCG-GS9
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	14.0 inch	Designed For
Maximum Ratings :	OP Temperature	0 ~ 50 °C	ST Temperature	-20 ~ 60 °C
Maximum Ratings :	Vibration Level	1.5G (14.7 m/s²)

Innolux N140JCG-GS9 Mechanical Details

Pixel Features :	Number of Pixel	1920(RGB)×1200 [WUXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.05236×0.15708 mm	Pixel Pitch(W×H)	0.15708×0.15708 mm [161PPI]
Physical Size :	Active Viewing	301.594(W)×188.496(H) mm	Overall Dim.	307.29(W)×199.25(H) mm
Physical Size :	Bezel Opening	-	Overall Depth	1.90/3.80 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	16:10	Shape Style	Slim (PCBA Bent, T≤3.0mm)
Fixation :	Without
Other Detail :	Mass	192/205g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

Innolux N140JCG-GS9 Optical Details

Basic Information :	Luminance	400 cd/m² (Typ.)	Contrast Ratio	1500 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	16/14 (Typ.)(Tr/Tf) (ms)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	AAS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25/1.54 (Max.)(5/13 points)
1931 Color Gamut :	NTSC Ratio	71%	sRGB	100% coverage
	Adobe RGB	74% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux N140JCG-GS9 Interface Details

Signal Electrical :	Input Current	133/149mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	0.49W (Max.)	Signal Interface	eDP (2 Lanes), eDP1.4
Interface Features :	Position		Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	I-PEX	20455-030E-76	1 pcs	0.5 mm	30 pins	EDP-30P2L-020A

Innolux N140JCG-GS9 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	15K(Min.) (Hours)
Interface Features :	Position	-	Physical Type	Included in signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Input Current	-		Input Voltage	5/12/21V (Min./Typ./Max.)
Driver Electrical :	Consumption	2.24WW (Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 307.29(W)×199.25(H)×3.8(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 192/205g (Typ./Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a AAS, Normally Black, Transmissive LCM product, N140JCG-GS9 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 16/14 (Typ.)(Tr/Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. N140JCG-GS9 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
