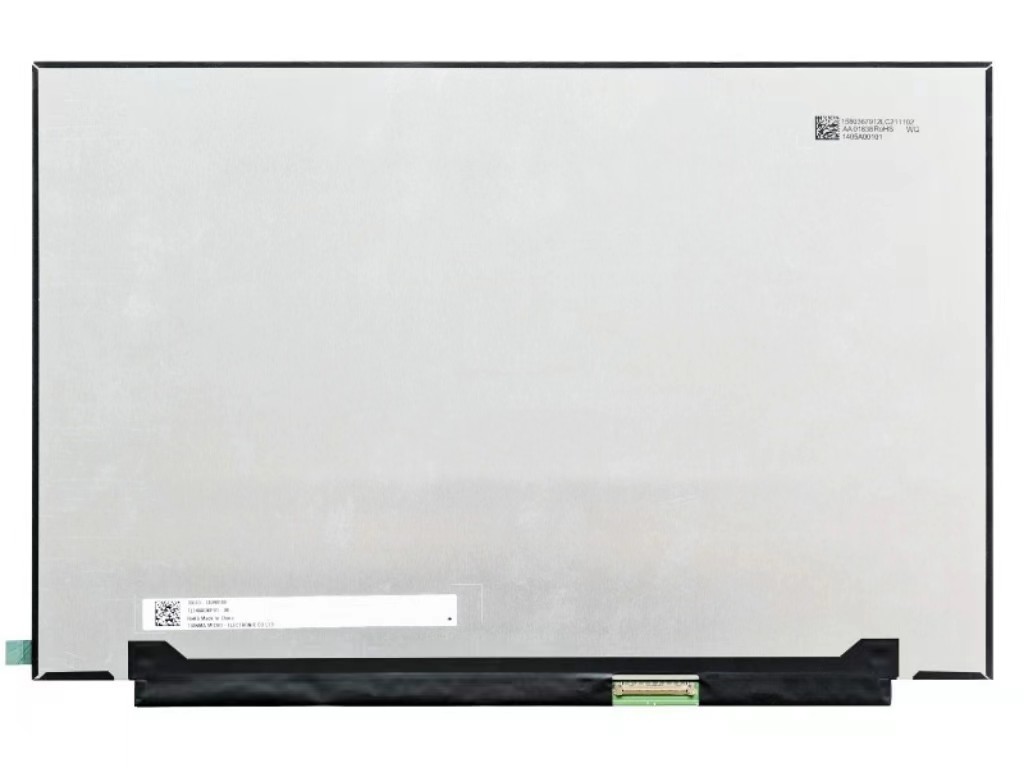

TL140ADXP01 TIANMA 14.0" 2560(RGB)×1600 500 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TL140ADXP01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

TL140ADXP01 TIANMA 14.0" 2560(RGB)×1600 500 cd/m² INDUSTRIAL LCD DISPLAY

TIANMA TL140ADXP01 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		TL140ADXP01	LTPS TFT-LCD , LCM	TMX1481
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

TIANMA TL140ADXP01 Mechanical Features

Panel Size :	14.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	2560(RGB)×1600	RGB Vertical Stripe	0.03927×0.11781 mm	0.11781×0.11781 mm [215PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	301.594×188.496 mm	-	306.594×206.226 mm	2.3±0.1 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:10 (W : H)	Landscape type	Slim (PCBA Flat, T≤3.2mm)
Fixation :	Without
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	220g (Typ.)	Antiglare

TIANMA TL140ADXP01 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	500 cd/m² (Typ.)	SFT, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	88/88/88/88 (Typ.)(CR≥10)	Symmetry	9 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamut :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	96%	100%	88%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	100%	72%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25/1.50 (Max.)(5/13 points)

TIANMA TL140ADXP01 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	400mA (Typ.)		3.3V (Typ.)			1.35/1.42W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	eDP (4 Lanes), eDP1.3
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	I-PEX	20455-040E-76	1 pcs	0.5 mm	40 pins

TIANMA TL140ADXP01 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	6 strings	11S6P	-	-
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Included in signal interface	With LED Driver
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	-		5.0/12.0/21.0V (Min./Typ./Max.)

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.594(W)×206.226(H)×2.4(D) mm, with surface treament of Antiglare, net weight of 220g (Typ.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a SFT, Normally Black, Transmissive LCM product, TL140ADXP01 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. TL140ADXP01 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
