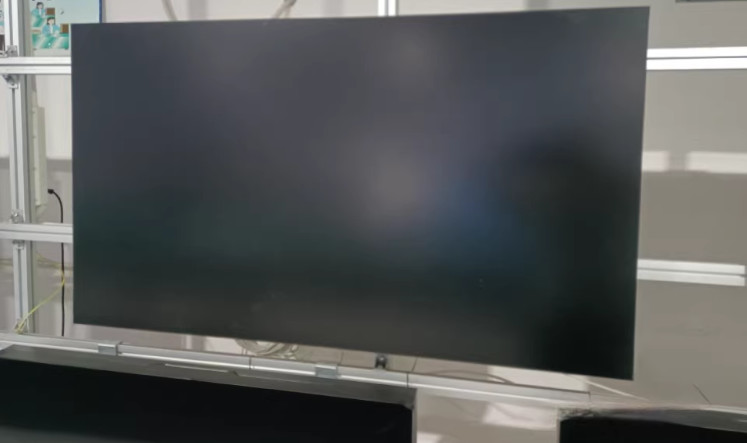

P460HVN03.3 AUO 46" 1920(RGB)×1080, 700 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	AUO
Model Number :	P460HVN03.3
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/WESTERN UNION/ESCROWS
Delivery Time :	1-2DAYS

Add to Cart

Product Details
Company Profile

P460HVN03.3 AUO 46" 1920(RGB)×1080, 700 cd/m² INDUSTRIAL LCD DISPLAY

AUO P460HVN03.3 Application Details

Basic Info :	Panel Brand		Panel Model	P460HVN03.3
	Diagonal Size	46"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C
Reliability :	RoHS State		Vibration Rating	1.0G (9.8 m/s²)

AUO P460HVN03.3 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1080 [FHD]	Dot Pitch	0.17675×0.53025 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.53025×0.53025 mm (H×V) [47PPI]
Mechanical Size :	Display Area	1018.08×572.67 mm (H×V)	Bezel Area	1024.48×579.07 mm (H×V)
Mechanical Size :	Outline Dim.	1044.08×598.67 mm (H×V)	Outline Depth	9.9 (Typ.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape / Portrait
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style
Holes & Brackets :	Side mounting holes (12-M3) on left, right, up, down bezel
Videowall Seam :	26.0 mm (Active to Active)
Other Features :	Weight	10.9Kgs (Typ.)	Surface	Antiglare (Haze 28%)

AUO P460HVN03.3 Optical Details

Basic Information :	Brightness	700 cd/m² (Typ.)	Contrast Ratio	4000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	AMVA3, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	6.5 (Typ.)(G to G) (ms)
Color Performance :	Chromaticity	Wx:0.280; Wy:0.290	Color Numbers	16.7M/1.07B (8-bit / 8-bit + Hi-FRC)
Color Performance :	Color Temperature	9969K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	73%	sRGB	99% coverage
	Adobe RGB	75% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-

AUO P460HVN03.3 Backlight Details

Back-light Features:	Lamp Shape	-	Lamp Type	WLED	Life Time	50K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	-	Position	Edge light type
Interface Features :	Type	Connector	Position	-	Lamp Driver	With LED Driver
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JST	S14B-PHA-SM3-TB	2.0 mm	14 pins	1 pcs
Driver Electrical :	Voltage Input	24.0±1.2V		Current Input	3.21/3.41A (Typ./Max.)
Driver Electrical :	Consumption	77.1/81.9W (Typ./Max.)

AUO P460HVN03.3 Interface Details

Signal Systerm :	LVDS (2 ch, 8/10-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	12.0V (Typ.)		Current Input	0.9/1.08A (Typ./Max.)
Signal Electrical :	Consumption	10.8/12.96W (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	P-TWO	187059-51221-1	0.5 mm	51 pins	1 pcs

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 1018.08(W)×572.67(H) mm, outline size of 1044.08(W)×598.67(H) mm, viewing area size of 1024.48(W)×579.07(H) mm, with surface treament of Antiglare (Haze 28%), net weight of 10.9Kgs (Typ.). As a AMVA3, Normally Black, Transmissive LCM product, P460HVN03.3 can provides 700 cd/m² display brightness 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 6.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. P460HVN03.3 utilizes LVDS (2 ch, 8/10-bit) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 12.0V (Typ.).
