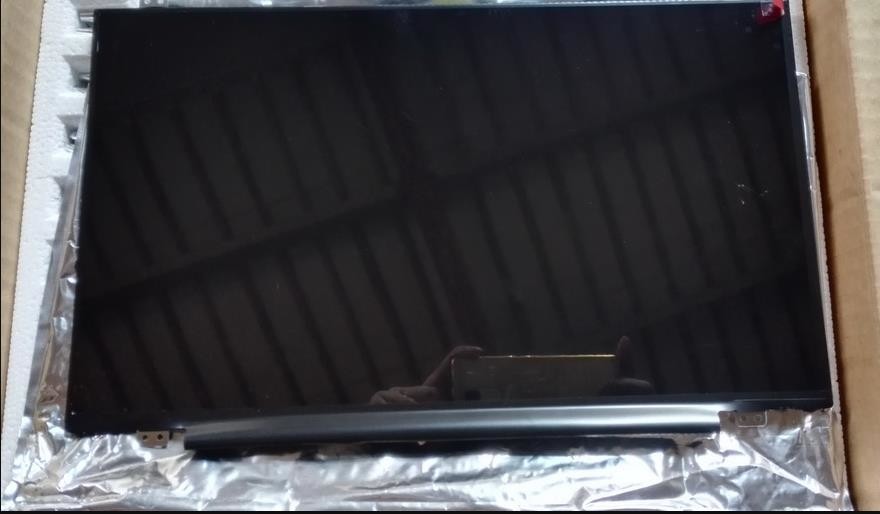

92PPI 23.8" Square Tft Display 250cd/m2 LM238WF2-SSG1 89/89/89/89 (Min.)(CR≥10)

LG Display LM238WF2-SSG1 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		LM238WF2-SSG1	a-Si TFT-LCD , LCM	LM238WF2 (SS)(G1)
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM238WF2-SSG1 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	250 (Typ.)	89/89/89/89 (Typ.)(CR≥10)	14 (Typ.)(G to G)
	Best View on	Display Mode	Contrast Ratio
	Symmetry	AH-IPS, Normally Black, Transmissive	1000 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	73%	97%	75%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	76%	54%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.33 (Max.)(9 points)

LG Display LM238WF2-SSG1 Mechanical Features

Panel Size :	23.8"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	1920(RGB)×1080 [FHD]	RGB Vertical Stripe	0.2745×0.2745 [92PPI]	0.0915×0.2745
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	527.04(H) × 296.46(V)	-	535(H) × 313(V)	8.7/13.2 (Typ./Max.) mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	16:9 (H:V)	3-side borderless
Mounting :	Rear mounting poles (15-M3)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	1.91/2.01Kgs (Typ./Max.)	-	Glare (Haze 0%), Hard coating (3H)

LG Display LM238WF2-SSG1 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type (Bottom side)	15S3P	3 strings	30K(Min.)	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	45.3±3V		85/90mA (Typ./Max.)			11.6/12.2W (Typ./Max.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :		No				Connector
Interface Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Interface Detail :	JST	BM06B-SHJS-TB(HF)	1.0 mm	6 pins	1 pcs	BLE-6PINS-CCAANC

LG Display LM238WF2-SSG1 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	5.0V (Typ.)		410/510mA (Typ./Max.)			2.05/2.55W (Typ./Max.)
Interface Features :	Position	Signal				Type
Interface Features :		LVDS (2 ch, 8-bit)				Connector
Connector Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
Connector Detail :	UJU	IS100-L30O-C23	1.0 mm	30 pins	1 pcs	LVDS-30P2C8B-160B

LG Display LM238WF2-SSG1 Packing Features

Package Box :	Quantity	Weight	Box Size
Package Box :	10 pcs / box	-	635×370×400 mm (L×W×H)
