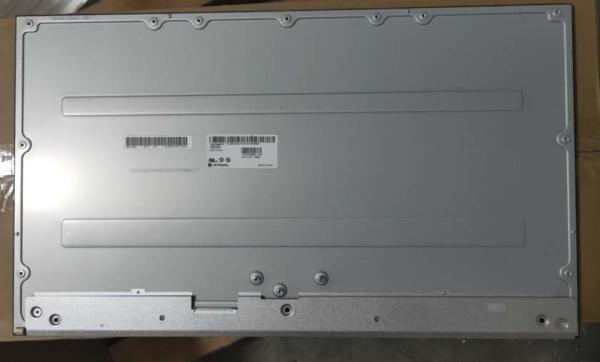

27.0" 81PPI Square Tft Screen 1920×1080 300cd/M2 LM270WF7-SSD2

Ask Lasest Price
Brand Name :	LG DISPLAY
Model Number :	LM270WF7-SSD2
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	350PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

27.0" 81PPI Square Tft Screen 1920×1080 300cd/M2 LM270WF7-SSD2

LG Display LM270WF7-SSD2 Application Details

Basic Info :	Panel Brand		Panel Model	LM270WF7-SSD2
	Diagonal Size	27.0"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	LM270WF7 (SS)(D2)
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C

LG Display LM270WF7-SSD2 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1080 [FHD]	Dot Pitch	0.1038×0.3114 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.3114×0.3114 mm (H×V) [81PPI]
Mechanical Size :	Display Area	597.888×336.312 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	607.1×354.1 mm (H×V)	Outline Depth	9.0/13.5 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style	3-side borderless
Holes & Brackets :	Rear mounting holes (11-M3)
Other Features :	Weight	3.12Kgs (Typ.)	Surface	Glare (Haze 0%), Hard coating (3H)

LG Display LM270WF7-SSD2 Optical Details

Basic Information :	Brightness	300 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	14 (Typ.)(G to G) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	69%	sRGB	93% coverage
	Adobe RGB	72% coverage	DCI-P3	72% coverage
	Rec.2020	52% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM270WF7-SSD2 Backlight Details

Back-light Features:	Lamp Shape	4 strings	Lamp Type	WLED	Life Time	30K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	17S4P	Position	Edge light type (Bottom side)
Lamp Electrical :	Voltage Input	50.7±3.4V		Current Input	75/80mA (Typ./Max.)
Lamp Electrical :	Consumption	15.2/16.2W (Typ./Max.)
Interface Features :	Type	Connector	Position		Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :	JST	BM06B-SHJS-TB(HF)	1.0 mm	6 pins	1 pcs	BLE-6PINS-CCAACC

LG Display LM270WF7-SSD2 Interface Details

Signal Systerm :	LVDS (2 ch, 8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	5.0V (Typ.)		Current Input	470/585mA (Typ./Max.)
Signal Electrical :	Consumption	2.35/2.92W (Typ./Max.)
Interface Features :	Type	Connector	Position	-
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	UJU	IS100-L30O-C23	1.0 mm	30 pins	1 pcs	LVDS-30P2C8B-170C

LG Display LM270WF7-SSD2 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	10 pcs / box	-	365×710×448 mm

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
