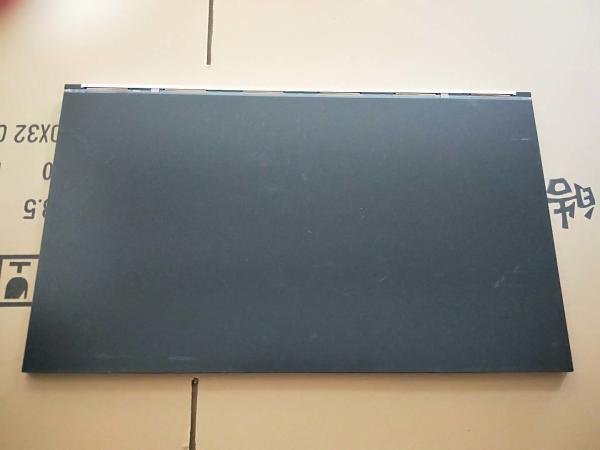

102PPI 21.5" NEC TFT Display 250cd/m2 LM215WF9-SSA3 89/89/89/89 (Typ.)(CR≥10)

LG Display LM215WF9-SSA3 Application Details

Basic Info :	Panel Brand		Panel Model	LM215WF9-SSA3
	Diagonal Size	21.5"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	LM215WF9 (SS)(A1)
Reliability :	Operating Temp.	0 ~ 50 °C	Storage Temp.	-20 ~ 60 °C

LG Display LM215WF9-SSA3 Mechanical Details

Pixel Features :	Pixel Format	1920(RGB)×1080 [FHD]	Dot Pitch	0.08265×0.24795 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.24795×0.24795 mm (H×V) [102PPI]
Mechanical Size :	Display Area	476.064×267.786 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	484.5×284.4 mm (H×V)	Outline Depth	6.7/11.1 (Typ./Max.) mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	16:9 (H:V)	Shape Style	3-side borderless
Holes & Brackets :	Rear mounting holes (15-M3)
Other Features :	Weight	1.78/1.87Kgs (Typ./Max.)	Surface	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM215WF9-SSA3 Optical Details

Basic Information :	Brightness	250 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Optical Mode	IPS, Normally Black, Transmissive
	Viewing Direction	Symmetry	Response Time	14 (Typ.)(G to G) (ms)
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Color Numbers	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	72%	sRGB	94% coverage
	Adobe RGB	73% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM215WF9-SSA3 Backlight Details

Back-light Features:	Lamp Shape	4 strings	Lamp Type	WLED	Life Time	30K(Min.) (Hours)
Back-light Features:	Replacement	-	Amount	13S4P	Position	Edge light type (Bottom side)
Lamp Electrical :	Voltage Input	37.4±2.6V		Current Input	55/60mA (Typ./Max.)
Lamp Electrical :	Consumption	8.2/8.8W (Typ./Max.)
Interface Features :	Type	Connector	Position	-	Lamp Driver	No
Interface Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Interface Detail :		10035WS-H06D(HF)		6 pins	1 pcs	BLE-6PINS-CCAACC

LG Display LM215WF9-SSA3 Interface Details

Signal Systerm :	LVDS (2 ch, 8-bit)			Logic Voltage	-
Signal Electrical :	Voltage Input	5.0V (Typ.)		Current Input	0.6/0.74A (Typ./Max.)
Signal Electrical :	Consumption	3.0W (Typ.)
Interface Features :	Type	Connector	Position
Connector Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
Connector Detail :	UJU	IS100-L30O-C23	1.0 mm	30 pins	1 pcs	LVDS-30P2C8B-160B
