    LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : LG DISPLAY
    Model Number : LP116WH8-SPA1
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 500PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    LP116WH8-SPA1 LG Display 11.6" 1366(RGB)×768 250 cd/m² INDUSTRIAL LCD DISPLAY

    LG Display LP116WH8-SPA1 Application Details

    Basic Info :
    Panel Brand

    LP116WH8-SPA1Panel Model
    Diagonal Size
    Application

    a-Si TFT-LCD , LCMPanel Type
    Model Alias

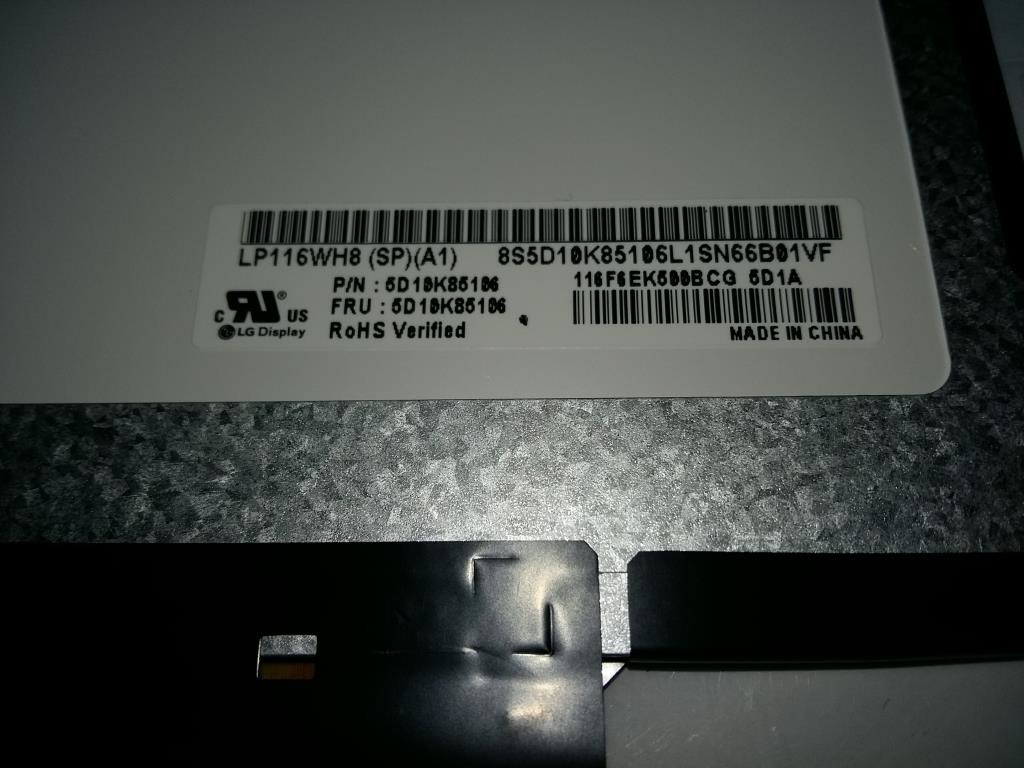

    LP116WH8 (SP)(A1), LGD0500
    Reliability :
    Operating Temp.
    0 ~ 50 °C
    Storage Temp.
    -20 ~ 60 °C

    LG Display LP116WH8-SPA1 Mechanical Details

    Pixel Features :
    Pixel Format
    1366(RGB)×768, WXGA
    Dot Pitch
    0.0625×0.1875 mm (H×V)
    Configuration
    RGB Vertical Stripe
    Pixel Pitch
    0.1875×0.1875 mm (H×V) [135PPI]
    Mechanical Size :
    Display Area
    256.125×144 mm (H×V)
    Bezel Area
    260.15×147.5 mm (H×V)
    Outline Dim.
    278×168 mm (H×V)
    Outline Depth
    3.0/3.2 (Typ./Max.) mm
    Outline Features :
    Form Factor
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio
    16:9 (H:V)
    Shape Style
    Slim (PCBA Flat, T≤3.2mm)
    Touch Screen :
    Touch Points
    10 points
    TP Signal
    I²C
    TP Controller
    With touch controller
    Touchscreen
    In-Cell Touch
    Holes & Brackets :
    Face mounting holes (4 pcs) on left, right slugs
    Other Features :
    Weight
    200g (Max.)
    Surface
    Glare (Haze 0%)

    LG Display LP116WH8-SPA1 Optical Details

    Basic Information :
    Brightness
    250 cd/m² (Typ.)
    Contrast Ratio
    800:1 (Typ.) (Transmissive)
    Viewing Angle
    85/85/85/85 (Typ.)(CR≥10)
    Optical Mode
    IPS, Normally Black, Transmissive
    Viewing Direction
    Symmetry
    Response Time
    35 (Typ.)(Tr+Td) ms
    Color Performance :
    Chromaticity
    Wx:0.313; Wy:0.329
    Color Numbers
    262K (6-bit)
    Color Temperature
    6485K
    Uniformity
    1.40/1.60 (Typ./Max.)(13 points)
    1931 Color Gamlt :
    NTSC Ratio
    48%
    sRGB
    68% coverage
    Adobe RGB
    51% coverage
    DCI-P3
    50% coverage
    Rec.2020
    36% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    LG Display LP116WH8-SPA1 Backlight Details

    Back-light Features :
    Lamp Type
    WLED
    Amount
    -
    Life Time
    15K(Min.) (Hours)
    Replacement
    -
    Lamp Shape
    -
    Position
    Edge light type
    Interface Features :
    Type
    Included in panel signal interface
    Position
    -
    Lamp Driver
    With LED Driver
    Driver Electrical :
    Voltage Input
    5.0/12.0/21.0V (Min./Typ./Max.)
    Current Input
    150/153mA (Typ./Max.)
    Consumption
    1.80/1.83W (Typ.)

    LG Display LP116WH8-SPA1 Interface Detail

    Signal Systerm :
    eDP (1 Lane)
    Logic Voltage
    -
    Signal Electrical :
    Voltage Input
    3.3V (Typ.)
    Current Input
    333/378mA (Typ./Max.)
    Consumption
    1.1/1.25W (Typ./Max.)
    Interface Features :
    Type
    Connector
    Position
    Connector Detail :
    Brand
    Model
    Pin Pitch
    Pins
    Amount
    Configuration
    I-PEX
    0.4 mm
    40 pins
    1 pcs

    LG Display LP116WH8-SPA1 Carton Details

    Package Carton :AmountNet WeightCarton Size (L×W×H)
    48 pcs / box-478×365×244 mm

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
