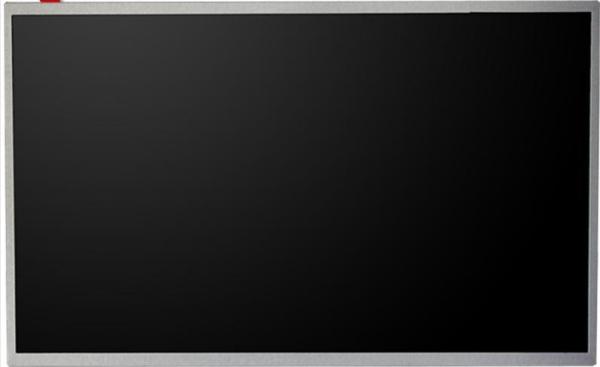

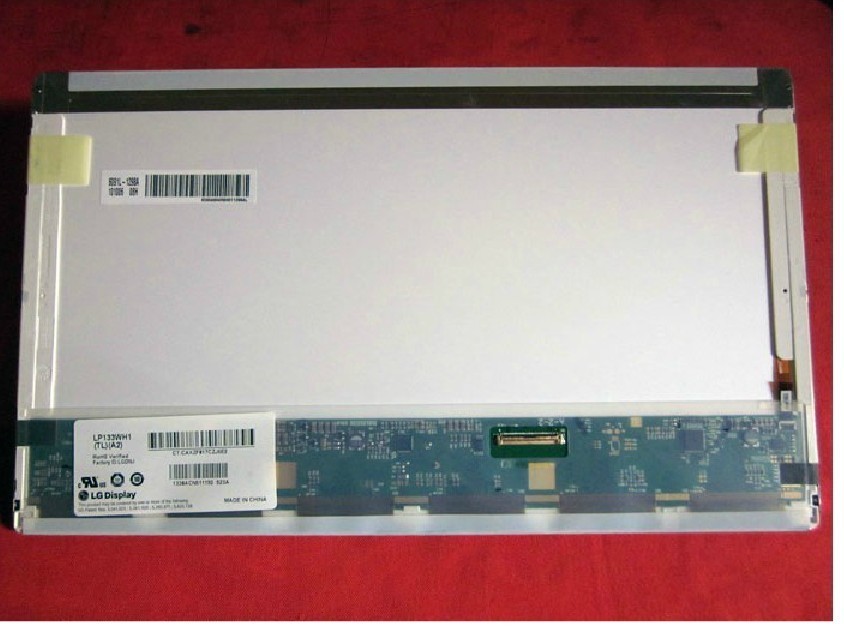

LP133WH1-TLA1 LG Display 13.3" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LP133WH1-TLA1 Application Features

Basic Information :	Brand Name	Model Name 1 Compatible	Type	Model Alias
Basic Information :		LP133WH1-TLA1	a-Si TFT-LCD , LCM	LP133WH1 (TL)(A1), LGDBC01
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LP133WH1-TLA1 Mechanical Features

Screen Size :	13.3"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1366(RGB)×768, WXGA	RGB Vertical Stripe	0.0716×0.2148 mm	0.2148×0.2148 mm [118PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	293.42×164.97 mm	299.5×168.4 mm	307.6×183.1 mm	5.2/5.5 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9	Landscape type	Wedge (PCBA Bent, T≥5.2mm)
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	350g (Max.)	-	Glare (Haze 0%), Hard coating (3H)
Holes & Brackets :	Side mounting holes (6-M2) on left, right bezel

LG Display LP133WH1-TLA1 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	200 cd/m² (Typ.)	TN, Normally White, Transmissive	300:1 (Min.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	40/40/10/30 (Min.)(CR≥10)	16 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6485K	262K (6-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	45%	64%	48%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	47%	34%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.40/1.60 (Typ./Max.)(13 points)

LG Display LP133WH1-TLA1 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	12K(Min.)	-	6 strings	-
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	With LED Driver			Included in panel signal interface		-
WLED Driver Electrical :	Input Voltage		Input Current			Power Consumption
WLED Driver Electrical :	7.0/12.0/20.0V (Min./Typ./Max.)		250mA (Typ.)			3.1/3.3W (Typ./Max.)

LG Display LP133WH1-TLA1 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		360/410mA (Typ./Max.)			1.0/1.2W (Typ./Max.)

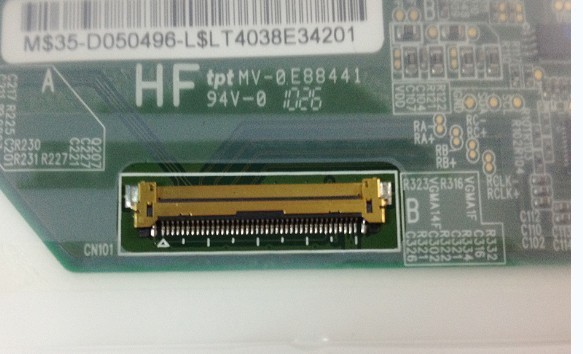

Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 6-bit)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	I-PEX	20455-040E-02	1 pcs	40 pins	0.5 mm	LVDS-40P1C6B-053A

LG Display LP133WH1-TLA1 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	30 pcs / box	-	430×378×268 mm (L×W×H)
