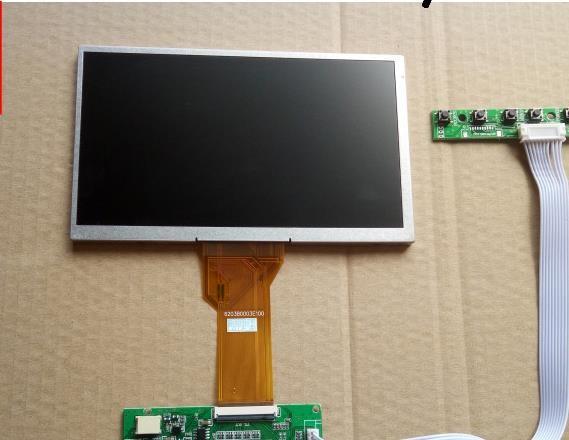

LD070WS2-SL01 LG Display 7.0" 1024(RGB)×600 400 cd/m² INDUSTRIAL LCD DISPLAY

LG Display LD070WS2-SL01 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LD070WS2-SL01	a-Si TFT-LCD , LCM	LD070WS2 (SL)(01)
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-20 ~ 60 °C	-30 ~ 70 °C

LG Display LD070WS2-SL01 Mechanical Features

Screen Size :	7.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1024(RGB)×600, WSVGA	RGB Vertical Stripe	0.050×0.150 mm	0.150×0.150 mm [169PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	153.6×90 mm	156.1×92.5 mm	162.8×102.9 mm	2.7/5.25 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	17:10	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	100g (Max.)	-	Hard coating
Holes & Brackets :	Without

LG Display LD070WS2-SL01 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	400 cd/m² (Typ.)	IPS, Normally Black, Transmissive	800:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	85/85/85/85 (Typ.)(CR≥10)	40 (Max.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6551K	16.7M (6-bit + Hi-FRC)	X:0.310; Y:0.340
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	53%	72%	55%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	55%	39%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.18/1.34 (Typ./Max.)(9 points)

LG Display LD070WS2-SL01 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	-	7S3P	3 strings	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	21/23.1V (Typ./Max.)		20/21mA (Typ./Max.)			1.26/1.39W (Typ./Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Included in panel signal interface		-

LG Display LD070WS2-SL01 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		212/250mA (Typ./Max.)			0.7/0.9W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	LVDS (1 ch, 8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	HRS	FH12-30S-0.5SH	1 pcs	30 pins	0.5 mm	LVDS-30P1C8B-290A

LG Display LD070WS2-SL01 Electronics Features

Refresh Rate :	60Hz
Reverse Scan :	No
Power Consumption :	1.96W (Typ.)
