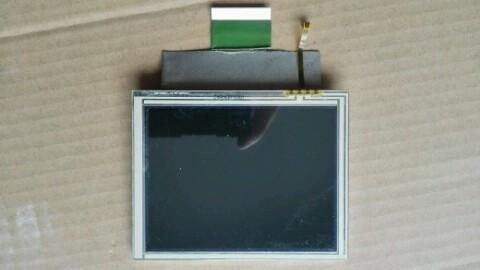

LB040Q03-TD01 LG. LCD 4.0" 320(RGB)×240 200 cd/m² INDUSTRIAL LCD DISPLAY

Ask Lasest Price
Brand Name :	LG. LCD
Model Number :	LB040Q03-TD01
Certification :	ISO9001
Payment Terms :	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :	500PCS
Delivery Time :	1-2 DAYS

Add to Cart

Product Details
Company Profile

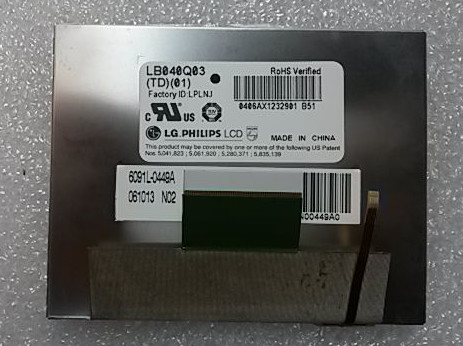

LB040Q03-TD01 LG. LCD 4.0" 320(RGB)×240 200 cd/m² INDUSTRIAL LCD DISPLAY

LG. LCD LB040Q03-TD01 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		LB040Q03-TD01	a-Si TFT-LCD , LCM	LB040Q03 (TD)(01)
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-20 ~ 70 °C	-30 ~ 80 °C	2.0G (19.6 m/s²)

LG. LCD LB040Q03-TD01 Mechanical Features

Screen Size :	4.0"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	320(RGB)×240, QVGA	RGB Vertical Stripe	0.085×0.255 mm	0.255×0.255 mm [99PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	81.6×61.2 mm	85.0×64.6 mm	96×75.6 mm	3.49±0.3 mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	50/60g (Typ./Max.)	-	Antiglare
Holes & Brackets :	No mounting hole

LG. LCD LB040Q03-TD01 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	200 cd/m² (Typ.)	TN, Normally White, Transmissive	300:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	6 o'clock	40/40/20/40 (Typ.)(CR≥10)	30 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	6066K	16.7M (8-bit)	X:0.320; Y:0.340

LG. LCD LB040Q03-TD01 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	-	6S1P	1 string	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	20V (Typ.)		20mA (Typ.)			400mW (Typ.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Included in panel signal interface		-

LG. LCD LB040Q03-TD01 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V/4.8V (Typ.)(VDD/AVDD)		-			-
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel RGB (1 ch, 8-bit) + SPI			FPC		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :			1 pcs	54 pins	0.5 mm

LG. LCD LB040Q03-TD01 Electronics Features

Reverse Scan :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
